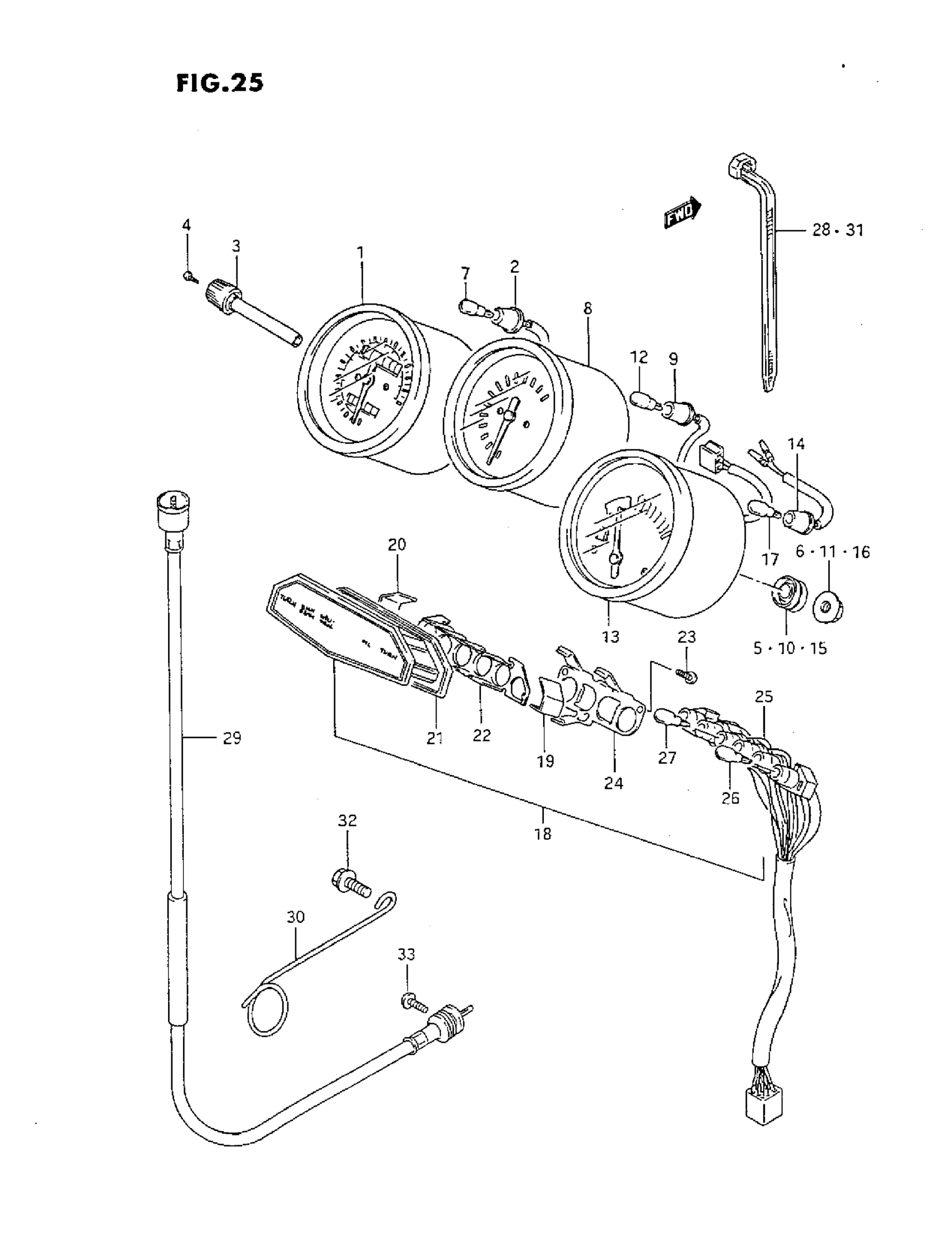

Suzuki GSX600F (1993) SPEEDOMETER (J) Diagram

#

Description
Price

1

SPEEDOMETER This part replaces 34100-19C00.

34100-19C20

Unavailable

2

SOCKET

34171-19C00

Unavailable

3

KNOB, TRIP

34124-19C00

$17.28

4

SCREW, TRIP KNOB This part replaces 34184-14A00.

34184-12D00

$2.93

5

CUSHION

34189-30921

$3.41

6

NUT (M6) This part replaces 34185-19C00.

09159-06076

$2.81

7

BULB (12V, 3W)

09471-12085

$5.01

8

TACHOMETER This part replaces 34200-19C00.

34200-19C11

Unavailable

9

SOCKET

34171-19C10

Unavailable

10

CUSHION

34189-30921

$3.41

11

NUT (M6) This part replaces 34185-19C00.

09159-06076

$2.81

12

BULB (12V, 3W)

09471-12085

$5.01

13

FUEL METER This part replaces 34300-19C00.

34300-19C20

Unavailable

14

SOCKET

34171-19C10

Unavailable

15

CUSHION

34189-30921

$3.41

16

NUT (M6) This part replaces 34185-19C00.

09159-06076

$2.81

17

BULB (12V, 3W)

09471-12085

$5.01

18

NO DESCRIPTION AVAILABLE This part replaces 36380-19C00.

36380-19C11

Unavailable

19

PLATE, TURN RH

36383-27A00

Unavailable

20

PLATE, TURN LH

36384-27A00

Unavailable

21

CUSHION, CASE

34196-19C00

Unavailable

22

PLATE, PILOT LAMP

36382-27A00

Unavailable

23

SCREW This part replaces 36387-27A00.

36457-45100

Unavailable

24

LOCK PLATE

34197-19C00

Unavailable

25

SOCKET

34171-19C20

Unavailable

26

BULB (12V, 1.7W)

09471-12100

$4.13

27

BULB (12V, 3W)

09471-12085

$5.01

28

CLAMP, METER LEAD

09407-14403

$2.26

29

CABLE,SPEEDOMET This part replaces 34910-19C01.

34910-19C02

$31.75

30

CLAMP, CABLE

34938-45100

$6.57

31

CLAMP, CABLE

09407-14403

$2.26

32

BOLT This part replaces 01517-06108.

01550-06107

$2.80

33

SCREW

02112-05164

$2.63
