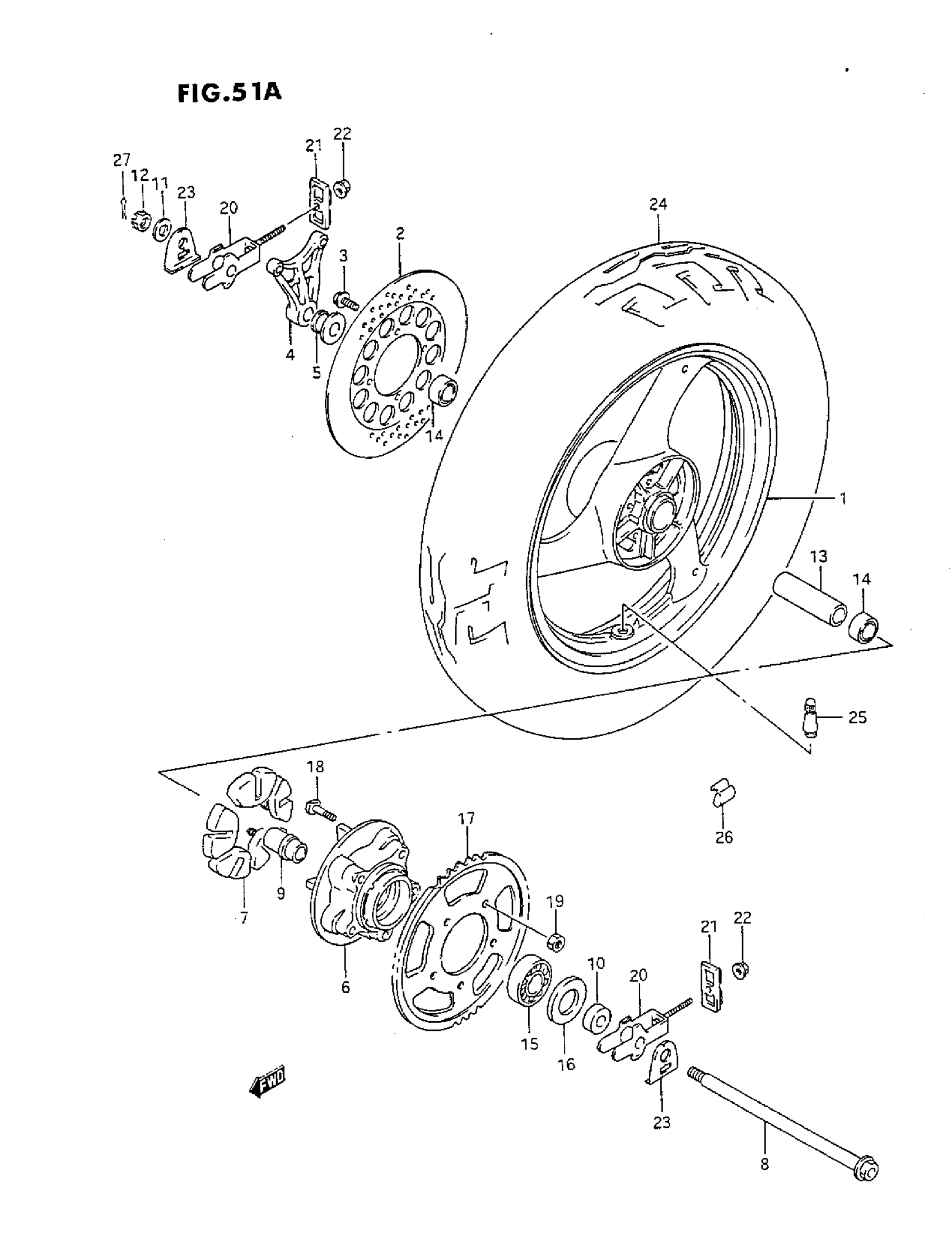

Suzuki GSX600F (1993) REAR WHEEL (K/L/M/N/P/R) Diagram

#

Description
Price

1

WHEEL,REAR,MT3. | MODEL K/L, FOR 28V, 33J This part replaces 64111-34C00-0FR.

64111-34C01-12R

Unavailable

1

WHEEL, REAR (MT3.50X17) WHITE | MODEL K, FOR 0FX This part replaces 64111-34C00-38L.

64111-34C00-28W

Unavailable

1

WHEEL,REAR,MT3. | MODEL M, FOR 28V, 33J This part replaces 64111-34C00-12R.

64111-34C01-12R

Unavailable

1

WHEEL, REAR (MT3.50X17) PURPLE | MODEL N, FOR 33J MODEL P, FOR 36X MODEL R, FOR 1T

64111-34C00-1DR

Unavailable

1

WHEEL, REAR (MT3.50X17) PINK | MODEL N, FOR 19A

64111-34C00-1LS

Unavailable

1

WHEEL, REAR (MT3.50X17) SILVER | MODEL P, FOR 1 MW

64111-34C00-12Z

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL R, FOR 33J This part replaces 64111-34C00-1TU.

64111-34C01-1TU

Unavailable

2

DISC, REAR BRAKE (BLACK) | MODEL K/L/M/N This part replaces 69211-34C00.

69211-01D00

Unavailable

2

DISC, REAR BRAKE (BLACK) | MODEL P/R

69211-01D00

Unavailable

3

BOLT | MODEL K/L/M/N/P This part replaces 07120-08305.

07120-0830A

$3.86

3

BOLT | MODEL R

09106-08131

$3.55

4

BRACKET, CALIPER

69721-43400

Unavailable

5

SPACER, REAR AXLE, RH

64740-19C00

$22.22

6

DRUM, REAR SPROCKET

64611-17C01

Unavailable

7

ABSORBER,RR HUB SHOCK

64651-27A01

$9.78

8

NO DESCRIPTION AVAILABLE This part replaces 64711-19C00.

64711-19C0V

Unavailable

9

RETAINER, DRUM

64733-34C00

$29.10

10

SPACER, REAR AXLE, LH

64751-34C00

Unavailable

11

WASHER (17X30X3.2) This part replaces 09160-17013.

09160-17050

$2.45

12

NUT, HUB | MODEL K/L/M/N/P This part replaces 08314-41168.

08314-4016A

$3.79

12

NUT, HUB | MODEL R This part replaces 08314-40163.

08314-4016A

$3.79

13

SPACER, BEARING

09180-17067

$23.05

14

BEARING

08143-63037

$22.58

15

BEARING

09262-25073

$25.92

16

SEAL,OIL (35X62X8)

09285-35001

$10.19

17

SPROCKET, REAR (NT:46) | MODEL K/L/M

64511-20C00

Unavailable

17

SPROCKET, REAR (NT:45) | MODEL N/P/R This part replaces 64511-20C20.

64511-20C21

$117.33

18

BOLT

09119-10037

$4.32

19

NUT

08319-31107

$2.73

20

ADJUSTER, CHAIN (WHITE) | MODEL K/L/M/N This part replaces 61410-20C00.

61410-20C02

Unavailable

20

ADJUSTER, CHAIN (WHITE) | MODEL N/P/R

61410-20C02

Unavailable

21

PLATE, GUIDE (BLACK) | MODEL K/L/M/N

61421-20C00

Unavailable

21

PLATE, GUIDE (WHITE) | MODEL N/P/R

61421-20C01

$10.88

22

NUT | MODEL K/L/M/N This part replaces 08319-31085.

08319-3108A

$2.32

22

NUT | MODEL N/P/R

08319-31087

$2.32

23

WASHER, CHAIN ADJUSTER

61445-20C01

$7.37

24

TIRE, T/L REAR (140/80 V17) (DUNLOP)

65110-19C10

Unavailable

25

VALVE ASSY, WHEEL RIM | MODEL K/L/M ->43130-78030 This part replaces 43130-75150.

43130-78030

$9.25

25

VALVE ASSY, WHEEL RIM

43130-78030

$9.25

25

VALVE ASSY, WHEEL RIM | MODEL N/P/R ->43130-24A11

43130-24A00

$8.85

25

VALVE ASSY, WHEEL RIM (TR412) This part replaces 43130-24A11.

43130-24A00

$8.85

26

BALANCER (10G) | 0-3, U.R.

55411-00A00

$1.49

26

BALANCER, WHEEL NO.2 | 0-3, U.R. This part replaces 55412-00A00.

55412-17G00

$7.05

26

BALANCER (30G) | 0-3, U.R. This part replaces 55413-00A00.

55413-00A01

Unavailable

27

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49
