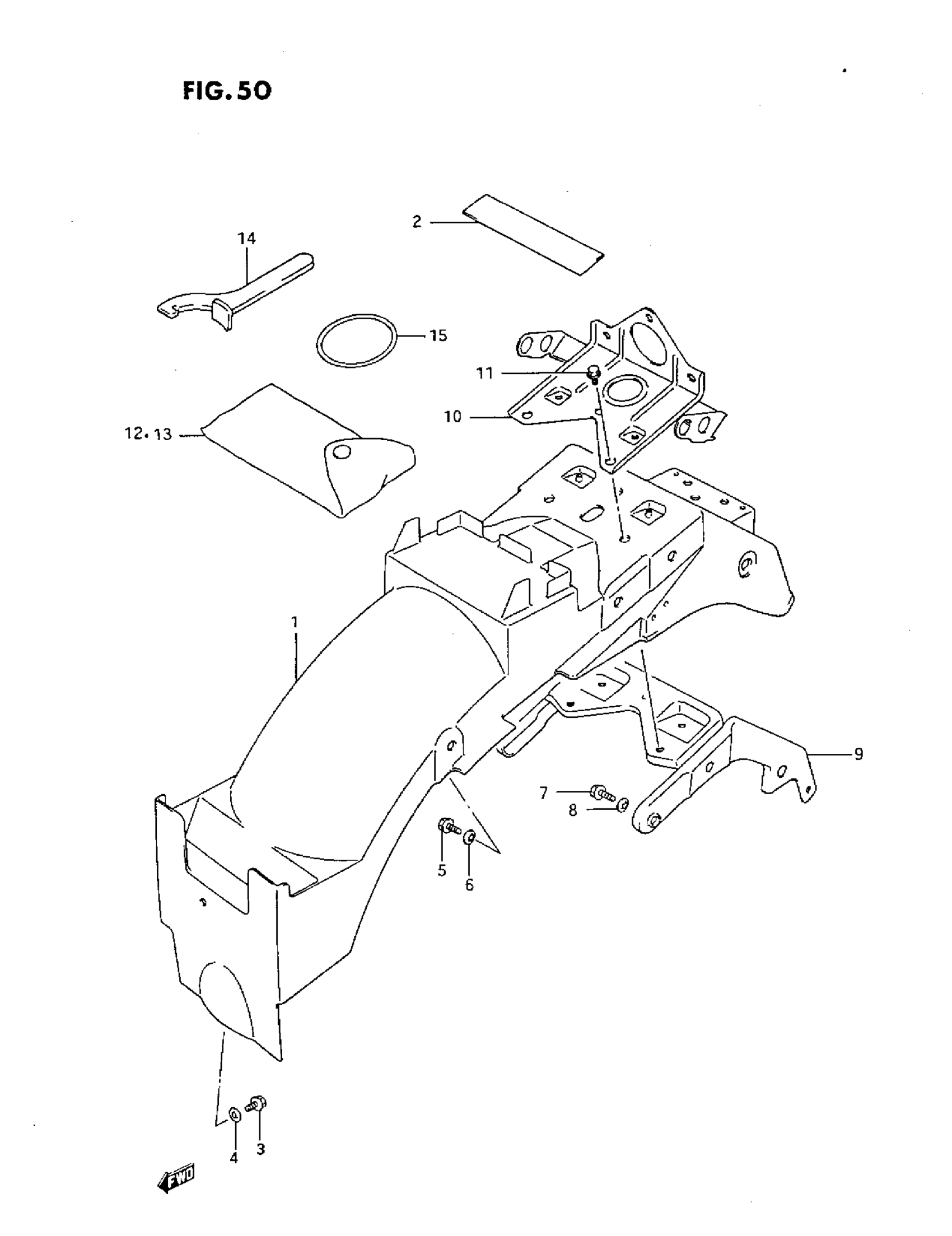

Suzuki GSX600F (1993) REAR FENDER Diagram

#

Description
Price

1

BODY, REAR FENDER

63111-19C00

Unavailable

2

CUSHION, FENDER

63191-19C00

Unavailable

3

BOLT | MODEL J/K/L/M/N/P This part replaces 01517-06106.

01550-0610A

$1.97

3

BOLT | MODEL R This part replaces 01550-06103.

01550-0610A

$1.97

4

WASHER

09169-06037

$2.45

5

BOLT | MODEL J/K/L/M/N/P This part replaces 01517-06206.

01550-0620A

$1.97

5

BOLT | MODEL R This part replaces 01550-06203.

01550-0620A

$1.97

6

WASHER

09169-06037

$2.45

7

BOLT | MODEL J/K/L/M/N/P This part replaces 01517-06206.

01550-0620A

$1.97

7

BOLT | MODEL R This part replaces 01550-06203.

01550-0620A

$1.97

8

WASHER

09169-06056

Unavailable

9

REINFORCEMENT, REAR FENDER

63120-19C00

Unavailable

10

BRACKET, LAP

63460-19C01

Unavailable

11

BOLT, CLAMP | MODEL J/K/L/M/N/P This part replaces 01517-06126.

01550-0612A

$1.97

11

BOLT, CLAMP | MODEL R This part replaces 01550-06123.

01550-0612A

$1.97

12

TOOL ASSY | MODEL J ->09800-21017 This part replaces 09800-20006.

09800-21017

$76.62

12

TOOL ASSY | MODEL K/L/M/N/P ->09800-21017 ->09822-00005 This part replaces 09800-20015.

09800-21017

$76.62

13

TOOL ASSY | MODEL R

09800-21017

$76.62

14

CLAMP, WRENCH | MODEL R

09822-00005

$15.16

15

O RING(D:3.5,ID This part replaces 09280-62001.

09280-61004

$2.60
