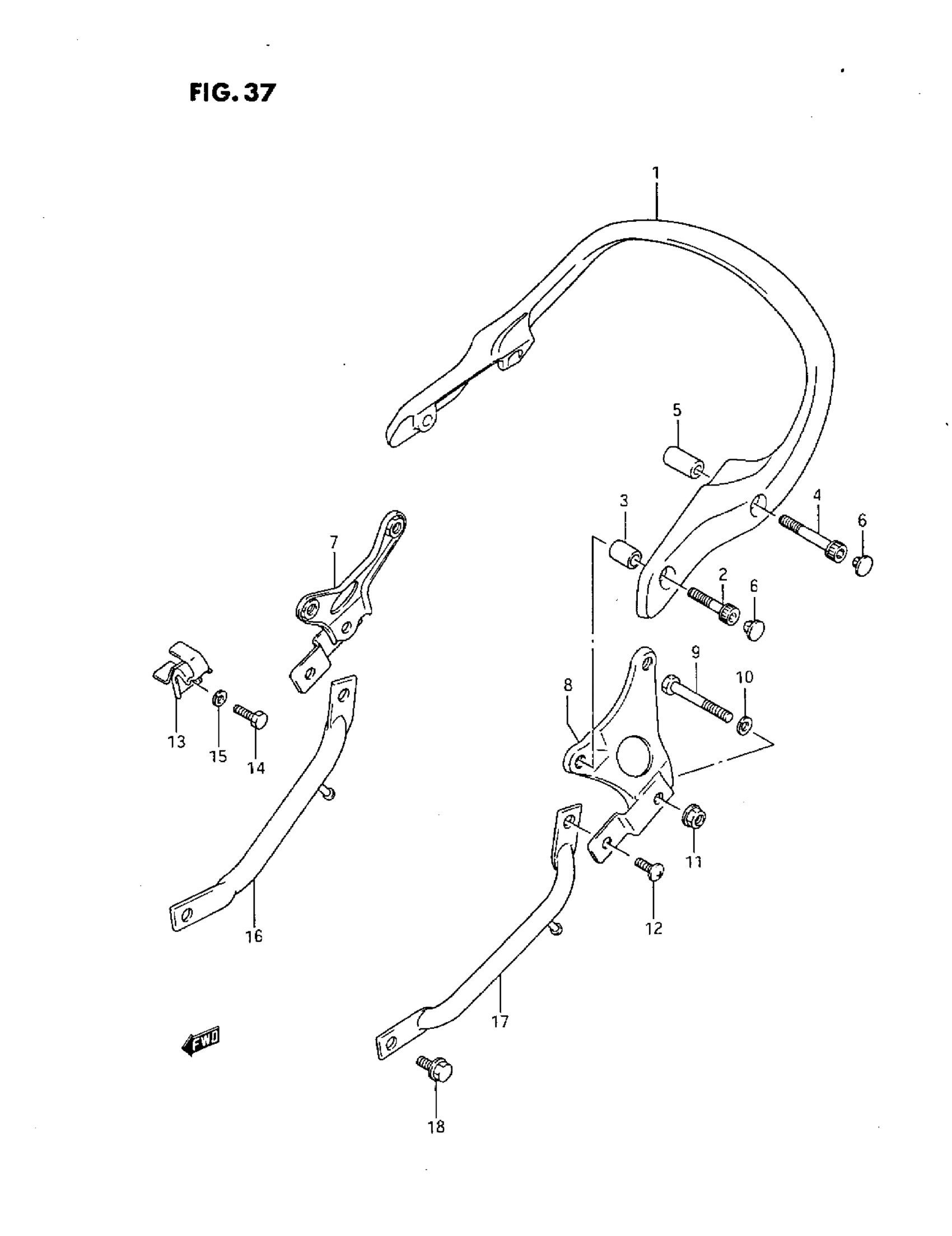

Suzuki GSX600F (1993) PILLION RIDER HANDLE Diagram

#

Description
Price

1

HANDLE, PILLION RIDER (BLACK) | FOR 07P, 28V This part replaces 46211-19C00-37W.

46211-19C00-019

Unavailable

1

HANDLE, PILLION RIDER (BLACK) | FOR 38K, 0FX This part replaces 46211-19C00-39N.

46211-19C00-019

Unavailable

1

HANDLE, PILLION RIDER (BLACK) | FOR 33J, MODEL N/P/R

46211-19C00-019

Unavailable

2

BOLT | MODEL J/K/L/M/N This part replaces 07110-08355.

07130-0835B

$4.60

2

BOLT | MODEL P/R This part replaces 07110-08358.

07130-08357

$3.18

3

SPACER, FRONT (8.5X14X21.50) This part replaces 09180-08125.

09180-08205

$3.49

4

BOLT | MODEL J/K/L/M/N This part replaces 07110-08555.

07130-0855B

$4.77

4

BOLT (8X55) | MODEL P/R This part replaces 07110-08558.

07130-08557

$4.77

5

SPACER (8.5X14X28) This part replaces 09180-08136.

09180-08206

$5.75

6

CAP

09250-06004

$1.49

7

BRACKET, PILLION HANDLE RH

46220-19C01

Unavailable

8

BRACKET, PILLION HANDLE LH

46230-19C01

Unavailable

9

BOLT | MODEL J/K/L/M This part replaces 01107-08555.

01500-0855B

$3.49

9

BOLT | MODEL N/P This part replaces 01137-08555.

01570-0855B

$4.32

9

BOLT | MODEL R This part replaces 01570-08553.

01570-0855B

$4.32

10

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

11

NUT | MODEL J/K/L/M/N This part replaces 08316-26085.

08316-2008A

$2.70

11

NUT | MODEL P/R This part replaces 08316-26088.

08316-20087

$2.77

12

SCREW | MODEL J/K/L/M/N This part replaces 02142-06205.

02142-0620A

$1.49

12

SCREW | MODEL P/R

02142-06207

$1.49

13

HOLDER, HELMET This part replaces 95720-19C00.

95720-20C00

Unavailable

14

BOLT, GEAR SHIFT LINK | MODEL J This part replaces 01107-06205.

01500-0620A

$1.78

14

BOLT | MODEL K/L/M/N/P This part replaces 01137-06205.

01570-0620A

$2.19

14

BOLT | MODEL R This part replaces 01570-06203.

01570-0620A

$2.19

15

LOCK WASHER | MODEL J This part replaces 08321-21064.

08321-0106A

$1.84

16

GRIP, REAR RH | MODEL J This part replaces 43970-19C00.

43970-19C02

Unavailable

16

GRIP, REAR RH | MODEL K/L/M/N/P/R This part replaces 43970-19C01.

43970-19C02

Unavailable

17

GRIP, REAR LH | MODEL J This part replaces 43980-19C00.

43980-19C02

Unavailable

17

GRIP, REAR LH | MODEL K/L/M/N/P/R This part replaces 43980-19C01.

43980-19C02

Unavailable

18

BOLT (8X16) | MODEL J/K/L/M/N/P This part replaces 01517-08165.

01550-0816A

$2.32

18

BOLT (8X16) | MODEL R This part replaces 01550-08163.

01550-0816A

$2.32
