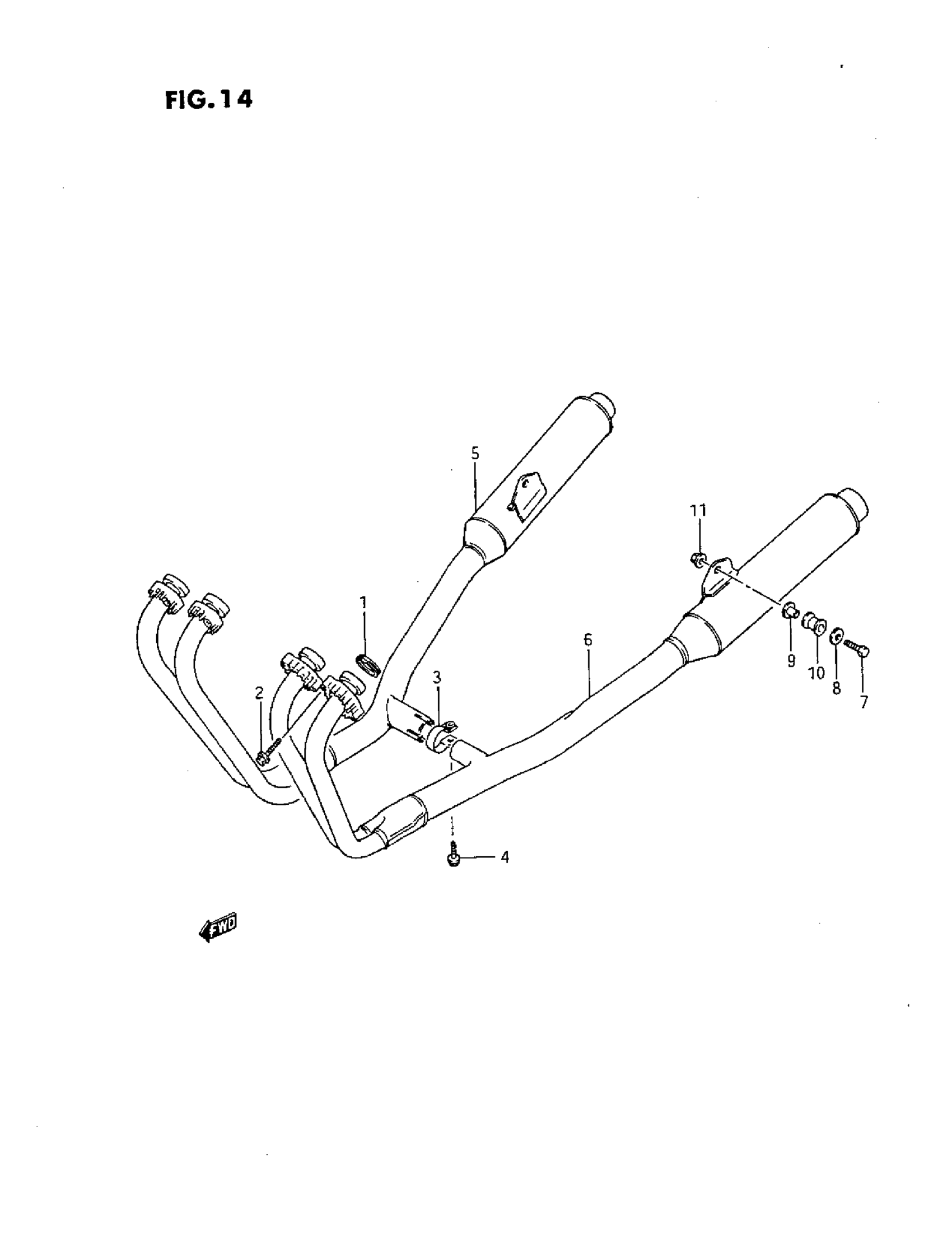

Suzuki GSX600F (1993) MUFFLER Diagram

#

Description
Price

1

.GASKET,EXHAUST | MODEL J/K/L/M This part replaces 14181-05020.

14181-18C00

$7.22

1

.GASKET,EXHAUST | MODEL N/P/R

14181-18C00

$7.22

2

BOLT | MODEL J/K/L/M/N/P This part replaces 07120-08355.

07120-0835B

$4.58

2

BOLT | MODEL R This part replaces 07120-08353.

07120-0835B

$4.58

3

CLAMP

14772-19C00

Unavailable

4

BOLT | MODEL J/K/L/M/N/P This part replaces 01517-06254.

01550-0625A

$1.97

4

BOLT | MODEL R This part replaces 01550-06253.

01550-0625A

$1.97

5

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 14305-19C00-H01.

14305-19C21-H01

Unavailable

5

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 14305-43C00-H01.

14305-43C01-H01

Unavailable

5

MUFFLER ASSY, RH | MODEL L/M This part replaces 14305-44C10-H01.

14305-44C35-H01

Unavailable

5

MUFFLER ASSY, RH | MODEL N This part replaces 14305-44C11-H01.

14305-44C35-H01

Unavailable

5

MUFFLER ASSY, RH | MODEL P This part replaces 14305-44C12-H01.

14305-44C35-H01

Unavailable

5

MUFFLER ASSY, RH | MODEL R This part replaces 14305-44C34-H01.

14305-44C35-H01

Unavailable

6

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 14306-19C00-H01.

14306-19C21-H01

Unavailable

6

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 14306-43C00-H01.

14306-43C22-H01

Unavailable

6

MUFFLER ASSY, LH | MODEL L/M This part replaces 14306-44C10-H01.

14306-44C35-H01

Unavailable

6

MUFFLER ASSY, LH | MODEL N This part replaces 14306-44C11-H01.

14306-44C35-H01

Unavailable

6

MUFFLER ASSY, LH | MODEL P This part replaces 14306-44C12-H01.

14306-44C35-H01

Unavailable

6

MUFFLER ASSY, LH | MODEL R This part replaces 14306-44C34-H01.

14306-44C35-H01

Unavailable

7

BOLT (8X40) This part replaces 09103-08225.

09103-08256

$5.20

8

WASHER, EXHAUST SUPPORT | MODEL J/K/L/M/N/P This part replaces 09160-08057.

09160-08135

$2.35

8

WASHER (8.5X33X1.5) | MODEL R This part replaces 09160-08106.

09160-08146

$2.60

9

SPACER

09180-08152

$5.83

10

CUSHION

09320-12048

$5.11

11

NUT | MODEL J/K/L/M/N/P This part replaces 08316-26085.

08316-2008A

$2.70

11

NUT | MODEL R This part replaces 08316-20083.

08316-2008A

$2.70
