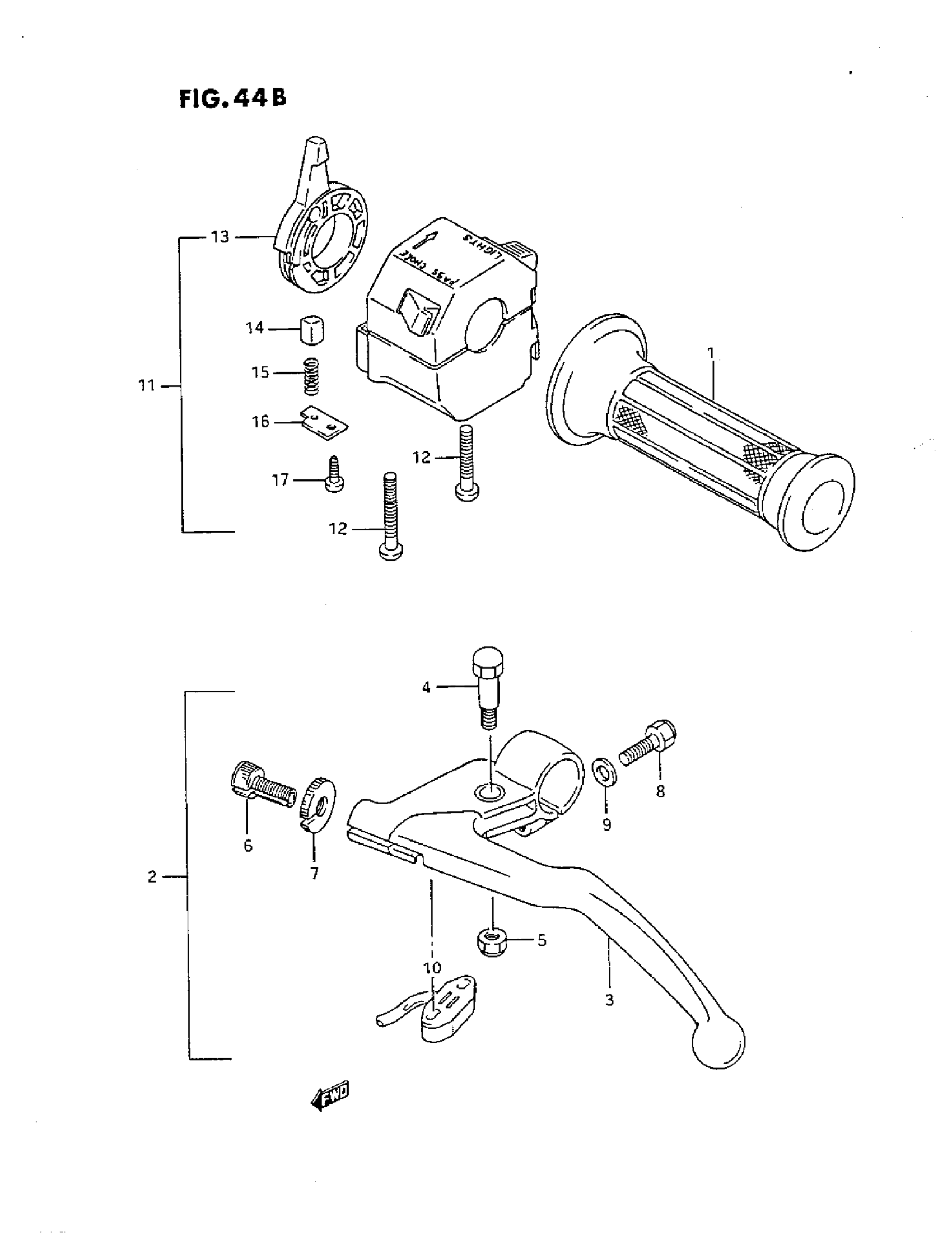

Suzuki GSX600F (1993) LEFT HANDLE SWITCH (K/L/M/N/P/R) Diagram

#

Description
Price

1

GRIP, LH

57211-49500

$13.95

2

LEVER ASSY, CLUTCH

57500-19C01

Unavailable

3

LEVER This part replaces 57620-19C01.

57620-27A31

$22.77

4

BOLT

57431-49110

$6.31

5

.NUT This part replaces 08319-21065.

08319-2106B

$2.32

6

AD3USTER

57441-44400

$6.28

7

NUT This part replaces 57442-44400.

57442-11010

$2.79

8

BOLT

01204-06204

$2.72

9

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

10

SWITCH ASSY, CLUTCH This part replaces 57560-08A00.

57560-18D10

Unavailable

11

NO DESCRIPTION AVAILABLE This part replaces 37400-47B30.

37400-47B32

Unavailable

12

.SCREW This part replaces 02112-05455.

02112-0545B

$2.26

13

LEVER, CHOCK This part replaces 37481-30B00.

37481-30B01

Unavailable

14

PIECE, SLIDE

37482-30B00

Unavailable

15

SPRING

37483-30B00

Unavailable

16

PLATE

37486-30B00

Unavailable

17

SCREW This part replaces 03511-04125.

03511-0412A

$1.49
