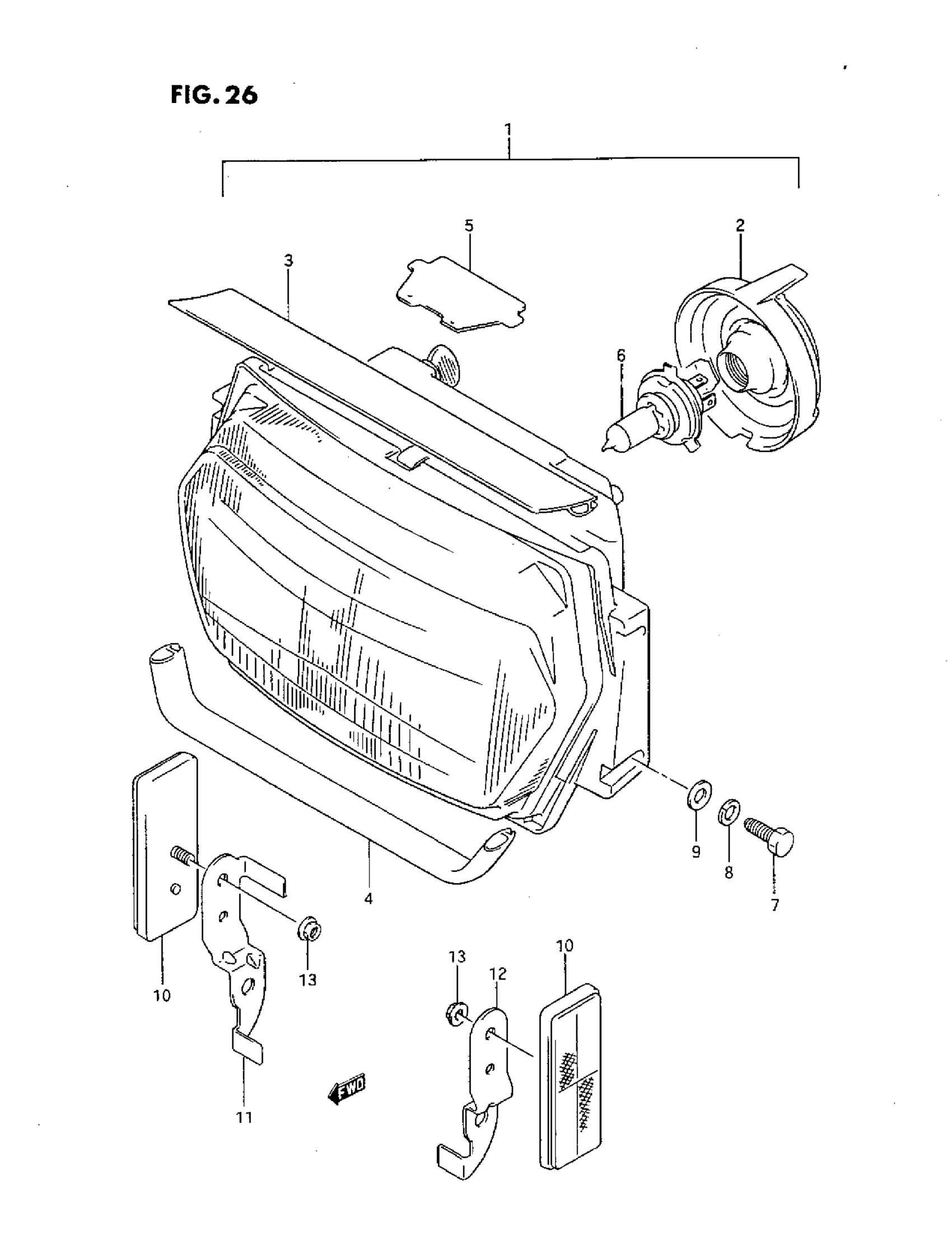

Suzuki GSX600F (1993) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY This part replaces 35100-19C10.

35100-20C10-999

Unavailable

2

SOCKET COVER

35173-48B00

Unavailable

3

GASKET

35242-19C00

Unavailable

4

GASKET

35243-19C00

Unavailable

5

GASKET

35244-19C00

Unavailable

6

BULB (12V, 60/55W)

09471-12060

$25.15

7

BOLT | MODEL J/K/L/M This part replaces 01107-06166.

01500-0616A

$1.78

7

BOLT | MODEL N/P This part replaces 01177-06166.

01580-0616A

$2.42

7

BOLT | MODEL R This part replaces 01580-06163.

01580-0616A

$2.42

8

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

9

.WASHER This part replaces 08322-21066.

08322-0106B

$2.26

10

REFLEX REFLECTOR, FR SIDE

35950-43431

$17.83

11

BRACKET, RH

35956-19C00

Unavailable

12

BRACKET, LH

35957-19C00

Unavailable

13

NUT | MODEL J/K/L/M/N/P This part replaces 08316-26055.

08316-2005A

$2.19

13

NUT | MODEL R This part replaces 08310-00053.

08310-0005A

$1.84
