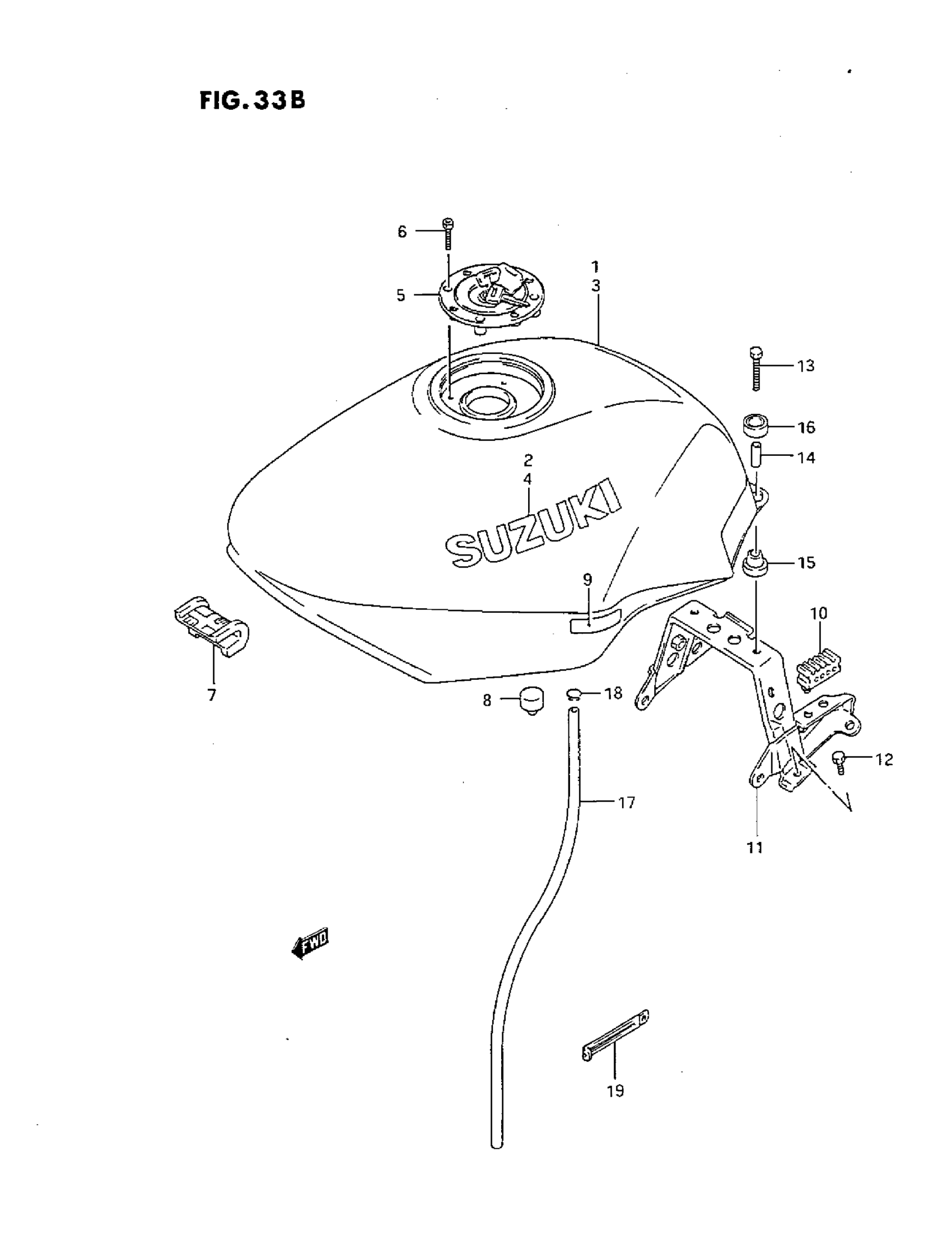

Suzuki GSX600F (1993) FUEL TAW (P/R) Diagram

TANK ASSY,FUEL | MODEL P This part replaces 44100-43C30-1MW.

44100-43C31-1MW

Unavailable

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 44100-43C30-36X.

44100-43C31-36X

Unavailable

NO DESCRIPTION AVAILABLE | MODEL P CALIFORNIA ONLY This part replaces 44100-43C60-1MW.

44100-43C61-1MW

Unavailable

NO DESCRIPTION AVAILABLE | MODEL P CALIFORNIA ONLY This part replaces 44100-43C60-36X.

44110-19C11-YD8

Unavailable

EMBLEM | MODEL P FOR 1MW This part replaces 68111-12C00-13L.

68111-12C30-13L

Unavailable

EMBLEM (PURPLE) | MODEL P FOR 36X

68111-12C00-1AP

Unavailable

NO DESCRIPTION AVAILABLE | MODEL R This part replaces 44100-21CE0-1TY.

44100-21CF1-1TY

Unavailable

NO DESCRIPTION AVAILABLE | MODEL R This part replaces 44100-21CE0-2AX.

44100-21CF1-2AX

Unavailable

NO DESCRIPTION AVAILABLE | MODEL R, CALIFORNIA ONLY This part replaces 44100-21CG0-1TY.

44100-21CG1-1TY

Unavailable

NO DESCRIPTION AVAILABLE | MODEL R, CALIFORNIA ONLY This part replaces 44100-21CG0-2AX.

44100-21CG1-2AX

Unavailable

EMBLEM | MODEL R FOR 1TY

68111-01D20-C2Y

Unavailable

EMBLEM | MODEL R FOR 2AX

68111-01D20-C2Z

Unavailable

CAP SET,FUEL TA This part replaces 44201-01831.

44201-01833

Unavailable

CAP SET, FUEL | CALIFORNIA ONLY This part replaces 44201-01841.

44201-01842

Unavailable

BOLT

09106-05017

$2.83

CUSHION, FUEL TANK FRONT

44511-19C00

Unavailable

CUSHION, FUEL TANK SIDE

09321-10011

$2.91

PROTECTOR, FUEL TANK

32851-10D00

$5.05

CUSHION, REAR BRACKET

45149-31300

$3.56

BRACKET, REAR

44550-19C00

Unavailable

BOLT This part replaces 09137-06017.

01570-0620A

$2.19

BOLT (6X30) This part replaces 09116-06078.

09116-06172

$2.50

SPACER This part replaces 09180-06072.

09180-06271

$2.35

CUSHION, REAR LOWER

09320-10038

$2.61

CUSHION, REAR UPPER

09320-14017

$2.35

HOSE, WATER DRAIN

44423-19C00

Unavailable

CLIP

09401-08402

$1.49

CLAMP This part replaces 09404-08405.

09404-08420

$3.16
