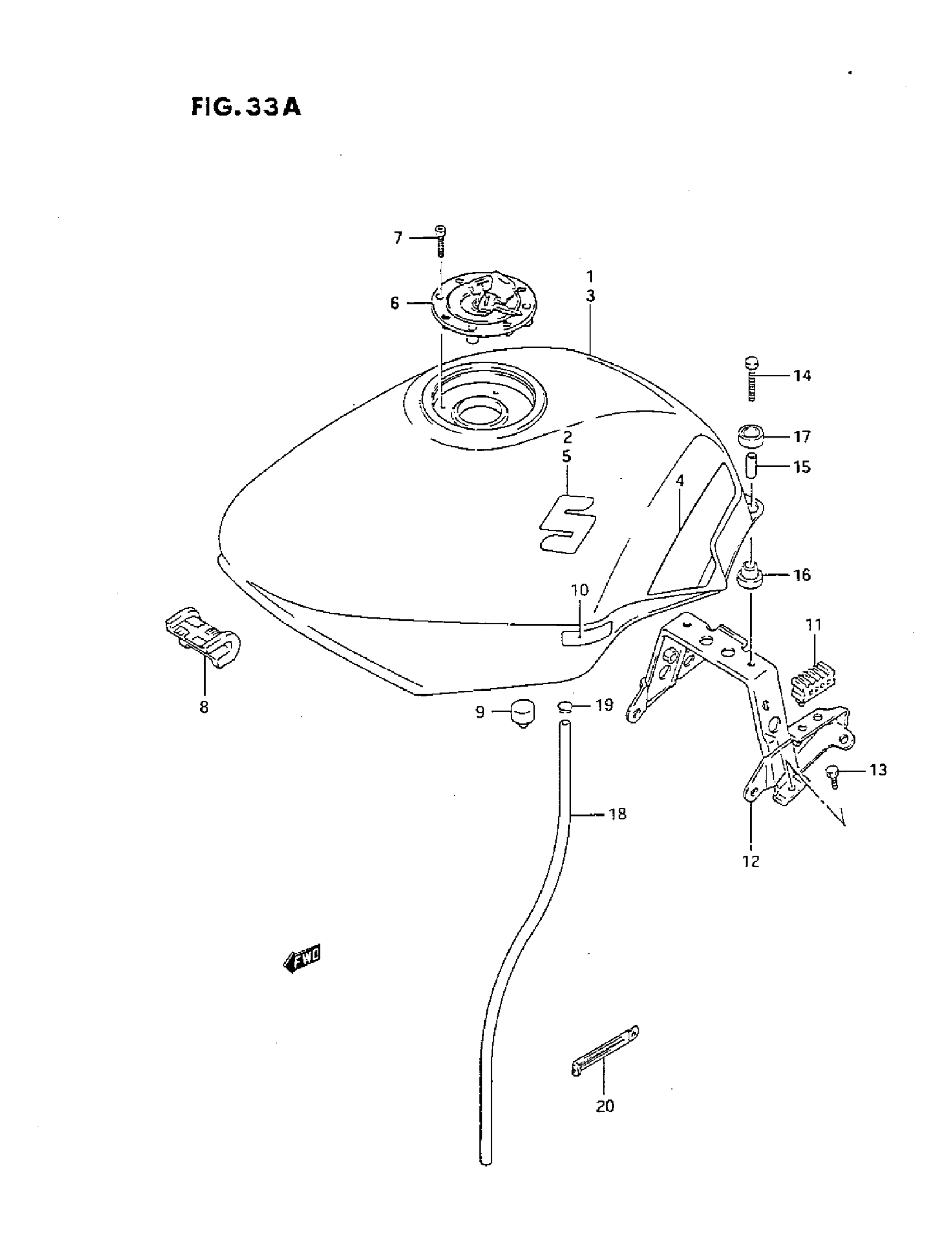

Suzuki GSX600F (1993) FUEL TANK (M/N) Diagram

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 44100-43C50-28V.

44110-19C22-YD8

Unavailable

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 44100-43C50-33J.

44100-43C51-33J

Unavailable

TANK ASSY, FUEL (RED) | CALIFORNIA ONLY, MODEL M

44100-43C10-28V

Unavailable

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY, MODEL M This part replaces 44100-43C10-33J.

44100-43C11-33J

Unavailable

EMBLEM (GRAY) | MODEL M

68111-19C10-17U

Unavailable

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 44100-21C70-19A.

44100-21C71-19A

Unavailable

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 44100-21C70-33J.

44100-21C71-33J

Unavailable

NO DESCRIPTION AVAILABLE | CALIF ORNIA ONLY, MODEL N This part replaces 44100-21C80-19A.

44110-19C11-YD8

Unavailable

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY, MODEL N This part replaces 44100-21C80-33J.

44110-19C11-YD8

Unavailable

TAPE SET, FUEL TANK | MODEL N FOR 19A

68110-20C21-K39

Unavailable

TAPE SET, FUEL TANK | MODEL N FOR 33J

68110-20C21-K41

Unavailable

EMBLEM (SILVER) | MODEL N

68111-19C10-13L

Unavailable

CAP SET,FUEL TA This part replaces 44201-01831.

44201-01833

Unavailable

CAP SET, FUEL | CALIFORNIA ONLY This part replaces 44201-01841.

44201-01842

Unavailable

BOLT

09106-05017

$2.83

CUSHION, FUEL TANK FRONT

44511-19C00

Unavailable

CUSHION, FUEL TANK SIDE

09321-10011

$2.91

PROTECTOR, FUEL TANK RH

44283-19C00

Unavailable

PROTECTOR, FUEL TANK LH

44293-19C00

Unavailable

CUSHION, REAR BRACKET

45149-31300

$3.56

BRACKET, REAR

44550-19C00

Unavailable

BOLT This part replaces 09137-06017.

01570-0620A

$2.19

BOLT (6X30) This part replaces 09116-06078.

09116-06172

$2.50

SPACER This part replaces 09180-06072.

09180-06271

$2.35

CUSHION, REAR LOWER

09320-10038

$2.61

CUSHION, REAR UPPER

09320-14017

$2.35

HOSE, WATER DRAIN

44423-19C00

Unavailable

CLIP

09401-08402

$1.49

CLAMP This part replaces 09404-08405.

09404-08420

$3.16
