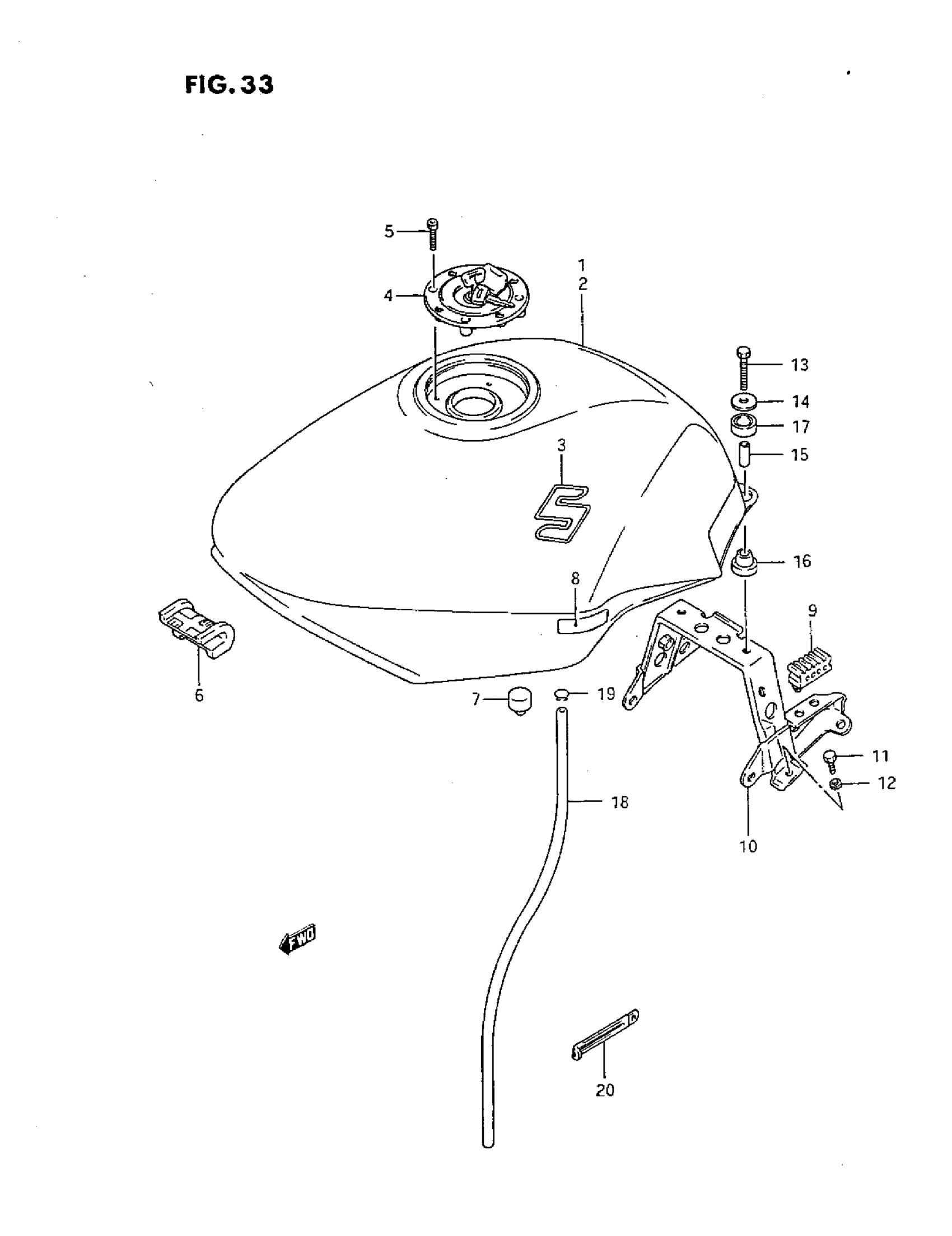

Suzuki GSX600F (1993) FUEL TANK (J/K/L) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 44110-19C00-07P.

44110-19C22-YD8

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 44110-19C00-38K.

44110-19C22-YD8

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL J, CALIFORNIA ONLY This part replaces 44110-19C10-07P.

44100-19C10-07P

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL J, CALIFORNIA ONLY This part replaces 44110-19C10-38K.

44110-19C11-YD8

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 44100-19C30-0FX.

44110-19C22-YD8

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL K/L This part replaces 44100-19C30-28V.

44110-19C22-YD8

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL L This part replaces 44100-19C30-33J.

44100-19C31-33J

Unavailable

2

TANK ASSY, FUEL (BLUE) | MODEL K, CALIFORNIA ONLY

44100-19C50-0FX

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL K/L, CALIFORNIA ONLY This part replaces 44100-19C50-28V.

44110-19C11-YD8

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL L, CALIFORNIA ONLY This part replaces 44100-19C50-33J.

44110-19C11-YD8

Unavailable

3

EMBLEM (SILVER) | MODEL K, FOR 0FX

68111-19C00-742

Unavailable

3

EMBLEM (BLACK) | MODEL K/L, FOR 28V

68111-19C00-019

Unavailable

3

EMBLEM (RED) | MODEL L, FOR 33J

68111-19C00-22P

Unavailable

4

CAP SET,FUEL TA | MODEL J/K This part replaces 44200-19C00-KEY.

44201-01833

Unavailable

4

CAP SET,FUEL TA | MODEL L This part replaces 44201-01831.

44201-01833

Unavailable

4

CAP SET, FUEL | CALIFORNIA ONLY, MODEL J/K This part replaces 44200-19C10-KEY.

44201-01842

Unavailable

4

CAP SET, FUEL | CALIFORNIA ONLY, MODEL L This part replaces 44201-01841.

44201-01842

Unavailable

5

BOLT

09106-05017

$2.83

6

CUSHION, FUEL TANK FRONT

44511-19C00

Unavailable

7

CUSHION, FUEL TANK SIDE

09321-10011

$2.91

8

PROTECTOR, FUEL TANK RH

44283-19C00

Unavailable

8

PROTECTOR, FUEL TANK LH

44293-19C00

Unavailable

9

CUSHION, REAR BRACKET

45149-31300

$3.56

10

BRACKET, REAR

44550-19C00

Unavailable

11

BOLT | MODEL J/K This part replaces 09128-06006.

09128-06057

$1.65

11

BOLT | MODEL L This part replaces 09137-06017.

01570-0620A

$2.19

12

LOCK WASHER | MODEL J/K This part replaces 08321-21066.

08321-0106A

$1.84

13

BOLT (6X30) This part replaces 09116-06078.

09116-06172

$2.50

14

WASHER, 6.5X24X1.6 This part replaces 09160-06072.

09160-06501

$1.86

15

SPACER This part replaces 09180-06072.

09180-06271

$2.35

16

CUSHION, REAR LOWER

09320-10038

$2.61

17

CUSHION, REAR UPPER

09320-14017

$2.35

18

HOSE, WATER DRAIN

44423-19C00

Unavailable

19

CLIP

09401-08402

$1.49

20

CLAMP This part replaces 09404-08405.

09404-08420

$3.16
