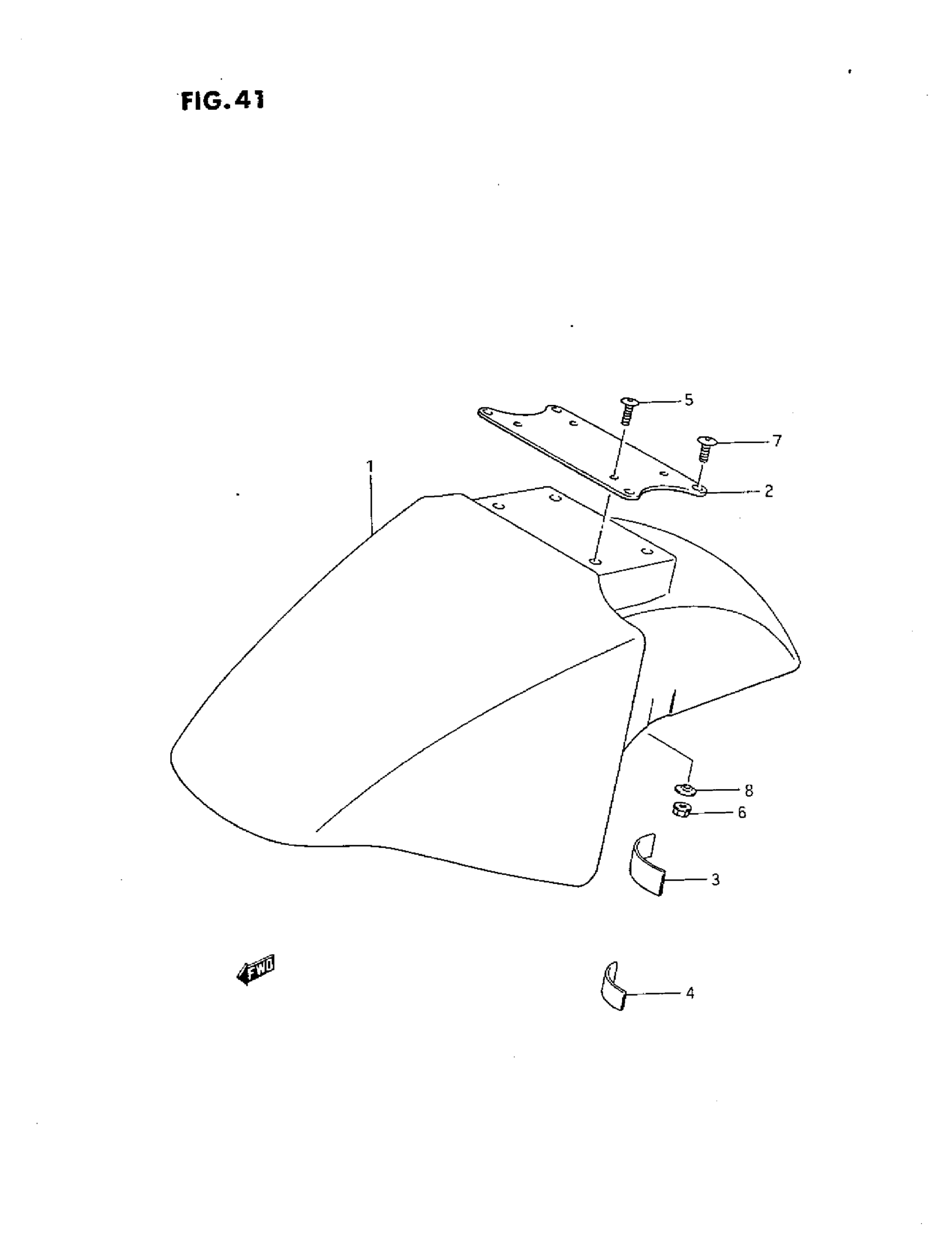

Suzuki GSX600F (1993) FRONT FENDER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL J, FOR 07P, 21X, 38K, 32X ->53111-19C21-22R This part replaces 53111-32B10-22R.

53111-20C00

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 53111-19C21-22R.

53111-20C00

Unavailable

1

FENDER, FRONT (BLACK) | MODEL K, FOR 0FX ->53111-19C21-33J This part replaces 53111-32B10-33J.

53111-20C00-33J

Unavailable

1

FENDER, FRONT (RED) | MODEL K, FOR 28V ->53111-19C21-28V This part replaces 53111-32B10-28V.

53111-20C00-28V

Unavailable

1

FENDER, FRONT (RED) | MODEL L/M, FOR 28V This part replaces 53111-19C21-28V.

53111-20C00-28V

Unavailable

1

FENDER, FRONT (BLACK) | MODEL L/M/N/P, FOR 333, 36X MODEL R, FOR 33J This part replaces 53111-19C21-33J.

53111-20C00-33J

Unavailable

1

FENDER, FRONT (RED) | MODEL N, FOR 19A This part replaces 53111-19C21-19A.

53111-20C00-19A

Unavailable

1

FENDER, FRONT (RED) | MODEL P, FOR 1MW This part replaces 53111-19C21-1MW.

53111-20C00-1MW

Unavailable

1

FENDER, FRONT (RED) | MODEL R, FOR 1TY

53111-19C21-1TY

Unavailable

2

BRACE, FRONT FENDER (SILVER) | MODEL J/K/L/M This part replaces 53114-19C00.

53114-01D00

$29.25

2

BRACE, FRONT FENDER | MODEL N/P/R

53114-01D00

$29.25

3

CUSHION,FR This part replaces 53145-19C00.

46312-31D11

$5.02

4

CUSHION, LOWER

53146-20C00

$7.05

5

SCREW, SCREEN This part replaces 09139-05022.

09139-05042

$2.90

6

NUT This part replaces 09159-05026.

09159-05043

$2.22

7

SCREW,, FENDER

09139-06027

$2.16

8

WASHER

09169-05010

$2.38
