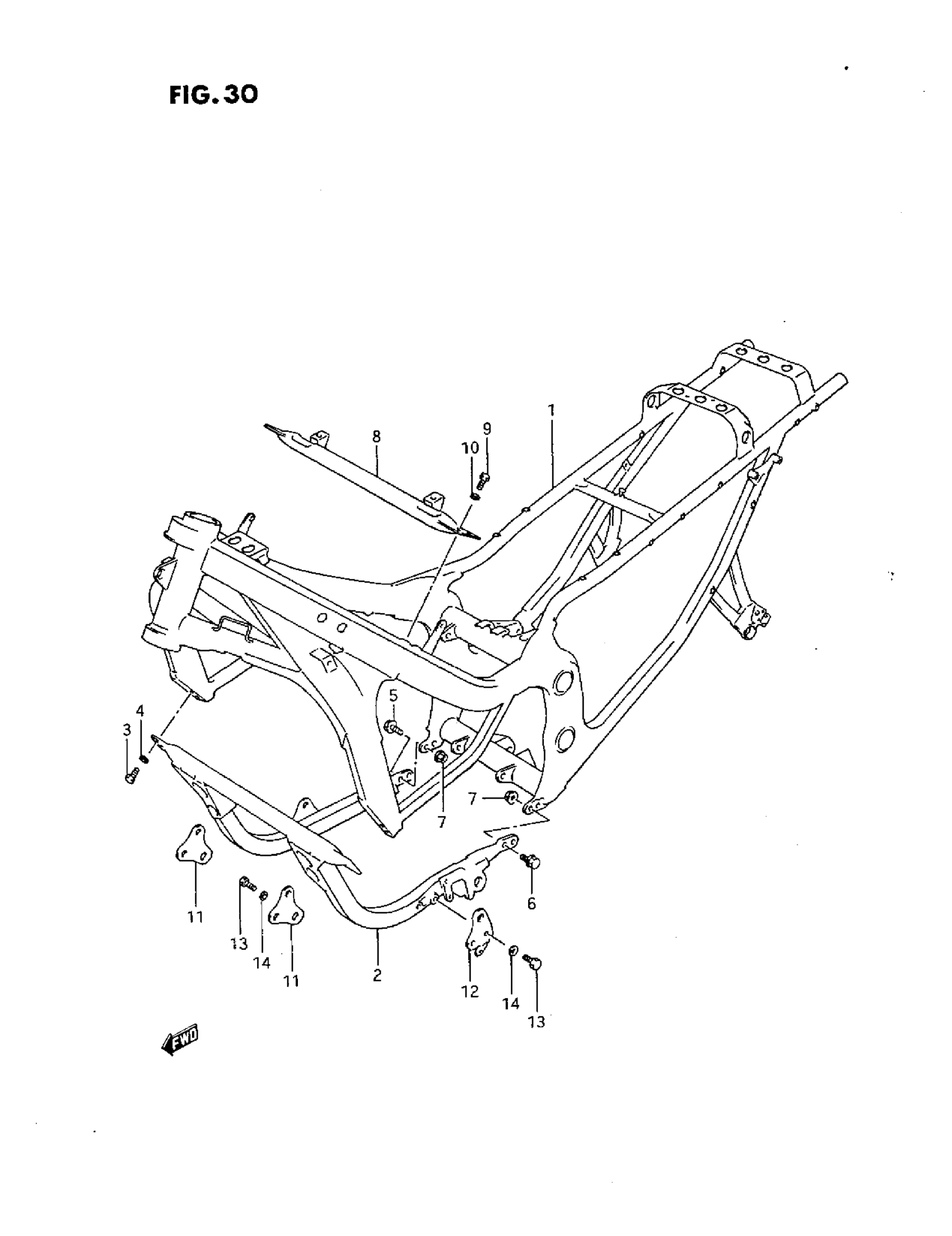

Suzuki GSX600F (1993) FRAME (J/K/L/M/N/P) Diagram

#

Description
Price

1

FRAME SET (BLACK) | MODEL J This part replaces 41100-19880-019.

41101-19830-019

Unavailable

1

FRAME SET (BLACK) | MODEL K/L/M/N/P, SEE NOTE This part replaces 41100-19881-291.

41101-19830-291

Unavailable

1

FRAME SET (BLACK) | MODEL J, CALIFORNIA ONLY This part replaces 41100-19890-019.

41101-19830-019

Unavailable

1

FRAME SET (BLACK) | MODEL K, CALIFORNIA ONLY This part replaces 41100-19891-291.

41101-19830-291

Unavailable

1

FRAME SET (BLACK) | MODEL L/M/N/P, CALIFOTNIA ONLY

41101-19830-291

Unavailable

2

TUBE, FRAME DOWN (BLACK) | MODEL J

41140-19C00-019

Unavailable

2

TUBE, FRAME DOWN (BLACK) | MODEL K/L/M/N/P

41140-19C00-291

Unavailable

3

BOLT | MODEL J This part replaces 01107-08205.

01500-0820A

$2.28

3

BOLT, BRACE | MODEL K This part replaces 01137-08205.

01570-0820A

$3.15

3

BOLT | MODEL L/M/N This part replaces 01107-08258.

01500-08257

$2.50

4

LOCK WASHER | MODEL J This part replaces 08321-21084.

08321-0108A

$1.84

4

.LOCK WASHER | MODEL L/M/N/P This part replaces 08321-21088.

08321-01087

$2.13

5

BOLT This part replaces 01517-08254.

01550-0825A

$2.32

6

BOLT This part replaces 01517-08304.

01550-0830A

$3.04

7

NUT This part replaces 08319-31085.

08319-3108A

$2.32

8

TUBE, FRAME BRIGE | MODEL J/K This part replaces 41750-19C00.

41750-34C00

Unavailable

8

TUBE, FRAME BRIDGE | MODEL L/M/N/P

41750-34C00

Unavailable

9

PLUG, DRAIN | MODEL J This part replaces 01107-08165.

01500-0816B

$2.50

9

BOLT | MODEL K This part replaces 01137-08165.

01570-0816A

$3.03

9

BOLT | MODEL L/M This part replaces 01137-08168.

01570-08167

$3.85

9

BOLT | MODEL N/P

09103-08266

$2.71

10

LOCK WASHER | MODEL J This part replaces 08321-21084.

08321-0108A

$1.84

11

PLATE, NO.1 (BLACK) | MODEL J

41911-19C00-019

Unavailable

11

PLATE, NO.1 (BLACK) | MODEL K/L/M/N/P This part replaces 41911-19C00-291.

41911-19C00-019

Unavailable

12

PLATE, NO.2 (BLACK) | MODEL J This part replaces 41940-19C00-019.

41940-20C00-019

Unavailable

12

PLATE, NO.2 (BLACK) | MODEL K/L/M/N/P This part replaces 41940-19C00-291.

41940-20C00-019

Unavailable

13

PLUG, DRAIN | MODEL J This part replaces 01107-08165.

01500-0816B

$2.50

13

BOLT | MODEL K This part replaces 01137-08165.

01570-0816A

$3.03

13

BOLT | MODEL L/M/N/P This part replaces 01137-08168.

01570-08167

$3.85

14

LOCK WASHER | MODEL J This part replaces 08321-21084.

08321-0108A

$1.84
