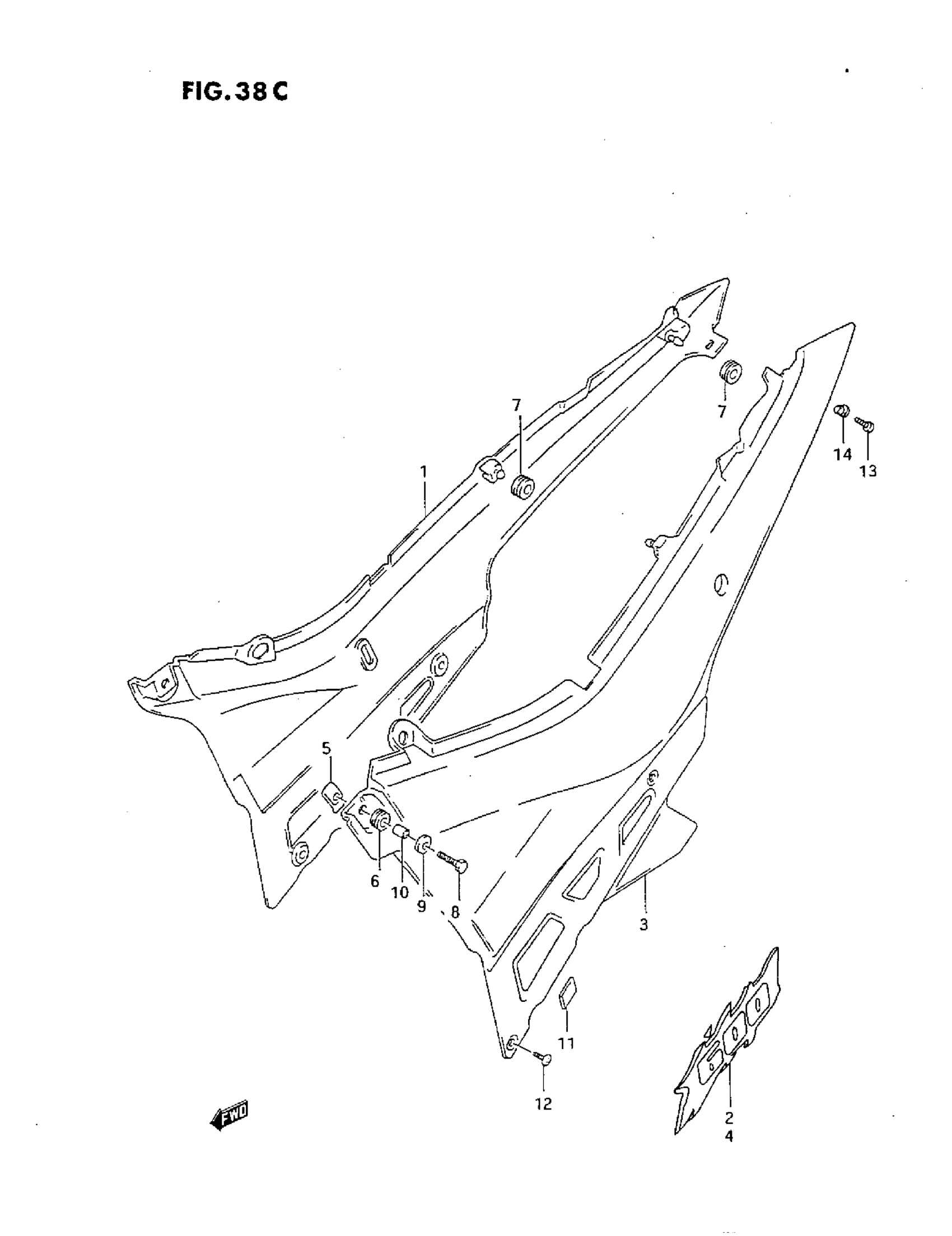

Suzuki GSX600F (1993) FRAME COVER (R) Diagram

#

Description
Price

1

COVER, FRAME RH (RED/SILVER) | FOR ITY

47110-43C70-A6K

Unavailable

1

COVER, FRAME RH (BLACK/SILVER) | FOR 33J

47110-43C70-3DC

Unavailable

2

EMBLEM | FOR A6K

68131-43C10-C3C

Unavailable

2

EMBLEM | FOR 3DC

68131-43C10-C3D

Unavailable

3

COVER, FRAME LH (RED/SILVER) | FOR ITY

47210-43C70-A6K

Unavailable

3

COVER, FRAME LH (BLACK/SILVER) | FOR 33J

47210-43C70-3DC

Unavailable

4

EMBLEM | FOR A6K

68131-43C10-C3C

Unavailable

4

EMBLEM | FOR 3DC

68131-43C10-C3D

Unavailable

5

PLATE

47153-19C01

$7.95

6

CUSHION

47161-19C00

$3.03

7

CUSHION, REAR

09320-08018

$3.04

8

SCREW, FRONT

09139-06068

Unavailable

9

WASHER (6.5X18X1.6) This part replaces 09160-06057.

09160-06109

$1.49

10

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03

11

CUSHION

09320-09016

$1.97

12

SCREW, LOWER

09139-05038

$2.06

13

.SCREW This part replaces 02142-05123.

02142-0512A

$1.49

14

WASHER

09169-05009

$2.47
