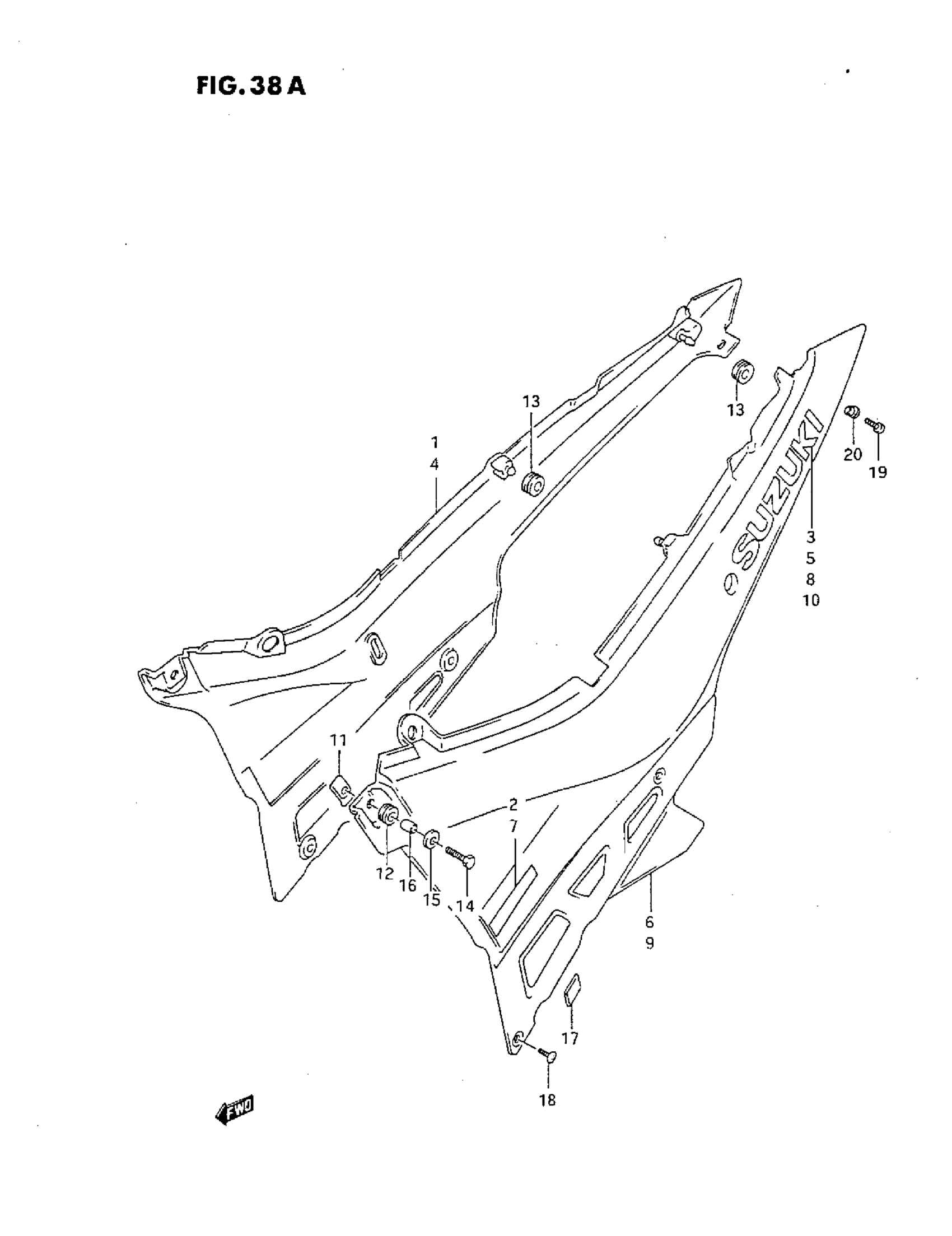

Suzuki GSX600F (1993) FRAME COVER (L/M) Diagram

#

Description
Price

1

COVER, FRAME RH | MODEL L FOR 33J This part replaces 47110-19C61-36X.

47111-19C01

Unavailable

1

COVER, FRAME RH | MODEL L FOR 28V This part replaces 47110-19C61-2YP.

47111-19C01

Unavailable

2

TAPE SET, FRAME RH (RED) | MODEL L FOR 36X

68130-19C30-22P

Unavailable

2

TAPE SET, FRAME RH (BLACK) | MODEL L FOR 2YP

68130-19C30-019

Unavailable

3

EMBLEM (RED) | MODEL L FOR 36X

68131-19C20-22P

Unavailable

3

.EMBLEM (BLACK) | MODEL L FOR 2YP This part replaces 68131-19C20-019.

68111-47C10-019

$22.97

4

COVER, FRAME RH | MODEL M FOR 28V This part replaces 47110-43C10-A02.

47111-19C01

Unavailable

4

COVER, FRAME RH | MODEL M FOR 33J This part replaces 47110-43C10-E88.

47111-19C01

Unavailable

5

EMBLEM (GRAY) | MODEL M

68181-32B00-17U

Unavailable

6

NO DESCRIPTION AVAILABLE | MODEL L FOR 33J This part replaces 47210-19C61-36X.

47211-19C01

Unavailable

6

COVER, FRAME LH (RED/BLACK) | MODEL L FOR 28V

47210-19C61-2YP

Unavailable

7

TAPE SET, FRAME LH (RED) | MODEL L FOR 36X

68140-19C30-22P

Unavailable

7

TAPE SET, FRAME LH (BLACK) | MODEL L FOR 2YP

68140-19C30-019

Unavailable

8

EMBLEM (RED) | MODEL L FOR 36X

68131-19C20-22P

Unavailable

8

.EMBLEM (BLACK) | MODEL L FOR 2YP This part replaces 68131-19C20-019.

68111-47C10-019

$22.97

9

COVER, FRAME LH (RED/GRAY) | MODEL M FOR 28V

47210-43C10-A02

Unavailable

9

COVER, FRAME LH (BLACK/CHARCOAL) | MODEL M FOR 33J

47210-43C10-E88

Unavailable

10

EMBLEM (GRAY) | MODEL M

68181-32B00-17U

Unavailable

11

PLATE

47153-19C01

$7.95

12

CUSHION

47161-19C00

$3.03

13

CUSHION, REAR

09320-08018

$3.04

14

BOLT This part replaces 09128-06006.

09128-06057

$1.65

15

WASHER (6.5X18X1.6) This part replaces 09160-06057.

09160-06109

$1.49

16

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03

17

CUSHION

09320-09016

$1.97

18

SCREW, LOWER

09139-05038

$2.06

19

.SCREW This part replaces 02142-05124.

02142-0512A

$1.49

20

WASHER

09169-05009

$2.47
