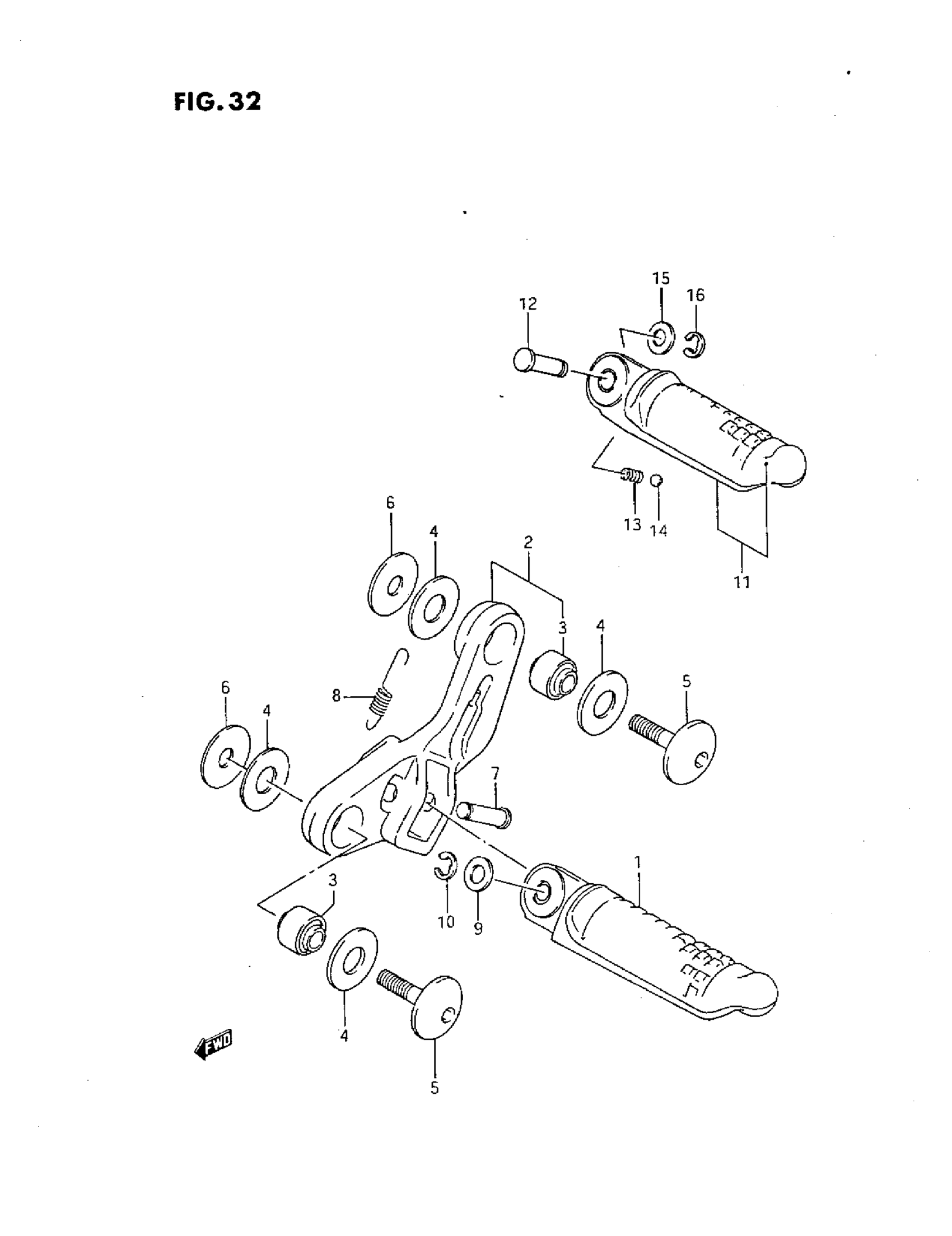

Suzuki GSX600F (1993) FOOTREST Diagram

#

Description
Price

1

BAR, FR FOOTRES | MODEL J This part replaces 43510-19C00.

43510-19C02

Unavailable

1

BAR, FR FOOTRES | MODEL K/ L/M/N/P/R This part replaces 43510-19C01.

43510-19C02

Unavailable

1

BAR,FR FOOTREST | MODEL J This part replaces 43520-19C00.

43520-19C02

Unavailable

1

BAR,FR FOOTREST | MODEL K/L/M/N/P/R This part replaces 43520-19C01.

43520-19C02

Unavailable

2

HOLDER, FRONT FOOTREST RH

43531-19C00

Unavailable

2

HOLDER, FRONT FOOTREST LH

43541-19C00

Unavailable

3

BUSH, HOLDER

09319-08033

$11.88

4

WASHER, HOLDER

09161-12006

Unavailable

5

BOLT

09106-08079

Unavailable

6

WASHER, MUFFLER SUPPORT This part replaces 09160-08104.

09160-08503

$2.50

7

PIN

09208-08010

$2.91

8

SPRING

09443-08049

$4.25

9

WASHER | MODEL J/K/L/M/N/P This part replaces 08322-11084.

08322-0108A

$1.92

9

WASHER | MODEL R This part replaces 08322-01083.

08322-0108A

$1.92

10

CIRCLIP This part replaces 08332-11068.

08332-1106A

$1.49

11

BAR, PILLION FOOTREST RH

43610-19C00

Unavailable

11

BAR, PILLION FOOTREST LH

43710-19C00

Unavailable

12

PIN

09208-08011

$2.91

13

SPRING

09440-05005

$1.58

14

BALL

06111-07004

$1.49

15

WASHER | MODEL J/K/L/M/N/P This part replaces 08322-11084.

08322-0108A

$1.92

15

WASHER | MODEL R This part replaces 08322-01083.

08322-0108A

$1.92

16

CIRCLIP This part replaces 08332-11068.

08332-1106A

$1.49
