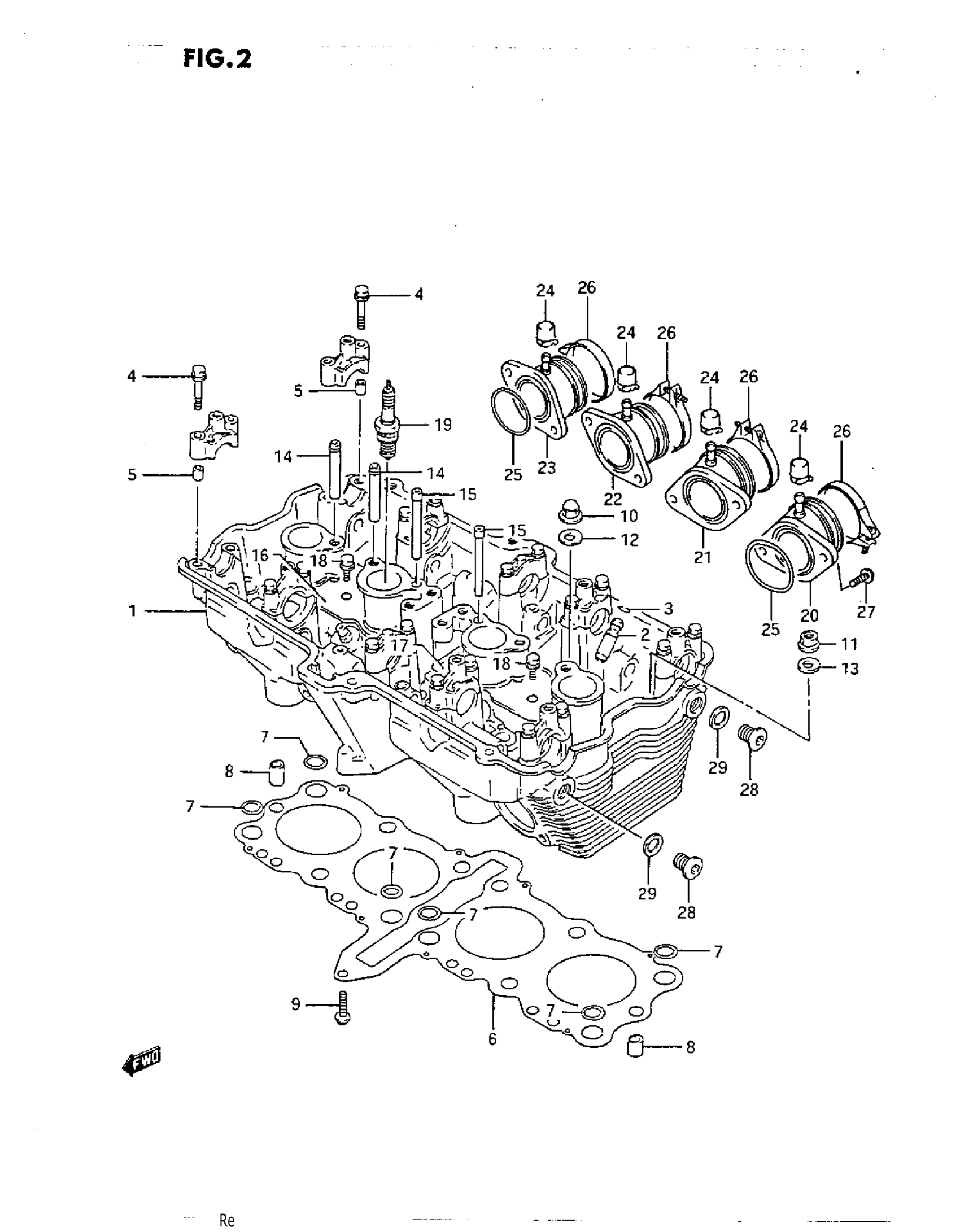

Suzuki GSX600F (1993) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER | MODEL J

11100-19C01

Unavailable

1

HEAD ASSY, CYLINDER | MODEL K/ L/M

11100-43C00

Unavailable

1

HEAD ASSY, CYLINDER | MODEL N/P/R

11100-19E00

Unavailable

1

HEAD ASSY, CYLINDER | MODEL J, CALIFORNIA ONLY

11100-19C11

Unavailable

1

HEAD ASSY, CYLINDER | MODEL K/L/M, CALIFORNIA ONLY

11100-43C10

Unavailable

1

HEAD ASSY, CYLINDER | MODEL N/P/R, CALIFORNIA ONLY

11100-19E10

Unavailable

2

GUIDE, VALVE (OS:0.3) | MODEL J/K/L/M This part replaces 11115-27A70.

11116-06B70

$40.73

2

GUIDE, VALVE | MODEL N/P/R

11116-18D70

Unavailable

3

.RING (10X85)

09381-10004

$1.50

4

BOLT (6X39)

09103-06026

$1.98

5

PIN

09206-08001

$1.78

6

GASKET, CYLINDER HEAD | MODEL J/K This part replaces 11141-19C01.

11141-19C03

$73.22

6

GASKET, CYLINDER HEAD | MODEL L/M/N/P/R This part replaces 11141-19C02.

11141-19C03

$73.22

7

O-RING

09280-12013

$5.57

8

PIN

04211-11189

$1.78

9

BOLT | MODEL J/K/L/M/N/P This part replaces 01517-06305.

01550-0630A

$2.32

9

BOLT | MODEL R This part replaces 01550-06303.

01550-0630A

$2.32

10

NUT

09159-10054

$7.82

11

NUT This part replaces 08316-10103.

08316-1010B

$2.66

12

.GASKET (10.2X20X2.3)

09168-10031

$2.03

13

WASHER (10.5X22X2.3) This part replaces 09160-10060.

09160-10039

$2.26

14

PIPE, OIL NO.1, 2

11131-27A00

$6.38

15

PIPE, OIL NO.3

11133-27A00

Unavailable

16

PLATE, OIL PIPE RH

11135-27A02

Unavailable

17

PLATE, OIL PIPE LH

11136-27A02

Unavailable

18

BOLT | MODEL J/K/L/M/N/P This part replaces 01517-06128.

01550-06127

$2.30

18

BOLT, CLAMP | MODEL R This part replaces 01550-06123.

01550-0612A

$1.97

19

SPARK PLUG (NGK, DRBES)

09482-00221

$3.68

20

PIPE, INTAKE LH | MODEL J/K

13101-19C00

Unavailable

20

PIPE, INTAKE LH | MODEL L/M/N/P/R This part replaces 13101-19C10.

13101-19C12

Unavailable

21

PIPE, INTAKE ML | MODEL J/K

13102-19C00

Unavailable

21

PIPE, INTAKE ML | MODEL L/M/N/P/R This part replaces 13102-19C10.

13102-19C12

Unavailable

22

PIPE, INTAKE MR | MODEL J/K

13103-19C00

Unavailable

22

PIPE, INTAKE MR | MODEL L/M/N/P/R This part replaces 13103-19C10.

13103-19C12

Unavailable

23

PIPE, INTAKE RH | MODEL J/K

13104-19C00

Unavailable

23

PIPE, INTAKE RH | MODEL L/M/N/P/R SPARK PLUG GAP:.024-.028MM This part replaces 13104-19C10.

13104-19C12

Unavailable

24

CAP | MODEL J/K

13150-19C00

Unavailable

25

O-RING (D:2.4,ID:39.7) This part replaces 09280-40010.

09280-40020

$2.91

26

CLAMP | MODEL J/K

09402-50208

$4.77

26

CLAMP | MODEL L/M/N/P/R

09402-52208

$5.36

27

SCREW | MODEL J/K/L/M/N/P This part replaces 02152-06165.

02112-0616A

$1.49

27

SCREW | MODEL R This part replaces 02112-16163.

02112-1616A

$2.30

28

PLUG, CYLINDER HEAD | MODEL J/K/L/M/N This part replaces 09248-14004.

09248-14010

$5.50

28

PLUG, CYLINDER HEAD | MODEL P/R

09248-14010

$5.50

29

GASKET

09168-14002

$2.26
