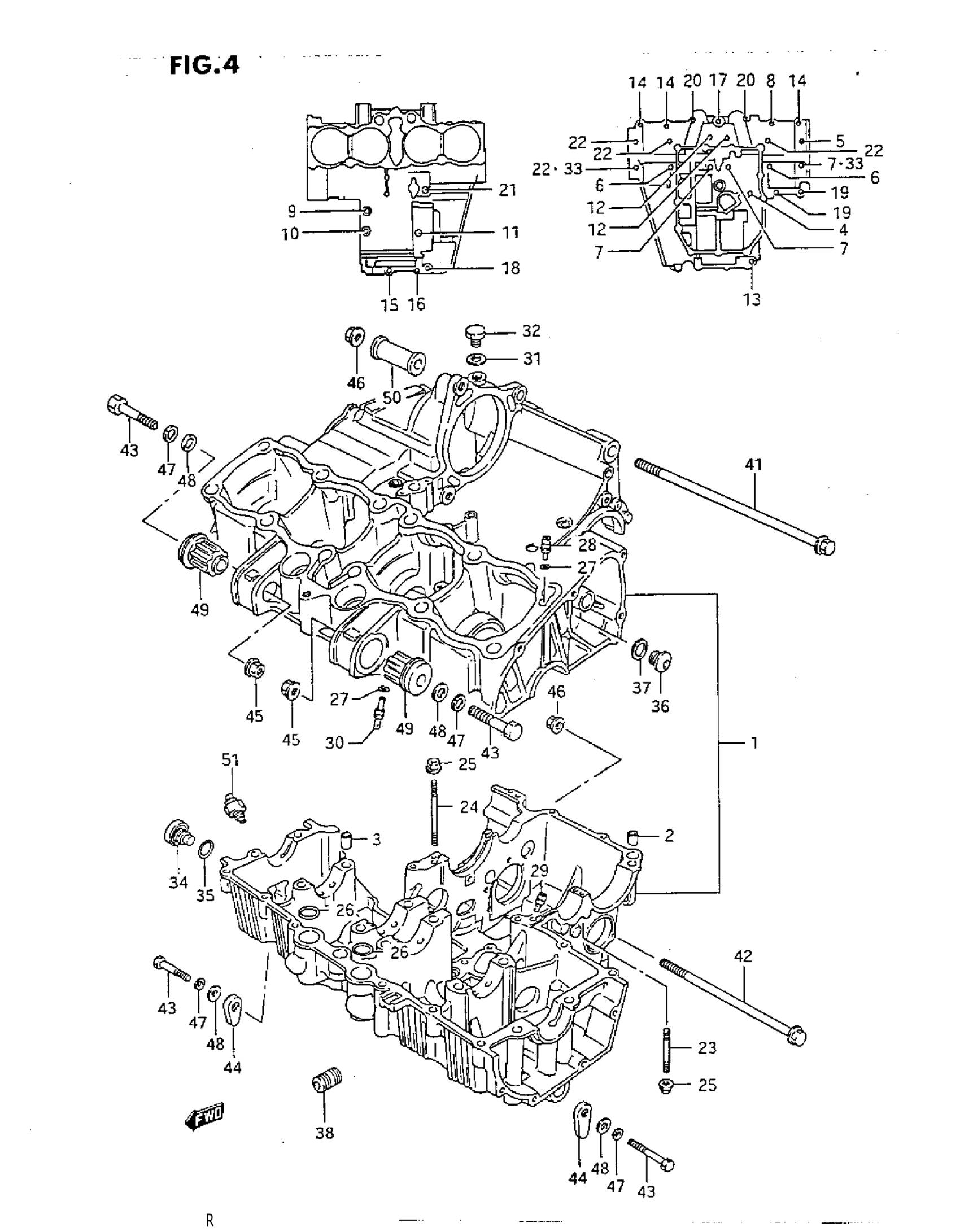

Suzuki GSX600F (1993) CRANKCASE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 11300-19864.

11300-19865

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL K/L/M/N/P This part replaces 11300-43852.

11300-43855

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL R This part replaces 11300-43853.

11300-43855

Unavailable

2

PIN

09206-13004

$2.40

3

PIN (11X20) This part replaces 09206-11005.

09206-11017

$6.30

4

BOLT (6X105)

09103-06067

$2.48

5

BOLT (8X105)

09103-08097

$3.44

6

BOLT (8X125)

09103-08182

$5.72

7

BOLT (8X115)

09103-08098

$3.29

8

BOLT | MODEL J/K/L/M/N/P This part replaces 01517-06354.

01550-0635A

$2.32

8

BOLT | MODEL R This part replaces 01550-06353.

01550-0635A

$2.32

9

BOLT, STATOR | MODEL J/K/L/M/N/P This part replaces 07110-06405.

07130-0640B

$3.38

9

BOLT, STATOR | MODEL R This part replaces 07130-06403.

07130-0640B

$3.38

10

BOLT | MODEL J/K/L/M/N/P This part replaces 07110-06505.

07130-0650B

$4.10

10

BOLT | MODEL R This part replaces 07130-06503.

07130-0650B

$4.10

11

BOLT | MODEL J/K/L/M/N This part replaces 07110-06655.

07130-0665B

$3.79

11

BOLT | MODEL P This part replaces 07130-06658.

07130-0665B

$3.79

11

BOLT | MODEL R This part replaces 07130-06653.

07130-0665B

$3.79

12

BOLT | MODEL J/K/L/M/N/P This part replaces 07110-08655.

07130-0865B

$5.27

12

BOLT | MODEL R This part replaces 07130-08653.

07130-0865B

$5.27

13

BOLT | MODEL J/K/L/M/N/P This part replaces 01517-08605.

01550-0860A

$4.17

13

BOLT | MODEL R This part replaces 01550-08603.

01550-0860A

$4.17

14

BOLT | MODEL J/K/L/M/N/P This part replaces 01517-06354.

01550-0635A

$2.32

14

BOLT | MODEL R This part replaces 01550-06353.

01550-0635A

$2.32

15

BOLT | MODEL J/K/L/M/N/P This part replaces 01517-06404.

01550-0640A

$2.42

15

BOLT | MODEL R This part replaces 01550-06403.

01550-0640A

$2.42

16

BOLT

01550-06407

$2.69

17

BOLT | MODEL J/K/L/M/N/P This part replaces 01517-06505.

01550-0650A

$2.85

17

BOLT | MODEL R This part replaces 01550-06503.

01550-0650A

$2.85

18

BOLT | MODEL J/K/L/M/N/P This part replaces 01517-06605.

01550-0660A

$3.05

18

BOLT | MODEL R This part replaces 01550-06603.

01550-0660A

$3.05

19

BOLT | MODEL J/K/L/M/N/P This part replaces 01517-06557.

01550-06557

$3.30

19

BOLT | MODEL R This part replaces 01550-06553.

01550-0655B

$3.30

20

BOLT | MODEL J/K/L/M/N/P This part replaces 01517-06705.

01550-0670B

$4.25

20

BOLT | MODEL R This part replaces 01550-06703.

01550-0670B

$4.25

21

BOLT | MODEL J/K/L/M/N/P This part replaces 01517-06805.

01550-0680B

$3.50

21

BOLT | MODEL R This part replaces 01550-06803.

01550-0680B

$3.50

22

BOLT (8X95)

09103-08105

$3.87

23

BOLT,STUD This part replaces 01421-06408.

01421-0640A

$2.38

24

BOLT,STUD This part replaces 01421-06608.

01421-0660A

$3.23

25

NUT | MODEL J/K/L/M/N/P This part replaces 09159-06017.

08319-31067

$2.03

25

NUT | MODEL R This part replaces 08316-10063.

08316-1006B

$2.50

26

O RING (D:2.5,ID:21)

09280-21008

$1.91

27

O-RING

09280-04004

$1.91

28

JET, OIL GALY HEAD

09493-14002

Unavailable

29

JET, OIL GALY GEAR SHIFT

09493-24010

$16.87

30

JET, OIL GALY PISTON

09493-80008

Unavailable

31

GASKET, HOLE PLUG

09168-12002

$1.59

32

PLUG, HOLE

09247-12103

$2.84

33

GASKET

09168-08021

$2.61

34

PLUG This part replaces 09248-16003.

09248-16007

$9.96

35

O-RING

09280-17002

$5.11

36

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

$2.98

37

GASKET

09168-14004

$1.83

38

UNION,OIL STAND This part replaces 16591-06B00.

16591-06B01

$7.05

41

BOLT (10X175)

09103-10151

$17.50

42

BOLT (10X130)

09103-10237

$9.68

43

BOLT | MODEL J/K/ L/M/N/P This part replaces 01107-10555.

01500-1055A

$3.55

43

BOLT | MODEL R This part replaces 01580-10553.

01580-1055B

$5.37

44

NUT

09159-10020

$5.18

45

NUT | MODEL J/K/L/M/N/P This part replaces 08316-16105.

08316-1010B

$2.66

45

NUT | MODEL R This part replaces 08316-10103.

08316-1010B

$2.66

46

NUT, REAR SWGARM BRACKET This part replaces 09159-10044.

09159-10115

$3.55

47

LOCK WASHER | MODEL J/K/L/M/N/P This part replaces 08321-21104.

08321-0110A

$1.84

48

WASHER, KNUCKLE END | MODEL J/K/L/M/N/P This part replaces 08322-21105.

08322-0110A

$1.84

49

BUSH,ENGINE MOU This part replaces 11681-06B00.

11681-06B01

$21.25

50

SPACER, ENGINE MOUNT | MODEL J/K This part replaces 11611-06B01.

11610-20C00

$15.42

50

SPACER (L:27) | MODEL L/M/N/P/R

11610-20C00

$15.42

51

SWITCH ASSY,OIL PRESSURE | MODEL J/K/L/M/N This part replaces 37820-33200.

37820-33D11

$25.13

51

SWITCH ASSY,OIL PRESSURE | MODEL P/R This part replaces 37820-33D00.

37820-33D11

$25.13
