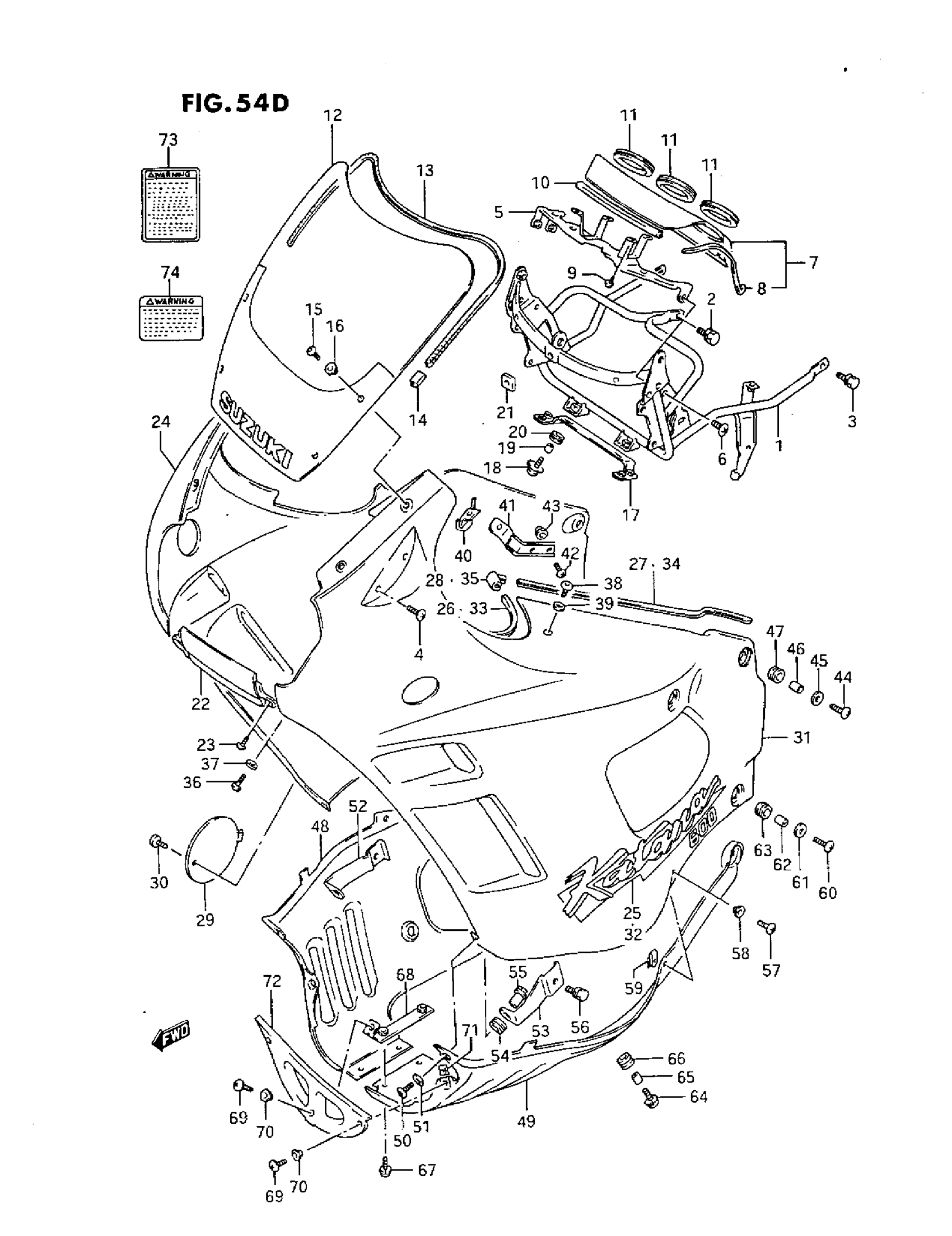

Suzuki GSX600F (1993) COWLING (M 28V,33J) Diagram

#

Description
Price

1

BRACE, COWLING This part replaces 94510-19C00.

94510-20C20

Unavailable

1

BRACE, COWLING | CALIFORNIA ONLY This part replaces 94510-19C10.

94510-20C30

Unavailable

2

BOLT This part replaces 01517-08205.

01550-0820A

$2.23

3

BOLT, CLAMP This part replaces 01517-06125.

01550-0612A

$1.97

4

SCREW

02142-06127

$1.49

5

PLATE, METER

94520-19C00

Unavailable

6

SCREW This part replaces 02142-06125.

02142-0612A

$1.49

7

COVER, METER This part replaces 94420-19C00.

94420-19C02

Unavailable

8

MOLDING, LICENSE HOLDER This part replaces 94635-19C10.

94635-19C00

$8.53

9

SCREW This part replaces 03541-05085.

03541-0508A

$1.49

10

MOLDING, METER

94527-19C00

$7.67

11

CUSHION, COVER

94426-19C00

Unavailable

12

WINDOW

94610-19C10

Unavailable

13

MOLDING This part replaces 94631-19C00.

94631-49300

$18.86

14

CAP

94637-19C00

Unavailable

15

SCREW, SCREEN This part replaces 09139-05022.

09139-05042

$2.90

16

WASHER (5.2X11.0X1.0)

09161-05010

$2.45

17

PLATE, CENTER

94460-19C00

Unavailable

18

SCREW

09136-06081

$2.26

19

SPACER This part replaces 09180-06167.

09180-06286

$2.50

20

CUSHION

09320-10015

$2.54

21

CUSHION This part replaces 94638-19C00.

63191-25C00

$3.05

22

PANEL, CENTER (RED)

94421-19C01-28V

Unavailable

22

PANEL, CENTER (BLACK)

94421-19C01-33J

Unavailable

23

SCREW This part replaces 02142-05128.

02142-05127

$1.97

24

NO DESCRIPTION AVAILABLE This part replaces 94401-43C10-28V.

94430-19C02-Y7M

Unavailable

24

NO DESCRIPTION AVAILABLE This part replaces 94401-43C10-33J.

94430-19C02-33J

Unavailable

25

EMBLEM, KATANA | FOR 28V

68681-19C20-0WR

Unavailable

25

EMBLEM, KATANA | FOR 33J

68681-19C20-0WS

Unavailable

26

MOLDING This part replaces 94631-19C10.

94631-49310

Unavailable

27

MOLDING

94635-19C00

$8.53

28

JOINT

94438-19C00

Unavailable

29

LID, OIL (RED)

94435-19C01-28V

Unavailable

29

LID, OIL (BLACK)

94435-19C01-33J

Unavailable

30

SCREW

09139-06030

$3.70

30

COVER, METER RH (RED) | WITH OUT DRAWING

94433-19C01-28V

Unavailable

30

COVER, METER RH (BLACK) | WITH OUT DRAWING

94433-19C01-33J

Unavailable

30

SCREW | WITH OUT DRAWING This part replaces 03541-04105.

03541-0410A

$1.68

31

NO DESCRIPTION AVAILABLE This part replaces 94402-43C10-28V.

94402-43C11-Y7M

Unavailable

31

NO DESCRIPTION AVAILABLE This part replaces 94402-43C10-33J.

94440-19C02-33J

Unavailable

31

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY This part replaces 94402-43C20-28V.

94402-43C21-28V

Unavailable

31

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY This part replaces 94402-43C20-33J.

94402-43C22-33J

Unavailable

32

EMBLEM, KATANA | FOR 28V

68681-19C20-0WR

Unavailable

32

EMBLEM, KATANA | FOR 33J

68681-19C20-0WS

Unavailable

32

EMBLEM, KATANA | CALIFORNIA ONLY FOR 28V

68691-19C00-0WR

Unavailable

32

EMBLEM, KATANA | CALIFORNIA ONLY FOR 33J

68691-19C00-0WS

Unavailable

33

MOLDING This part replaces 94631-19C10.

94631-49310

Unavailable

34

MOLDING

94635-19C00

$8.53

35

JOINT

94438-19C00

Unavailable

35

COVER, METER LH (RED) | WITH OUT DRAWING

94443-19C01-28V

Unavailable

35

COVER, METER LH (BLACK) | WITH OUT DRAWING

94443-19C01-33J

Unavailable

35

SCREW | WITH OUT DRAWING This part replaces 03541-04105.

03541-0410A

$1.68

36

SCREW, FRONT

09139-06029

$5.36

37

WASHER

09160-06036

$2.28

38

SCREW, UPPER

09139-06030

$3.70

39

WASHER

09161-06021

$2.83

40

BRACKET, UPPER, RH

94560-19C00

Unavailable

41

BRACKET, UPPER, LH

94570-19C00

Unavailable

42

SCREW

09125-06055

$2.34

43

NUT

94573-19C00

Unavailable

44

SCREW

09139-06029

$5.36

45

WASHER

09160-06036

$2.28

46

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03

47

CUSHION

09320-09016

$1.97

48

NO DESCRIPTION AVAILABLE | FOR 28V This part replaces 94471-19C00-20G.

94471-19C00

Unavailable

48

NO DESCRIPTION AVAILABLE | FOR 33J This part replaces 94471-19C00-24K.

94471-19C00

Unavailable

49

NO DESCRIPTION AVAILABLE | FOR 28V This part replaces 94481-19C00-20G.

94481-19C00

Unavailable

49

NO DESCRIPTION AVAILABLE | FOR 33J This part replaces 94481-19C00-24K.

94481-19C00

Unavailable

50

SCREW, FRONT

09139-06042

$5.55

51

WASHER

09160-06036

$2.28

52

BRACKET, UNDER, RH

94531-19C00

Unavailable

53

BRACKET, UNDER, LH

94532-19C00

Unavailable

54

CUSHION

09320-10015

$2.54

55

NUT

94590-19C00

Unavailable

56

BOLT This part replaces 01137-06165.

01570-0616A

$2.23

57

SCREW

09139-05025

$2.05

58

WASHER

09161-05017

$3.18

59

NUT COWL This part replaces 94484-32B00.

94484-24F00

$4.03

60

SCREW, REAR

09139-06029

$5.36

61

WASHER

09160-06036

$2.28

62

SPACER

09180-06097

$6.63

63

CUSHION

09320-09016

$1.97

64

SCREW, LOWER

09136-06081

$2.26

65

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03

66

CUSHION, LOWER

09320-09016

$1.97

67

SCREW This part replaces 02142-15165.

02142-0516A

$1.49

68

BRACKET, LOWER

94580-19C00

Unavailable

69

SCREW This part replaces 02142-05164.

02142-0516A

$1.49

70

WASHER

09161-05017

$3.18

71

NUT COWL This part replaces 94484-32B00.

94484-24F00

$4.03

72

COVER, UNDER, FRONT (BLACK)

94475-19C01

Unavailable

73

LABEL,SCREEN This part replaces 68612-48B00.

68922-14F01

$4.80

74

LABEL,GENERAL W This part replaces 68319-40C00.

68319-33E02

$7.25
