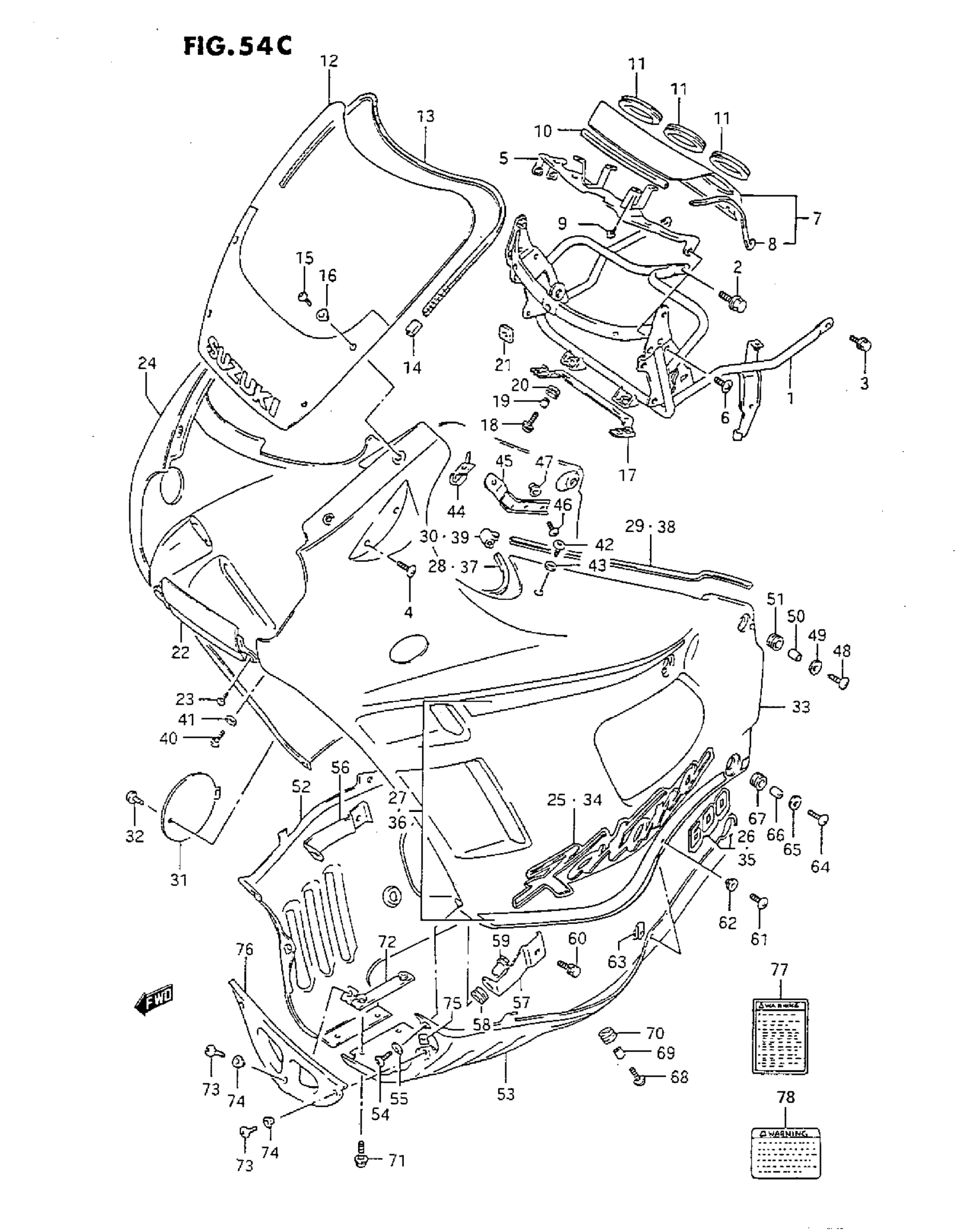

Suzuki GSX600F (1993) COWLING (L 28V,33J) Diagram

#

Description
Price

1

BRACE, COWLING This part replaces 94510-19C00.

94510-20C20

Unavailable

1

BRACE, COWLING | CALIFORNIA ONLY This part replaces 94510-19C10.

94510-20C30

Unavailable

2

BOLT This part replaces 01517-08205.

01550-0820A

$2.23

3

BOLT, CLAMP This part replaces 01517-06125.

01550-0612A

$1.97

4

SCREW

02142-06127

$1.49

5

PLATE, METER

94520-19C00

Unavailable

6

SCREW This part replaces 02142-06125.

02142-0612A

$1.49

7

COVER, METER This part replaces 94420-19C00.

94420-19C02

Unavailable

8

MOLDING, LICENSE HOLDER This part replaces 94635-19C10.

94635-19C00

$8.53

9

SCREW This part replaces 03541-05085.

03541-0508A

$1.49

10

MOLDING, METER

94527-19C00

$7.67

11

CUSHION, COVER

94426-19C00

Unavailable

12

WINDOW

94610-19C10

Unavailable

13

MOLDING This part replaces 94631-19C00.

94631-49300

$18.86

14

CAP

94637-19C00

Unavailable

15

SCREW, SCREEN This part replaces 09139-05022.

09139-05042

$2.90

16

WASHER (5.2X11.0X1.0)

09161-05010

$2.45

17

PLATE, CENTER

94460-19C00

Unavailable

18

SCREW

09136-06081

$2.26

19

SPACER This part replaces 09180-06167.

09180-06286

$2.50

20

CUSHION

09320-10015

$2.54

21

CUSHION This part replaces 94638-19C00.

63191-25C00

$3.05

22

PANEL, CENTER (RED)

94421-19C01-28V

Unavailable

22

PANEL, CENTER (BLACK)

94421-19C01-33J

Unavailable

23

SCREW This part replaces 02142-05128.

02142-05127

$1.97

24

NO DESCRIPTION AVAILABLE This part replaces 94401-19C71-28V.

94401-19C72-28V

Unavailable

24

NO DESCRIPTION AVAILABLE | FOR 33J This part replaces 94401-19C71-36X.

94401-19C72-36X

Unavailable

25

EMBLEM, KATANA | FOR 28V

68181-19C00-A15

Unavailable

25

EMBLEM, KATANA | FOR 36X

68181-19C00-3YS

Unavailable

26

EMBLEM, 600 | FOR 28V

68182-19C10-3AU

Unavailable

26

EMBLEM, 600 | FOR 36X

68182-19C10-3YT

Unavailable

27

TAPE SET, RH | FOR 28V

68180-19C30-0PM

Unavailable

27

TAPE SET, RH | FOR 36X

68180-19C30-0PN

Unavailable

28

MOLDING This part replaces 94631-19C10.

94631-49310

Unavailable

29

MOLDING

94635-19C00

$8.53

30

JOINT

94438-19C00

Unavailable

31

LID, OIL (RED)

94435-19C01-28V

Unavailable

31

LID, OIL (BLACK)

94435-19C01-33J

Unavailable

32

SCREW

09139-06030

$3.70

32

COVER, METER RH (RED) | WITH OUT DRAWING

94433-19C01-28V

Unavailable

32

COVER, METER RH (BLACK) | WITH OUT DRAWING

94433-19C01-33J

Unavailable

32

SCREW | WITH OUT DRAWING This part replaces 03541-04105.

03541-0410A

$1.68

33

NO DESCRIPTION AVAILABLE This part replaces 94402-19C71-28V.

94402-19C72-28V

Unavailable

33

NO DESCRIPTION AVAILABLE | FOR 33J This part replaces 94402-19C71-36X.

94402-19C72-36X

Unavailable

33

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY This part replaces 94402-19C91-28V.

94402-19C92-28V

Unavailable

33

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY FOR 33J This part replaces 94402-19C91-36X.

94402-19C92-36X

Unavailable

34

EMBLEM, KATANA | FOR 28V

68181-19C00-A15

Unavailable

34

EMBLEM, KATANA | FOR 36X

68181-19C00-3YS

Unavailable

34

EMBLEM, KATANA | CALIFORNIA ONLY FOR 28V

68191-20C00-A15

Unavailable

34

EMBLEM, KATANA | CALIFORNIA ONLY FOR 36X

68191-20C00-3YS

Unavailable

35

EMBLEM, 600 | FOR 28V

68182-19C10-3AU

Unavailable

35

EMBLEM, 600 | FOR 36X

68182-19C10-3YT

Unavailable

36

TAPE SET, LH | FOR 28V

68190-19C30-0PM

Unavailable

36

TAPE SET, LH | FOR 36X

68190-19C30-0PN

Unavailable

36

TAPE SET, LH | CALIFORNIA ONLY FOR 28V

68190-19C40-0PM

Unavailable

36

TAPE SET, LH | CALIFORNIA ONLY FOR 36X

68190-19C40-0PN

Unavailable

37

MOLDING This part replaces 94631-19C10.

94631-49310

Unavailable

38

MOLDING

94635-19C00

$8.53

39

JOINT

94438-19C00

Unavailable

39

COVER, METER LH (RED) | WITH OUT DRAWING

94443-19C01-28V

Unavailable

39

COVER, METER LH (BLACK) | WITH OUT DRAWING

94443-19C01-33J

Unavailable

39

SCREW | WITH OUT DRAWING This part replaces 03541-04105.

03541-0410A

$1.68

40

SCREW, FRONT

09139-06029

$5.36

41

WASHER

09160-06036

$2.28

42

SCREW, UPPER

09139-06030

$3.70

43

WASHER

09161-06021

$2.83

44

BRACKET, UPPER, RH

94560-19C00

Unavailable

45

BRACKET, UPPER, LH

94570-19C00

Unavailable

46

SCREW

09125-06055

$2.34

47

NUT

94573-19C00

Unavailable

48

SCREW

09139-06029

$5.36

49

WASHER

09160-06036

$2.28

50

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03

51

CUSHION

09320-09016

$1.97

52

COVER, UNDER, RH (RED)

94471-19C00-28V

Unavailable

52

COVER, UNDER, RH (BLACK)

94471-19C00-33J

Unavailable

53

COVER, UNDER, LH (RED)

94481-19C00-28V

Unavailable

53

COVER, UNDER, LH (BLACK)

94481-19C00-33J

Unavailable

54

SCREW, FRONT

09139-06042

$5.55

55

WASHER

09160-06036

$2.28

56

BRACKET, UNDER, RH

94531-19C00

Unavailable

57

BRACKET, UNDER, LH

94532-19C00

Unavailable

58

CUSHION

09320-10015

$2.54

59

NUT

94590-19C00

Unavailable

60

BOLT This part replaces 01137-06165.

01570-0616A

$2.23

61

SCREW

09139-05025

$2.05

62

WASHER

09161-05017

$3.18

63

NUT COWL This part replaces 94484-32B00.

94484-24F00

$4.03

64

SCREW, REAR

09139-06029

$5.36

65

WASHER

09160-06036

$2.28

66

SPACER

09180-06097

$6.63

67

CUSHION

09320-09016

$1.97

68

SCREW, LOWER

09136-06081

$2.26

69

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03

70

CUSHION, LOWER

09320-09016

$1.97

71

SCREW This part replaces 02142-15165.

02142-0516A

$1.49

72

BRACKET, LOWER

94580-19C00

Unavailable

73

SCREW This part replaces 02142-05164.

02142-0516A

$1.49

74

WASHER

09161-05017

$3.18

75

NUT COWL This part replaces 94484-32B00.

94484-24F00

$4.03

76

COVER, UNDER, FRONT (BLACK)

94475-19C01

Unavailable

77

LABEL,SCREEN This part replaces 68612-48B00.

68922-14F01

$4.80

78

LABEL,GENERAL W This part replaces 68319-40C00.

68319-33E02

$7.25
