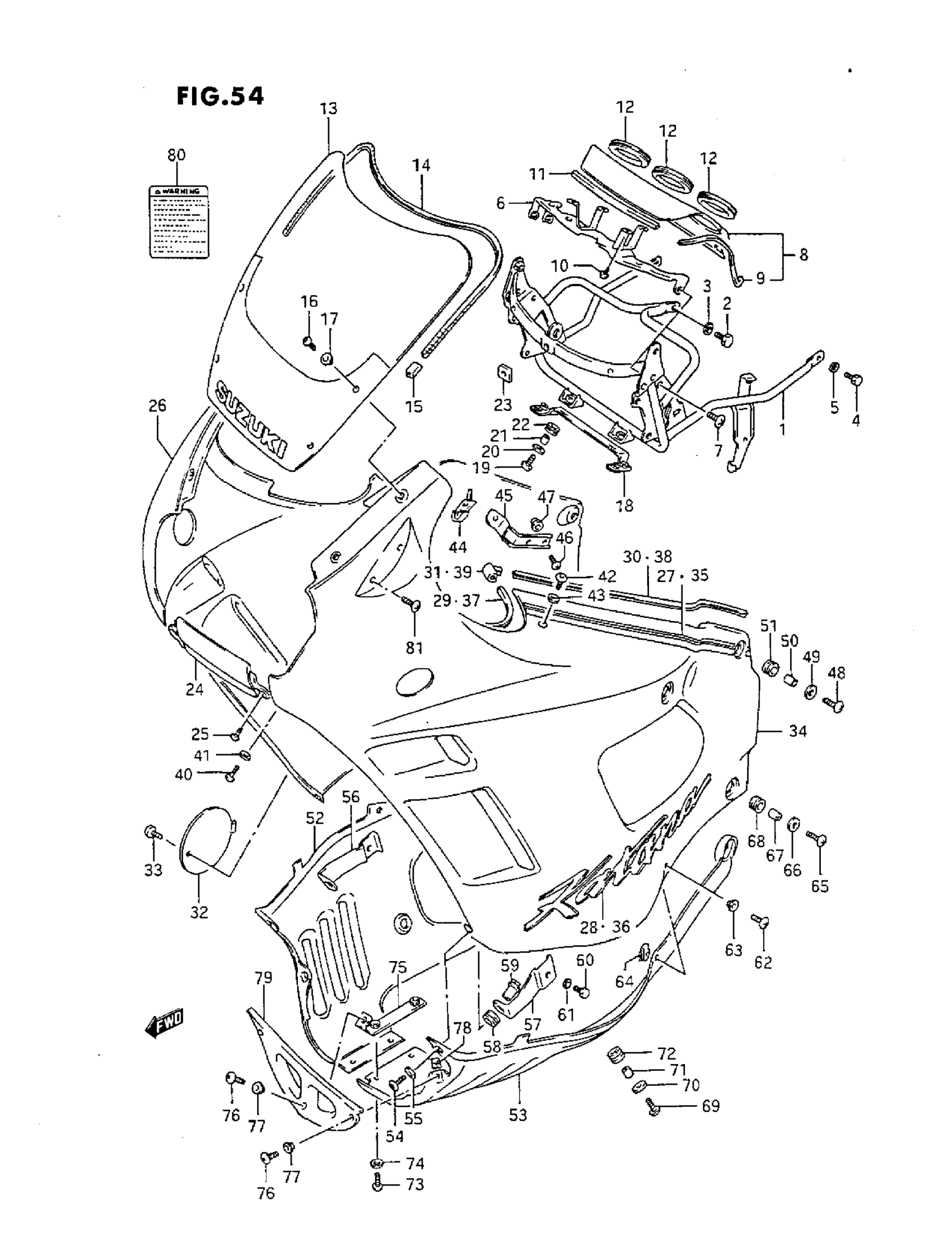

Suzuki GSX600F (1993) COWLING (J) Diagram

#

Description
Price

1

BRACE, COWLING | OTHER THAN CALIFORNIA This part replaces 94510-19C00.

94510-20C20

Unavailable

1

BRACE, COWLING | CALIFORNIA ONLY This part replaces 94510-19C10.

94510-20C30

Unavailable

2

BOLT This part replaces 01107-08205.

01500-0820A

$2.28

3

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

4

BOLT This part replaces 01107-06125.

01500-0612A

$1.78

5

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

6

PLATE, METER

94520-19C00

Unavailable

7

SCREW This part replaces 02142-06125.

02142-0612A

$1.49

8

COVER, METER This part replaces 94420-19C00.

94420-19C02

Unavailable

9

MOLDING, LICENSE HOLDER This part replaces 94635-19C10.

94635-19C00

$8.53

10

SCREW This part replaces 03541-05085.

03541-0508A

$1.49

11

MOLDING, METER

94527-19C00

$7.67

12

CUSHION, COVER

94426-19C00

Unavailable

13

WINDOW This part replaces 94610-19C00.

94610-19C10

Unavailable

14

MOLDING This part replaces 94631-19C00.

94631-49300

$18.86

15

CAP

94637-19C00

Unavailable

16

SCREW, SCREEN This part replaces 09139-05022.

09139-05042

$2.90

17

WASHER (5.2X11.0X1.0)

09161-05010

$2.45

18

PLATE, CENTER

94460-19C00

Unavailable

19

SCREW This part replaces 02142-06205.

02142-0620A

$1.49

20

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.49

21

SPACER This part replaces 09180-06167.

09180-06286

$2.50

22

CUSHION

09320-10015

$2.54

23

CUSHION This part replaces 94638-19C00.

63191-25C00

$3.05

24

PANEL,COWLING C This part replaces 94421-19C00-22R.

94421-19C01-22R

Unavailable

25

SCREW This part replaces 02142-05128.

02142-05127

$1.97

26

NO DESCRIPTION AVAILABLE | FOR 07P, 21X This part replaces 94401-19C00-22R.

94401-19C01-22R

Unavailable

26

NO DESCRIPTION AVAILABLE | FOR 38K, 32X This part replaces 94401-19C00-06X.

94401-19C01-22R

Unavailable

27

TAPE SET, RH | FOR 22R

68180-19C00-85K

Unavailable

27

TAPE SET, RH | FOR 06X

68180-19C00-2GC

Unavailable

28

EMBLEM | FOR 22R

68181-19C00-9AP

Unavailable

28

EMBLEM | FOR 06X

68181-19C00-2GB

Unavailable

29

MOLDING This part replaces 94631-19C10.

94631-49310

Unavailable

30

MOLDING

94635-19C00

$8.53

31

JOINT

94438-19C00

Unavailable

32

NO DESCRIPTION AVAILABLE This part replaces 94435-19C00-22R.

94435-19C01-22R

Unavailable

33

SCREW

09139-06030

$3.70

33

COVER, METER RH (WHITE) | WITH OUT DRAWING

94433-19C01-22R

Unavailable

33

SCREW | WITH OUT DRAWING This part replaces 03541-04105.

03541-0410A

$1.68

34

NO DESCRIPTION AVAILABLE | FOR 07P, 21X This part replaces 94402-19C00-22R.

94402-19C01-22R

Unavailable

34

NO DESCRIPTION AVAILABLE | FOR 38K, 32X This part replaces 94402-19C00-06X.

94402-19C01-22R

Unavailable

35

TAPE SET, LH | FOR 22R

68190-19C00-85K

Unavailable

35

TAPE SET, LH | FOR 06X

68190-19C00-2GC

Unavailable

36

EMBLEM | FOR 22R

68181-19C00-9AP

Unavailable

36

EMBLEM | FOR 06X

68181-19C00-2GB

Unavailable

37

MOLDING This part replaces 94631-19C10.

94631-49310

Unavailable

38

MOLDING

94635-19C00

$8.53

39

JOINT

94438-19C00

Unavailable

39

COVER, METER LH (WHITE) | WITH OUT DRAWING

94443-19C01-22R

Unavailable

39

SCREW | WITH OUT DRAWING This part replaces 03541-04105.

03541-0410A

$1.68

40

SCREW, FRONT

09139-06042

$5.55

41

WASHER

09160-06036

$2.28

42

SCREW, UPPER

09139-06030

$3.70

43

WASHER

09161-06021

$2.83

44

BRACKET, UPPER, RH

94560-19C00

Unavailable

45

BRACKET, UPPER, LH

94570-19C00

Unavailable

46

SCREW

09125-06055

$2.34

47

NUT

94573-19C00

Unavailable

48

SCREW

09139-06029

$5.36

49

WASHER

09160-06036

$2.28

50

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03

51

CUSHION

09320-09016

$1.97

52

COVER, UNDER RH (SILVER) This part replaces 94471-19C00-019.

94471-19C00-13L

Unavailable

53

COVER, UNDER, LH (BLACK)

94481-19C00-019

Unavailable

54

SCREW, FRONT

09139-06042

$5.55

55

WASHER

09160-06036

$2.28

56

BRACKET, UNDER, RH

94531-19C00

Unavailable

57

BRACKET, UNDER, LH

94532-19C00

Unavailable

58

CUSHION

09320-10015

$2.54

59

NUT

94590-19C00

Unavailable

60

BOLT This part replaces 01107-06165.

01500-0616A

$1.78

61

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

62

SCREW

09139-05032

$1.89

63

WASHER

09161-05017

$3.18

64

NUT COWL This part replaces 94484-32B00.

94484-24F00

$4.03

65

SCREW, REAR

09139-06029

$5.36

66

WASHER

09160-06036

$2.28

67

SPACER

09180-06097

$6.63

68

CUSHION

09320-09016

$1.97

69

SCREW This part replaces 02142-06205.

02142-0620A

$1.49

70

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.49

71

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03

72

CUSHION, LOWER

09320-09016

$1.97

73

SCREW This part replaces 02142-05164.

02142-0516A

$1.49

74

WASHER, FRONT This part replaces 08322-21055.

08322-0105A

$1.84

75

BRACKET, LOWER

94580-19C00

Unavailable

76

SCREW This part replaces 02142-05164.

02142-0516A

$1.49

77

WASHER

09161-05017

$3.18

78

NUT COWL This part replaces 94484-32B00.

94484-24F00

$4.03

79

COVER, COW UNDER FRONT (BLACK This part replaces 94475-19C00-019.

94475-19C01

Unavailable

80

LABEL,SCREEN This part replaces 68612-48B00.

68922-14F01

$4.80

81

SCREW

02142-06127

$1.49
