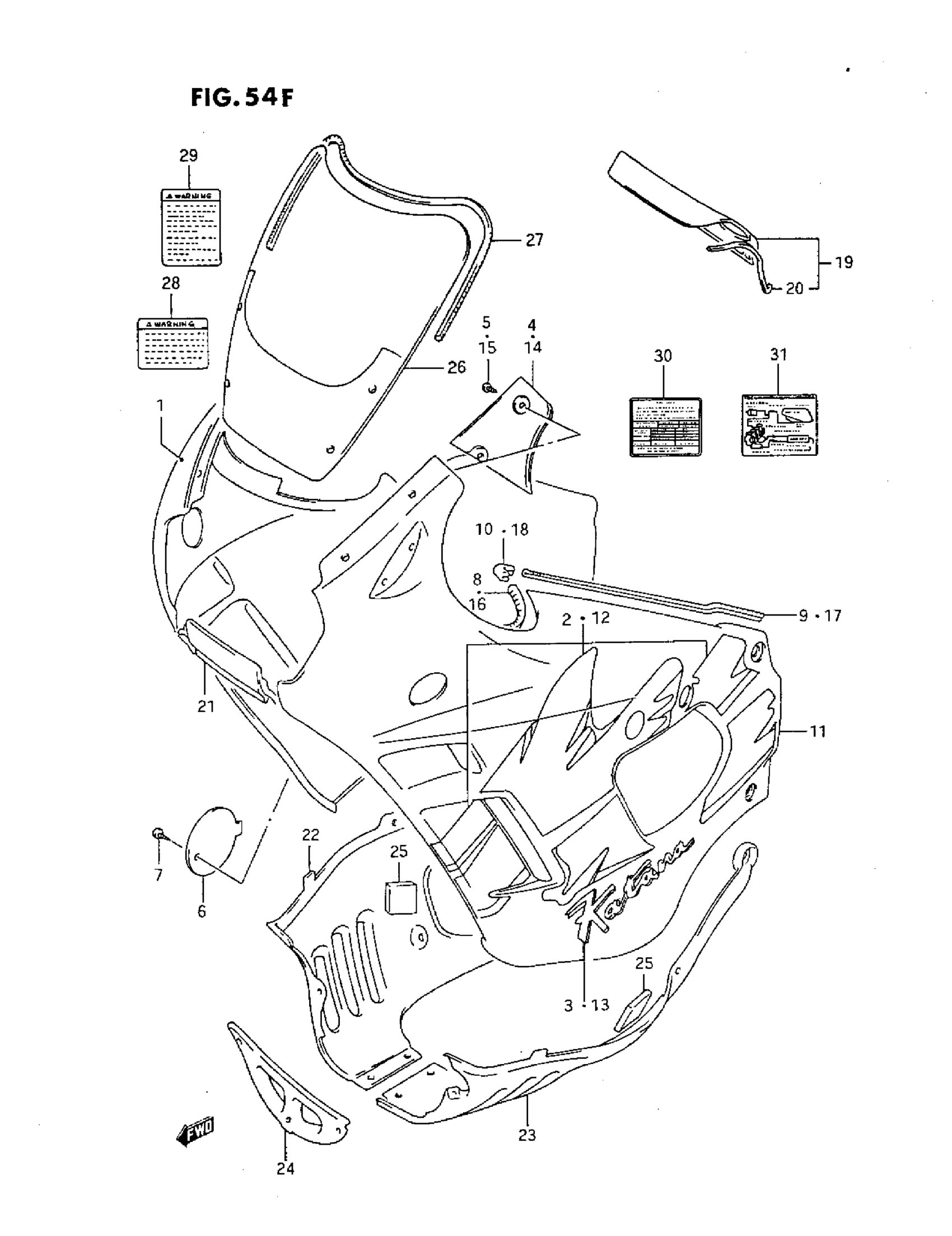

Suzuki GSX600F (1993) COWLING BODY (P) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | FOR 1MW This part replaces 94401-43C80-1MW.

94401-43C81-1MW

Unavailable

1

COVER ASSY, COW | FOR 36X This part replaces 94401-43C80-33J.

94401-43C81-33J

Unavailable

2

TAPE SET, SIDE RH | FOR 1MW

68680-20C50-A3S

Unavailable

2

TAPE SET, SIDE RH | FOR 33J

68680-20C50-A3R

Unavailable

3

EMBLEM | FOR 1MW

68681-20C10-A3U

Unavailable

3

EMBLEM | FOR 33J

68681-20C10-A3T

Unavailable

4

COVER, METER RH (RED) | FOR 1MW

94433-19C01-1MW

Unavailable

4

COVER, METER RH (BLACK) | FOR 33J

94433-19C01-33J

Unavailable

5

SCREW This part replaces 03541-04105.

03541-0410A

$1.68

6

LID, OIL (RED) | FOR 1MW

94435-19C01-1MW

Unavailable

6

LID, OIL (BLACK) | FOR 33J

94435-19C01-33J

Unavailable

7

SCREW

09139-06030

$3.70

8

MOLDING | L:1000->300

94631-49310

Unavailable

9

MOLDING

94635-19C00

$8.53

10

JOINT

94438-19C00

Unavailable

11

NO DESCRIPTION AVAILABLE | FOR 1MW This part replaces 94402-43C80-1MW.

94402-43C81-1MW

Unavailable

11

COVER ASSY, COW | FOR 36X This part replaces 94402-43C80-33J.

94402-43C81-33J

Unavailable

11

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY FOR 1MW This part replaces 94402-43C90-1MW.

94402-43C91-1MW

Unavailable

11

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY FOR 36X This part replaces 94402-43C90-33J.

94402-43C91-33J

Unavailable

12

TAPE SET, SIDE LH | FOR 1MW

68690-20C50-A3S

Unavailable

12

TAPE SET, SIDE LH | FOR 33J

68690-20C50-A3R

Unavailable

12

TAPE SET, SIDE LH | CALIFORNIA ONLY FOR 1MW

68690-20C60-A3S

Unavailable

12

TAPE SET, SIDE LH | CALIFORNIA ONLY FOR 33J

68690-20C60-A3R

Unavailable

13

EMBLEM | FOR 1MW

68681-20C10-A3U

Unavailable

13

EMBLEM | FOR 33J

68681-20C10-A3T

Unavailable

14

COVER, METER LH (RED) | FOR IMW

94443-19C01-1MW

Unavailable

14

COVER, METER LH (BLACK) | FOR 33J

94443-19C01-33J

Unavailable

15

SCREW This part replaces 03541-04105.

03541-0410A

$1.68

16

MOLDING | L:1000->300

94631-49310

Unavailable

17

MOLDING

94635-19C00

$8.53

18

JOINT

94438-19C00

Unavailable

19

COVER, METER

94420-19C02

Unavailable

20

MOLDING, LICENSE HOLDER This part replaces 94635-19C10.

94635-19C00

$8.53

21

PANEL, COWL CENTER (RED) | FOR 1MW

94421-19C01-1MW

Unavailable

21

PANEL, COWL CENTER (BLACK) | FOR 36X

94421-19C01-33J

Unavailable

22

COVER, COWL UNDER RH (RED) | FOR 1MW

94471-19C00-1MW

Unavailable

22

COVER, COWL UNDER RH (BLACK) | FOR 36X

94471-19C00-33J

Unavailable

23

COVER, COWL UNDER LH (RED) | FOR 1MW

94481-19C00-1MW

Unavailable

23

COVER, COWL UNDER LH (BLACK) | FOR 36X

94481-19C00-33J

Unavailable

24

COVER, COWL UNDER FRONT (BLACK) | FOR 1MW, 33J

94475-19C01

Unavailable

25

CUSHION, REAR BAG This part replaces 94475-48B10.

94915-44E00

$12.65

26

SCREEN, WINDOW

94610-19C60

Unavailable

27

MOLDING | ->94631-18D01 L:800->600 This part replaces 94631-19C30.

94631-18D01

Unavailable

28

LABEL,GENERAL W This part replaces 68319-40C00.

68319-33E02

$7.25

29

LABEL,SCREEN This part replaces 68612-48B00.

68922-14F01

$4.80

30

NO DESCRIPTION AVAILABLE This part replaces 68332-19C00.

68332-19C12

Unavailable

31

LABEL, VACUUM HOSE ROUTING | CALIFORNIA ONLY

68387-17C00

Unavailable
