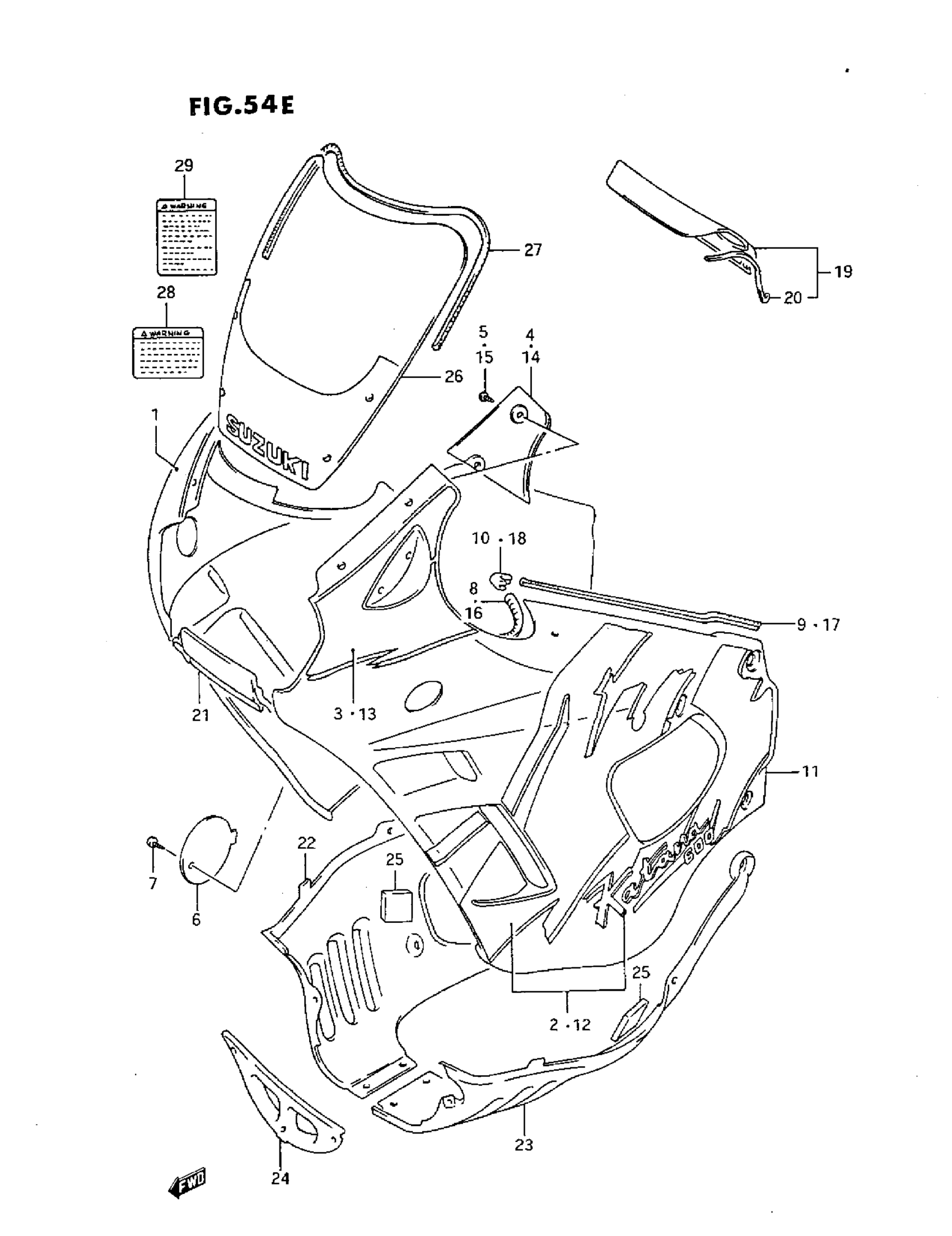

Suzuki GSX600F (1993) COWLING BODY (N) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 94401-43C50-19A.

94401-43C51-19A

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 94401-43C50-33J.

94401-43C51-33J

Unavailable

2

TAPE SET, SIDE RH | FOR 19A

68680-43C00-1NP

Unavailable

2

TAPE SET, SIDE RH | FOR 33J

68680-43C00-1NR

Unavailable

3

TAPE, SIDE UPPER RH | FOR 19A

68685-20C50-K45

Unavailable

3

TAPE, SIDE UPPER RH | FOR 33J

68685-20C50-K46

Unavailable

4

COVER, METER RH (RED) | FOR 19A

94433-19C01-19A

Unavailable

4

COVER, METER RH (BLACK) | FOR 33J

94433-19C01-33J

Unavailable

5

SCREW This part replaces 03541-04105.

03541-0410A

$1.68

6

LID, OIL (RED) | FOR 19A

94435-19C01-19A

Unavailable

6

LID, OIL (BLACK) | FOR 33J

94435-19C01-33J

Unavailable

7

SCREW

09139-06030

$3.70

8

MOLDING | ->94631-49310 L:1000->300 This part replaces 94631-19C10.

94631-49310

Unavailable

9

MOLDING

94635-19C00

$8.53

10

JOINT

94438-19C00

Unavailable

11

COVER ASSY,COWL This part replaces 94402-43C50-19A.

94402-43C51-19A

Unavailable

11

NO DESCRIPTION AVAILABLE This part replaces 94402-43C50-33J.

94402-43C51-33J

Unavailable

11

COVER ASSY, COWLING LH (RED) | CALIFORNIA ONLY

94402-43C60-19A

Unavailable

11

COVER ASSY, COWLING LH (BLACK) | CALIFORNIA ONLY

94402-43C60-33J

Unavailable

12

TAPE SET, SIDE LH | FOR 19A

68690-43C00-1NP

Unavailable

12

TAPE SET, SIDE LH | FOR 33J

68690-43C00-1NR

Unavailable

12

TAPE SET, SIDE LH | CALIFORNIA ONLY FOR 19A

68690-43C10-1NP

Unavailable

12

TAPE SET, SIDE LH | CALIFORNIA ONLY FOR 33J

68690-43C10-1NR

Unavailable

13

TAPE, SIDE UPPER LH | FOR 19A

68695-20C50-K45

Unavailable

13

TAPE, SIDE UPPER LH | FOR 33J

68695-20C50-K46

Unavailable

14

COVER, METER LH (RED) | FOR 19A

94443-19C01-19A

Unavailable

14

COVER, METER LH (BLACK) | FOR 33J

94443-19C01-33J

Unavailable

15

SCREW This part replaces 03541-04105.

03541-0410A

$1.68

16

MOLDING | ->94631-49310 L:1000->300 This part replaces 94631-19C10.

94631-49310

Unavailable

17

MOLDING

94635-19C00

$8.53

18

JOINT

94438-19C00

Unavailable

19

COVER, METER This part replaces 94420-19C00.

94420-19C02

Unavailable

20

MOLDING, LICENSE HOLDER This part replaces 94635-19C10.

94635-19C00

$8.53

21

PANEL, COWL CENTER (RED)

94421-19C01-19A

Unavailable

21

PANEL, COWL CENTER (BLACK)

94421-19C01-33J

Unavailable

22

COVER, COWL UNDER RH (RED)

94471-19C00-19A

Unavailable

22

COVER, COWL UNDER RH (BLACK)

94471-19C00-33J

Unavailable

23

COVER, COWL UNDER LH (RED)

94481-19C00-19A

Unavailable

23

COVER, COWL UNDER LH (BLACK)

94481-19C00-33J

Unavailable

24

COVER, COWL UNDER FRONT (BLACK) | FOR 19A, 33J

94475-19C01

Unavailable

25

CUSHION, REAR BAG This part replaces 94475-48B10.

94915-44E00

$12.65

26

SCREEN, WINDOW This part replaces 94610-19C30.

94610-19C60

Unavailable

27

MOLDING | ->94631-18001 L:800->600 This part replaces 94631-19C30.

94631-18D01

Unavailable

28

LABEL,GENERAL W This part replaces 68319-40C00.

68319-33E02

$7.25

29

LABEL,SCREEN This part replaces 68612-48B00.

68922-14F01

$4.80

30

NO DESCRIPTION AVAILABLE | WITH OUT DRAWING This part replaces 68332-19C00.

68332-19C12

Unavailable
