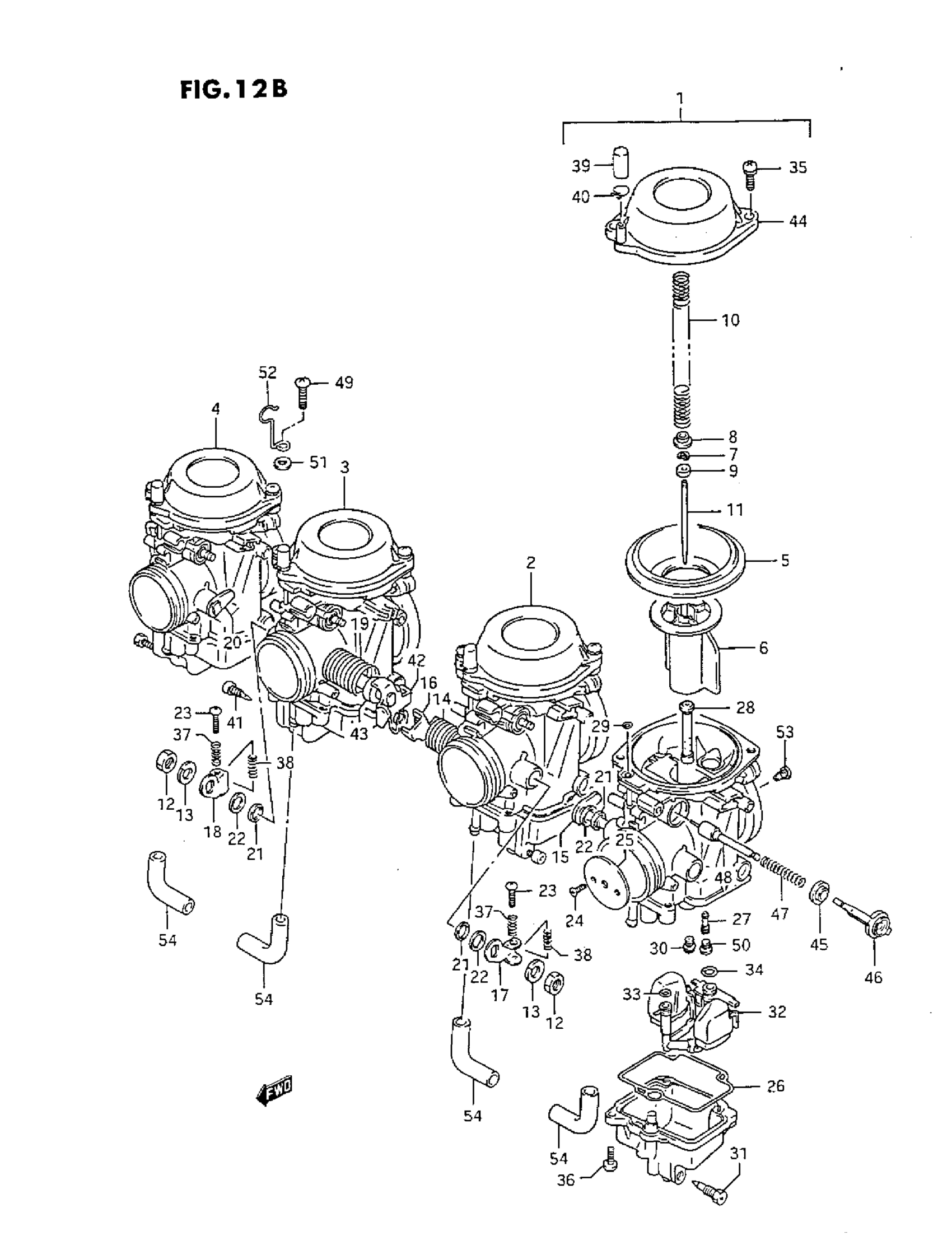

Suzuki GSX600F (1993) CARBURETOR (L/M/N/P/R) Diagram

#

Description
Price

1

CARBURETOR ASSY, LH This part replaces 13201-44C10.

13201-44C11

Unavailable

1

CARBURETOR ASSY, LH | MODEL J/K/L/M/N/P CALIFORNIA ONLY

13201-44C20

Unavailable

1

CARBURETOR ASSY, LH | MODEL R CALIFORNIA ONLY This part replaces 13201-44CA0.

13201-44CA1

Unavailable

2

CARBURETOR ASSY, ML This part replaces 13202-44C10.

13202-44C11

Unavailable

2

CARBURETOR ASSY, ML | MODEL J/K/L/M/N/P CALIFORNIA ONLY

13202-44C20

Unavailable

2

CARBURETOR ASSY, ML | MODEL R CALIFORNIA ONLY This part replaces 13202-44CA0.

13202-44CA1

Unavailable

3

CARBURETOR ASSY, MR This part replaces 13203-44C10.

13203-44C11

Unavailable

3

CARBURETOR ASSY, MR | MODEL J/K/L/M/N/P CALIFORNIA ONLY

13203-44C20

Unavailable

3

CARBURETOR ASSY, MR | MODEL R CALIFORNIA ONLY This part replaces 13203-44CA0.

13203-44CA1

Unavailable

4

CARBURETOR ASSY, RH This part replaces 13204-44C10.

13204-44C11

Unavailable

4

CARBURETOR ASSY, RH | MODEL J/K/L/M/N/P CALIFORNIA ONLY

13204-44C20

Unavailable

4

CARBURETOR ASSY, RH | MODEL R CALIFORNIA ONLY This part replaces 13204-44CA0.

13204-44CA1

Unavailable

5

.DIAPHRAGM This part replaces 13507-17C00.

13507-17C02

$29.60

6

VALVE, PISTON

13501-01D00

Unavailable

7

.E-RING

13394-40D20

$5.45

8

RING

13382-42A00

$4.48

9

RING

13387-47010

$7.22

10

SPRING

13417-42A00

$6.79

11

NEEDLE, JET (5F104)

13383-44C00

Unavailable

11

NEEDLE, JET (5F105) | MODEL J/K/L/M/N/P CALIFORNIA ONLY

13383-44C10

Unavailable

11

NEEDLE, JET (5F11) | MODEL R CALIFORNIA ONLY

13383-44C40

Unavailable

12

NUT | ML, MR This part replaces 08310-00083.

08310-0008A

$1.84

13

LOCK WASHER | ML, MR This part replaces 08321-01083.

08321-0108A

$1.84

14

SPRING | ML

13573-17C00

Unavailable

14

SPRING | ML, MODEL R CALIFORNIA ONLY

13573-44C00

Unavailable

15

SHAFT ASSY | LH

13550-44C00

Unavailable

16

SHAFT ASSY | ML

13550-44C10

Unavailable

17

LEVER | ML

13553-17C00

Unavailable

18

LEVER | MR

13553-44B00

Unavailable

19

SPRING | MR

13573-17C10

Unavailable

19

SPRING | MR, MODEL R CALIFORNIA ONLY

13573-44C10

Unavailable

20

SHAFT ASSY | RH, MODEL J/K/L/M/N/P This part replaces 13550-44C30.

13550-44B10

Unavailable

20

SHAFT ASSY | RH, MODEL R

13550-44B10

Unavailable

21

SEAL | LH, RH:L, ML:MR:2

13556-44B00

$4.43

22

WASHER

13557-47070

$3.59

23

SCREW | ML:2, MR:L

13267-44B00

$4.10

24

SCREW, THROTTLE VALVE This part replaces 13604-42A00.

13604-44080

$2.92

25

VALVE, THROTTLE (120)

13551-01D00

Unavailable

25

VALVE, THROTTLE (115) | MODEL J/K/L/M/N/P CALIFORNIA ONLY

13551-44C00

Unavailable

26

GASKET, FLOAT CHAMBER

13258-44B00

$9.78

27

JET, PILOT (32.5)

09492-32006

$11.32

28

JET, NEEDLE (P-2M) This part replaces 09494-00669.

09494-00874

Unavailable

28

JET, NEEDLE (P-1M) | MODEL R CALIFORNIA ONLY This part replaces 09494-00822.

09494-00873

Unavailable

29

O-RING

13509-17C00

$4.34

30

JET, MAIN (112.5)

09491-22015

$9.69

31

SCREW, DRAIN | LH, RH

13247-24500

Unavailable

32

FLOAT ASSY This part replaces 13250-44C00.

13250-13D00

$127.20

32

FLOAT/NEEDLE VALVE ASSY | MODEL R CALIFORNIA ONLY

13250-44C10

Unavailable

33

.O RING

13374-46710

$4.48

34

O RING This part replaces 13374-44080.

13374-35C00

$5.99

35

SCREW | LH, ML, RH:2, MR:L This part replaces 02112-75163.

02112-7516A

$2.41

36

SCREW

02112-05127

$1.97

37

SPRING | ML:2, MR:L

13271-44B00

$3.89

38

SPRING | ML;2, MR :L

13268-17C10

$6.19

39

CAP

13508-17C00

$4.74

40

CLIP This part replaces 13671-33600.

13671-05A40

$3.71

41

SCREW, DRAIN | ML, MR, MODEL J/K/L/M/N/P This part replaces 13247-38B00.

13247-02340

$4.99

41

SCREW, DRAIN | ML, MR, MODEL R This part replaces 13247-13A00.

13247-02340

$4.99

42

SHAFT ASSY | MR

13550-44C20

Unavailable

43

RING | MR

13574-28A00

$4.13

44

COVER, DIAPHRAGM

13502-01D00

$34.27

45

CAP,STARTER This part replaces 13418-17C00.

13418-17C01

$4.19

46

HOLDER

13418-17C10

$13.90

47

SPRING

13417-09110

$6.30

48

PLUNGER ASSY

13411-01D00

Unavailable

49

SCREW | MR

02112-05164

$2.63

50

PLUG

13357-34C00

$4.60

51

WASHER, FRONT | MR This part replaces 13606-00A10.

08322-0105A

$1.84

52

CLIP | MR

13671-20C20

Unavailable

53

JET, PILOT AIR (1.55)

09493-31001

$16.87

53

JET, PILOT AIR (1.45) | MODEL J/K/L/M/N/P CALIFORNIA ONLY

09493-29002

Unavailable

53

JET, PILOT AIR (1.50) | MODEL R CALIFORNIA ONLY

09493-30004

$16.87

54

HOSE | CALIFORNIA ONLY This part replaces 13684-48B00.

13684-48B11

$15.96
