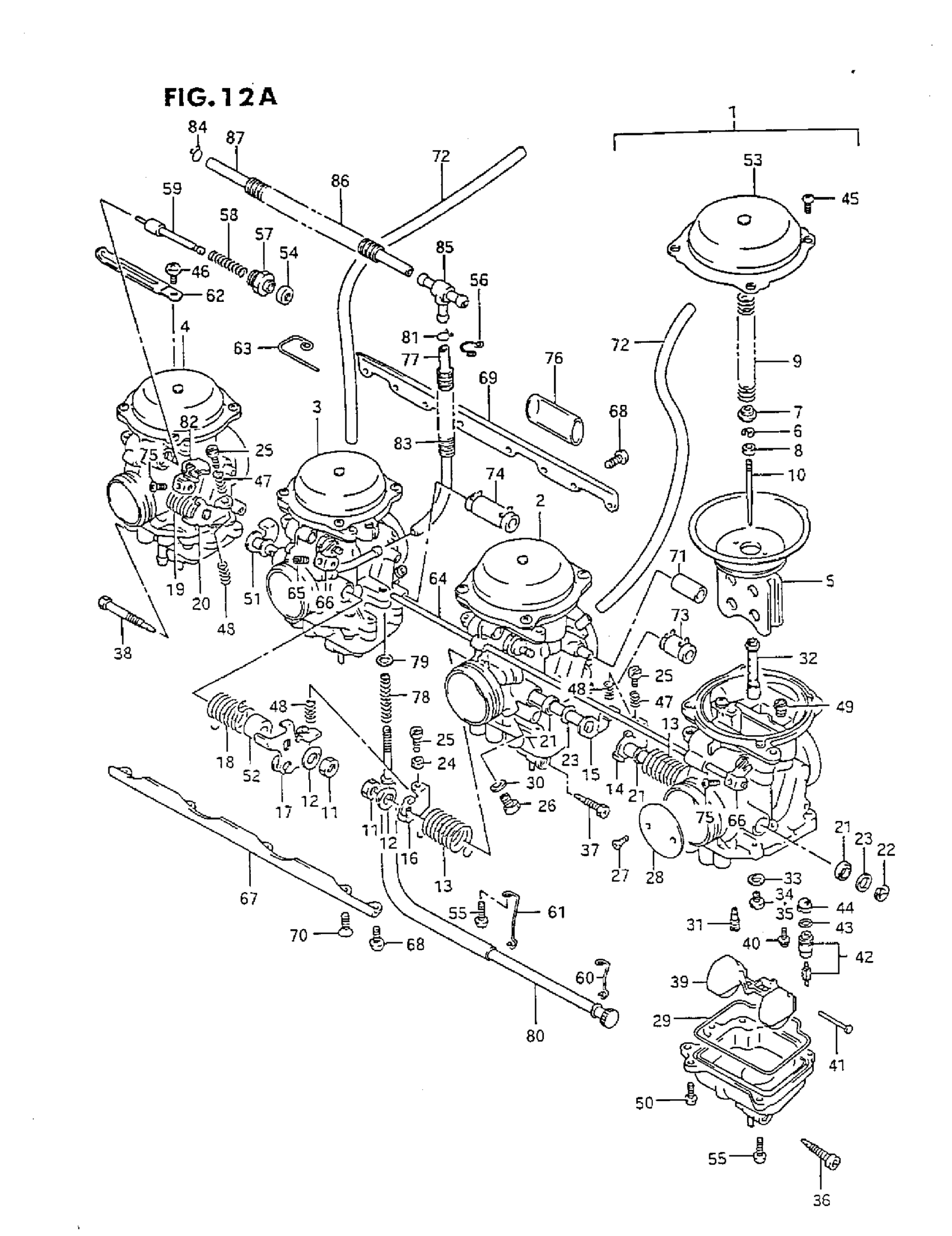

Suzuki GSX600F (1993) CARBURETOR (K) Diagram

#

Description
Price

1

CARBURETOR ASSY, LH

13201-43C10

Unavailable

1

CARBURETOR ASSY, LH | CALIFORNIA ONLY

13201-43C20

Unavailable

2

CARBURETOR ASSY, ML

13202-43C10

Unavailable

2

CARBURETOR ASSY, ML | CALIFORNIA ONLY

13202-43C20

Unavailable

3

CARBURETOR ASSY, MR

13203-43C10

Unavailable

3

CARBURETOR ASSY, MR | CALIFORNIA ONLY

13203-43C20

Unavailable

4

CARBURETOR ASSY, RH

13204-43C10

Unavailable

4

CARBURETOR ASSY, RH | CALIFORNIA ONLY

13204-43C20

Unavailable

5

DIAPHRAGM ASSY

13500-19C00

Unavailable

6

E RING

13394-10010

$5.45

7

RING

13382-42A00

$4.48

8

RING

13387-47010

$7.22

9

SPRING

13417-26B00

Unavailable

10

NEEDLE, JET (4CZ3-3) This part replaces 13383-19C20.

13383-19C10

Unavailable

10

NEEDLE, JET (4CZ5-1) | CALIFORNIA ONLY

13383-19C30

Unavailable

11

NUT | ML, MR

08310-21086

Unavailable

12

WASHER | ML, MR

13606-47070

Unavailable

13

SPRING | LH, ML

13573-28A10

Unavailable

14

SHAFT ASSY | LH

13550-28A30

Unavailable

15

SHAFT ASSY | ML

13550-28A00

Unavailable

16

LEVER | ML

13553-28A00

Unavailable

17

LEVER | MR

13555-28A00

Unavailable

18

SPRING | MR

13573-28A00

Unavailable

19

SPRING | RH

13573-28A20

Unavailable

20

SHAFT ASSY | RH

13550-28A20

Unavailable

21

SEAL This part replaces 13651-51010.

13651-51011

$2.20

22

E RING | LH, RH

13617-44080

$2.90

23

WASHER

13557-47070

$3.59

24

NUT | ML

13582-95216

Unavailable

25

SCREW | LH, ML, RH

13267-52012

Unavailable

26

SCREW

13605-73000

$11.95

27

SCREW, THROTTLE VALVE This part replaces 13604-42A00.

13604-44080

$2.92

28

VALVE, THROTTLE (130)

13551-42A30

Unavailable

29

O-RING

13251-42A00

$9.03

30

WASHER

13249-78100

$2.92

31

JET, PILOT (32.5)

09492-32006

$11.32

31

JET, PILOT (37.5) | CALIFORNIA ONLY

09492-35010

$9.32

32

JET, NEEDLE (P-8)

09494-00624

Unavailable

33

WASHER, NEEDLE JET This part replaces 13332-44080.

13382-03110

$2.80

34

JET, MAIN (137.5) | LH, RH

09491-27010

$12.13

35

JET, MAIN (135) | ML, MR

09491-27009

$11.92

36

SCREW, DRAIN | LH

13247-24500

Unavailable

37

SCREW, DRAIN | ML, MR This part replaces 13247-38B00.

13247-02340

$4.99

38

SCREW, DRAIN | RH This part replaces 13247-19C00.

13247-02340

$4.99

39

FLOAT

13250-28A00

$30.87

40

SCREW

13602-43410

$2.92

41

PIN

13254-92311

$2.07

42

VALVE ASSY, NEEDLE

13370-44500

$50.98

43

O RING This part replaces 13374-44080.

13374-35C00

$5.99

44

FILTER This part replaces 13376-84110.

13376-19F00

$10.28

45

SCREW | LH, ML, MR:4, RH:3 This part replaces 02112-04085.

02112-0408A

$1.49

46

SCREW | RH This part replaces 13602-38A20.

02142-0408B

$1.70

47

SPRING | LH, RH

13271-28A00

Unavailable

48

SPRING | LH, ML, RH This part replaces 13268-96110.

13268-96111

$4.35

49

JET, PILOT AIR (155)

09493-30005

$16.40

49

JET, PILOT AIR (150) | CALIFORNIA ONLY

09493-30003

Unavailable

50

SCREW | LH, ML:3, MR, RH:4 This part replaces 13602-27A10.

02112-04127

$2.23

51

SHAFT ASSY | MR

13550-28A10

Unavailable

52

RING | MR

13574-28A00

$4.13

53

COVER ASSY This part replaces 13502-28A00.

13502-09F00

Unavailable

54

.CAP, STARTER VALVE

13682-31210

$4.37

55

SCREW | LH, ML This part replaces 13602-19C00.

13602-48B10

$3.43

56

CLIP | ML

13692-02500

$7.17

57

.HOLDER, GUIDE

13418-44080

$10.00

58

SPRING

13417-43010

$4.34

59

PLUNGER ASSY

13411-05320

$26.80

60

CLIP | LH

13692-19C00

Unavailable

61

CLIP | ML

13692-43C00

Unavailable

62

CLAMP(L:80) | RH This part replaces 13671-05A20.

09404-06036

$1.74

63

CLIP | MR

13671-48B00

Unavailable

64

SHAFT, STARTER

13586-48B00

Unavailable

65

SCREW This part replaces 13605-49330.

13605-47070

Unavailable

66

LEVER This part replaces 13422-28A00.

13422-48B10

Unavailable

67

PLATE

13628-19C00

Unavailable

68

SCREW This part replaces 02112-05128.

02112-05127

$1.97

69

PLATE

13628-19C10

Unavailable

70

SCREW (5X14)

09126-05005

Unavailable

71

HOSE(6.5X11.5X6 | L:400->18 This part replaces 13683-49160.

09355-65001-600

$12.00

72

HOSE,5X10X600 | L:550->400 This part replaces 13684-22A00.

44421-13ER0

$10.06

73

HOSE ASSY This part replaces 13680-27A00.

13218-03D01

Unavailable

74

HOSE ASSY This part replaces 13680-28A00.

13680-28A01

Unavailable

75

SCREW This part replaces 13605-34390.

13605-09300

Unavailable

76

HOSE (16X19X100) | L:100->30

13684-43440

Unavailable

77

.HOSE This part replaces 13683-05A30.

09352-50006-600

$7.48

77

.HOSE | CALIFORNIA ONLY This part replaces 13687-17C00.

09352-50006-600

$7.48

78

SPRING

13271-28A10

Unavailable

79

WASHER

13432-47090

$2.28

80

ADJUSTER

13267-43C00

Unavailable

81

CLIP | OTHER THAN CALIFORNIA This part replaces 13671-05A30.

09401-08410

$1.84

82

LEVER

13422-48B00

Unavailable

83

HOSE (10X14X225)

13684-19C00

Unavailable

83

HOSE (10X14X225) | CALIFORNIA ONLY This part replaces 13684-19C20.

13684-19C00

Unavailable

84

CLIP | CALIFORNIA ONLY This part replaces 13671-33600.

13671-05A40

$3.71

85

.NIPPLE | CALIFORNIA ONLY

13685-48B00

$12.15

86

HOSE (10X14X225) | CALIFORNIA ONLY This part replaces 13684-19C10.

13684-19C00

Unavailable

87

HOSE (5X8X200) | CALIFORNIA ONLY

13683-19C20

Unavailable
