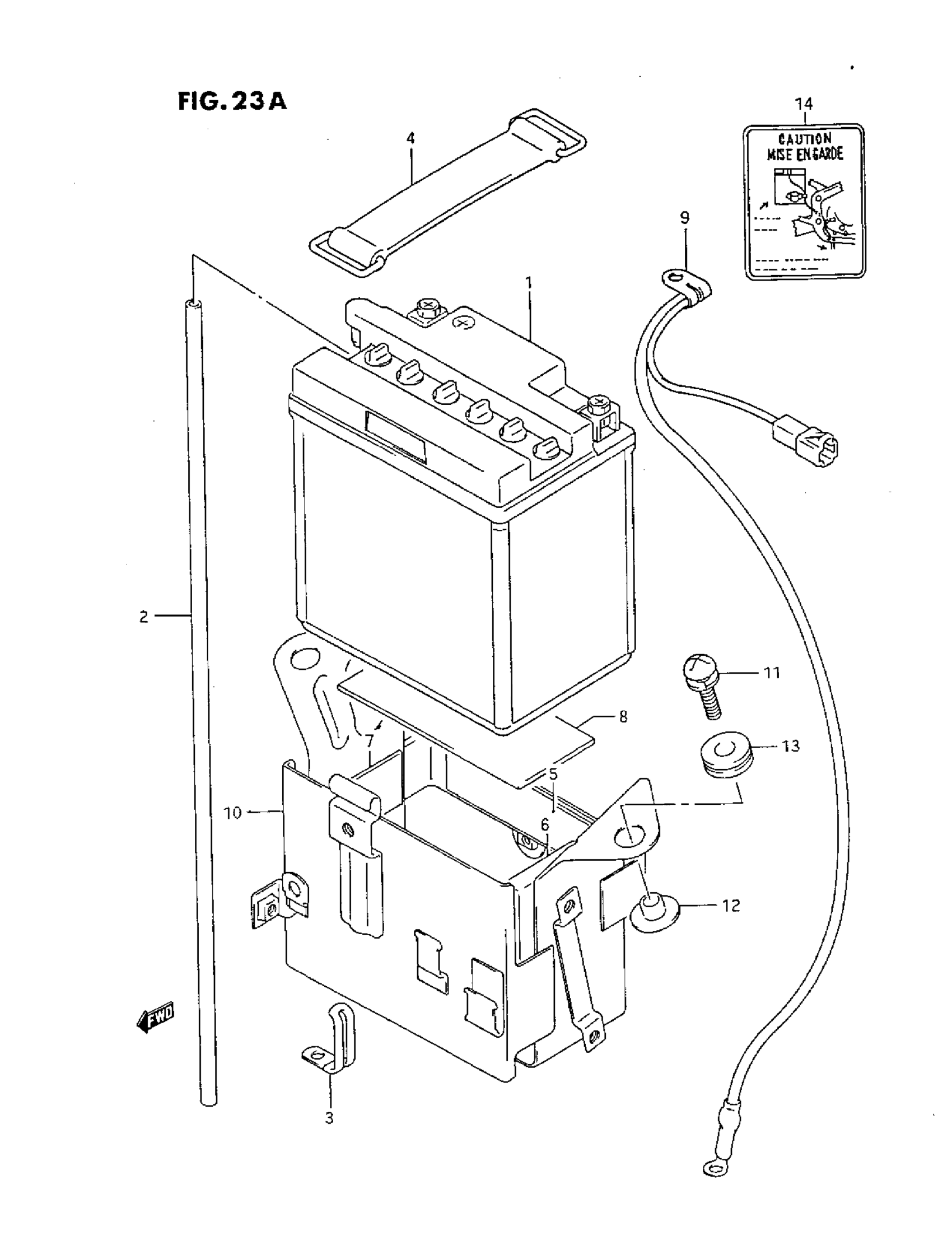

Suzuki GSX600F (1993) BATTERY (K/L/M/N/P/R) Diagram

#

Description
Price

1

BATTERY (12V,14AH) This part replaces 33610-04A40.

33610-04A20

$107.78

2

HOSE,BATTERY EX | MODEL J/K/L/M/N This part replaces 33680-31003.

33680-16A11

$6.78

2

HOSE,BATTERY EX | MODEL P/R This part replaces 33680-16A10.

33680-16A11

$6.78

3

CLAMP This part replaces 09404-06606.

09404-06039

$1.74

4

BAND, BATTERY

09462-00043

$4.11

5

CUSHION, REAR FENDER REAR This part replaces 33652-29100.

33651-37000

$4.48

6

PROTECTOR (50X50X5)

33652-20C00

$2.99

7

PROTECTOR | CUT AS REQUIRED PROFILE (30X50)

33651-37000

$4.48

8

CUSHION | CUT AS REQUIRED PROFILE (50X115)

33651-37000

$4.48

9

LEAD WIRE, BATTERY (-) This part replaces 33860-19C00.

33860-44B01

Unavailable

10

HOLDER, BATTERY

41540-19C02

Unavailable

11

BOLT This part replaces 09137-06014.

01570-0630A

$3.03

12

SPACER This part replaces 41570-19C00.

09169-06065

$4.32

13

CUSHION (8.5X20X8) | MODEL J/K/L/M/N This part replaces 09320-08007.

09320-08510

$1.97

13

CUSHION (8.5X20X8) | MODEL P/R This part replaces 09320-08021.

09320-08510

$1.97

14

PLATE, BATTERY CAUTION

33690-19C10

Unavailable
