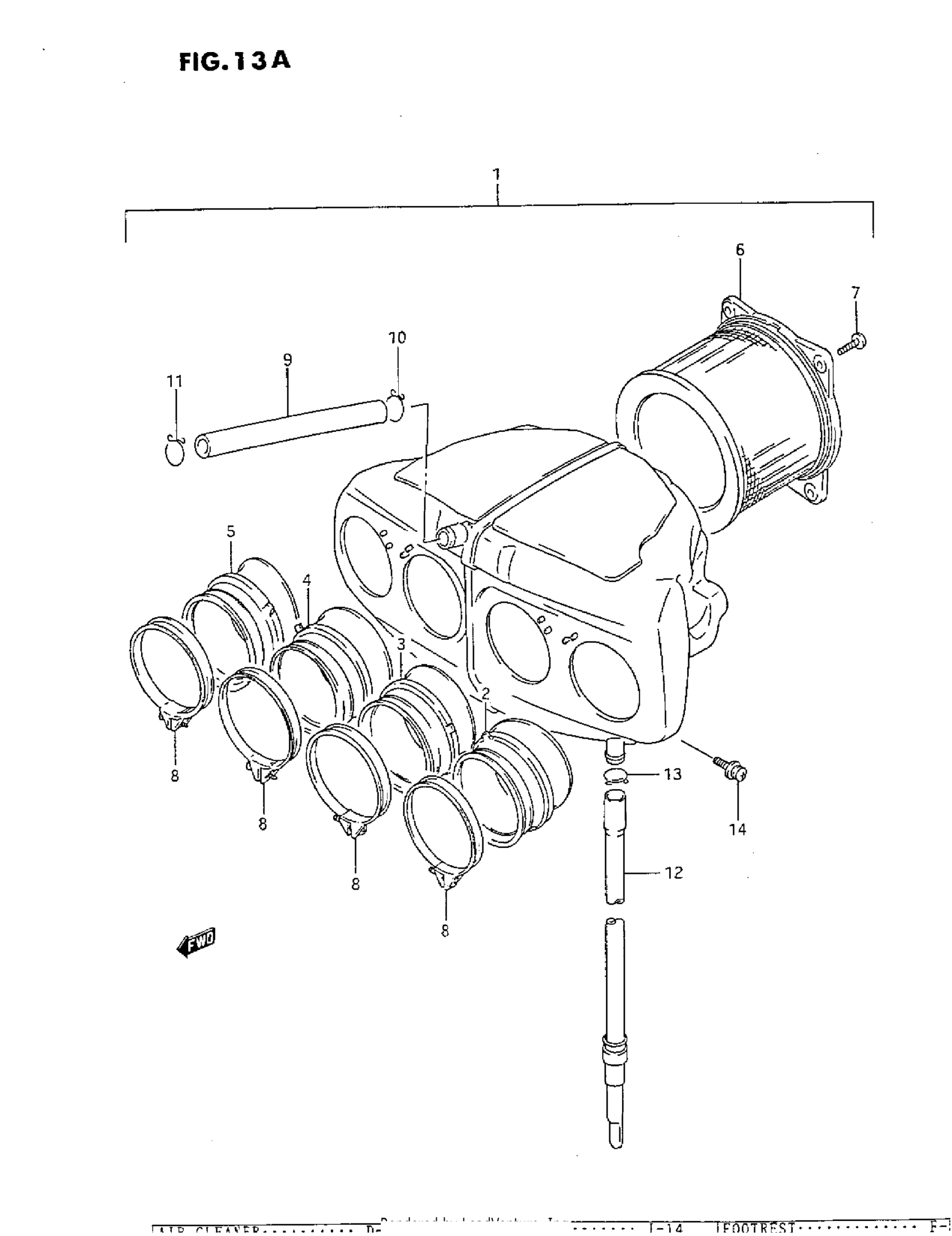

Suzuki GSX600F (1993) AIR CLEANER (L/M/N/P/R) Diagram

#

Description
Price

1

CLEANER ASSY, AIR | MODEL J/K/L/M/N/P This part replaces 13700-20C01.

13700-20C03

Unavailable

1

CLEANER ASSY, AIR | MODEL R This part replaces 13700-20C02.

13700-20C03

Unavailable

2

TUBE, OUTLET LH

13881-20C01

Unavailable

3

TUBE, OUTLET ML

13882-20C01

Unavailable

4

TUBE, OUTLET MR

13883-20C01

Unavailable

5

TUBE, OUTLET RH

13884-20C01

Unavailable

6

FILTER

13780-20C00

$68.82

7

.SCREW | MODEL J/K/L/M/N/P This part replaces 02142-05124.

02142-0512A

$1.41

7

.SCREW | MODEL R This part replaces 02142-05123.

02142-0512A

$1.41

8

CLAMP This part replaces 13826-20C00.

09402-66208

$5.21

9

TUBE, BREATHER

13853-19C00

$17.40

10

CLIP This part replaces 13828-37300.

09401-16401

$2.97

11

CLIP

09401-14301

$2.17

12

TUBE,DRAIN This part replaces 13870-11477.

13870-11459

$15.27

13

CLIP This part replaces 13824-00A00.

09401-13409

$2.20

14

SCREW This part replaces 02112-76163.

02112-7616A

$2.21
