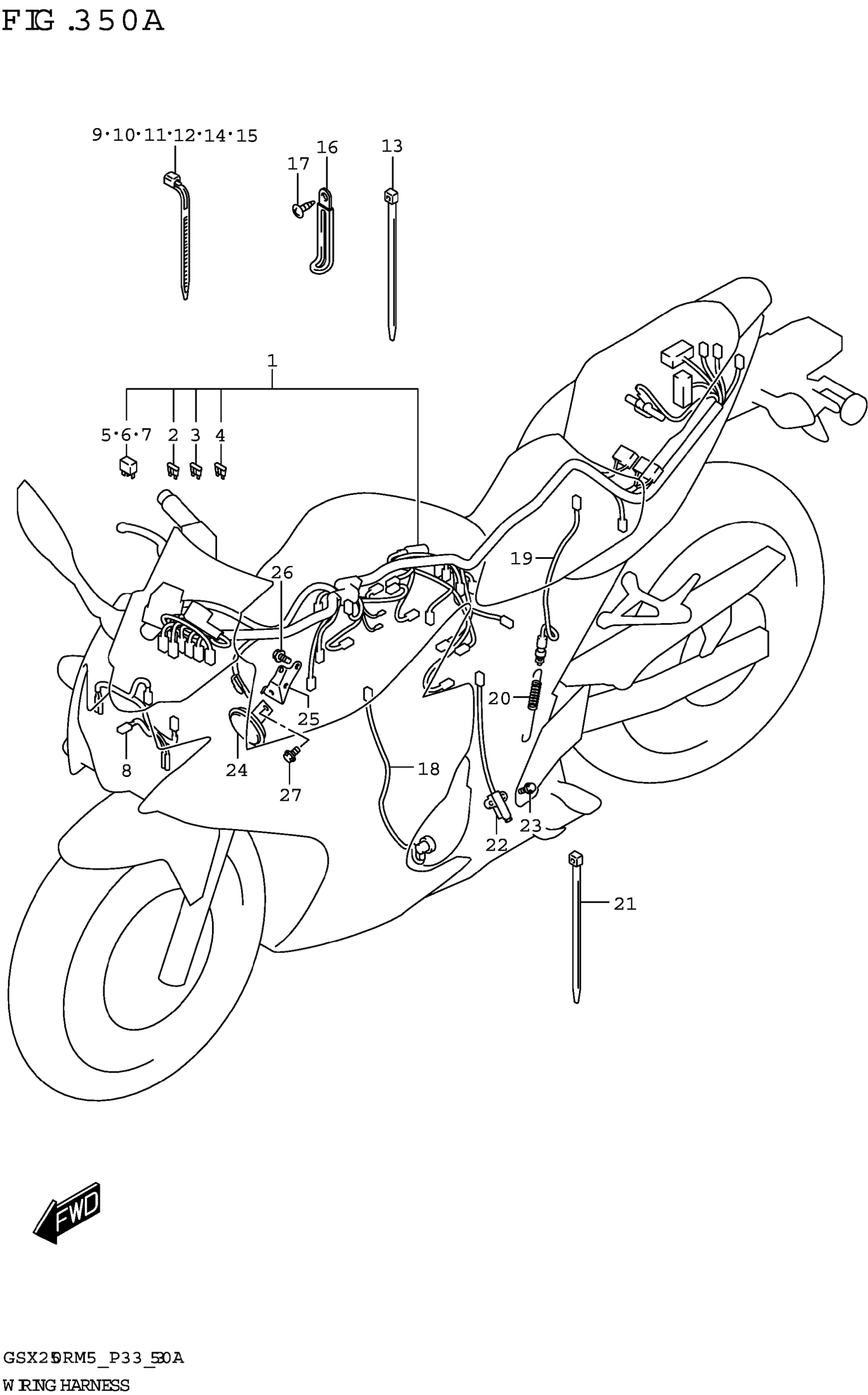

Suzuki GSX250RRLJM5 (2025) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS,WIRING

36610-20KK0

$1,067.97

2

.FUSE (10A)

09481-10504

$2.06

3

.FUSE (15A)

09481-15504

$2.07

4

.FUSE (25A)

09481-25504

$2.75

5

.RELAY ASSY | FUEL PUMP

38860-42J00

$43.20

6

.RELAY ASSY | FAN MOTOR

38860-42J00

$43.20

7

.RELAY ASSY | SIDE STAND

38860-42J00

$43.20

8

HARNESS,WIRING NO.2

36620-20K20

$38.63

9

CLAMP (L:190)

09407-19401

$3.05

10

CLAMP,WIRING HARNESS

36990-32G10

$2.45

11

CLAMP,WIRING HARNESS (L:125)

36990-32G20

$2.45

12

CLAMP,WIRING HARNESS (L:95)

36990-32G30

Unavailable

13

CLAMP This part replaces 09407-20405.

09407-25402

$4.64

14

CLAMP,WIRING HARNESS

36990-45H30

Unavailable

15

CLAMP,WIRING HARNESS (L:200)

36990-48H00

$2.93

16

CLAMP (L:45)

09404-06031

$1.72

17

SCREW

03541-0516A

$1.49

18

WIRE,OIL PRESSURE SWITCH LEAD

36851-20K01

$15.05

19

SWITCH ASSY,STOP LAMP

37740-45D00

$18.27

20

SPRING,BRAKE LAMP SWITCH

43232-20K00

$3.75

21

CLAMP This part replaces 09407-20405.

09407-25402

$4.64

22

SWITCH ASSY,SIDE STAND

37840-18J02

$52.92

23

BOLT

01550-0620B

$2.39

24

HORN ASSY

38500-48H31

$17.98

25

PLATE,HORN

38590-48H10

Unavailable

26

BOLT

01550-0612B

$2.39

27

BOLT

01550-0812B

$2.73
