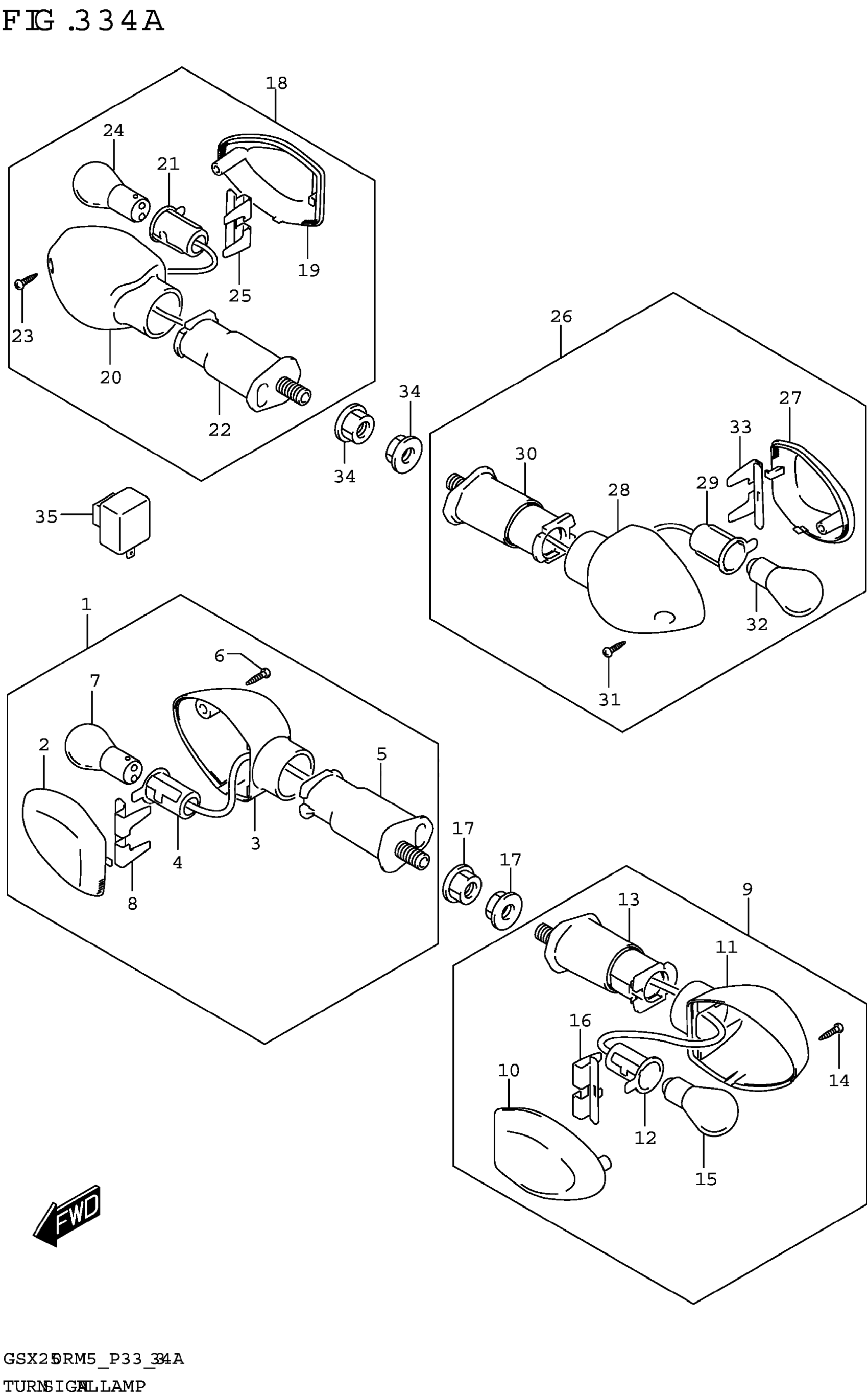

Suzuki GSX250RRLJM5 (2025) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY,FR TURNSIGNAL,R

35601-20KA1

$29.96

2

.LENS

35612-20KA0

$5.23

3

.HOUSING

35615-20KA0

$5.40

4

.CORD ASSY

35618-20KA1

$7.35

5

.RUBBER

35619-20KA0

$3.53

6

.SCREW

03211-0414A

$1.49

7

.BULB (12V21W)

09471-12045

$3.27

8

.PLATE

35616-20KA0

$3.45

9

LAMP ASSY,FR TURNSIGNAL,L

35602-20KA1

$35.95

10

.LENS

35632-20KA0

$5.68

11

.HOUSING

35635-20KA0

$5.40

12

.CORD ASSY

35638-20KA1

$7.35

13

.RUBBER

35619-20KA0

$3.53

14

.SCREW

03211-0414A

$1.49

15

.BULB (12V21W)

09471-12045

$3.27

16

.PLATE

35616-20KA0

$3.45

17

NUT

08316-1010A

$2.70

18

LAMP ASSY,RR TURNSIGNAL,R

35603-20KA1

$36.45

19

.LENS

35612-20KA0

$5.23

20

.HOUSING

35615-20KA0

$5.40

21

.CORD ASSY

35618-20KA1

$7.35

22

.RUBBER

35619-20KA0

$3.53

23

.SCREW

03211-0414A

$1.49

24

.BULB (12V21W)

09471-12045

$3.27

25

.PLATE

35616-20KA0

$3.45

26

LAMP ASSY,RR TURNSIGNAL,L

35604-20KA1

$36.27

27

.LENS

35632-20KA0

$5.68

28

.HOUSING

35635-20KA0

$5.40

29

.CORD ASSY

35638-20KA1

$7.35

30

.RUBBER

35619-20KA0

$3.53

31

.SCREW

03211-0414A

$1.49

32

.BULB (12V21W)

09471-12045

$3.27

33

.PLATE

35616-20KA0

$3.45

34

NUT

08316-1010A

$2.70

35

RELAY ASSY,TURNSIGNAL LAMP

38610-06F01

$82.18
