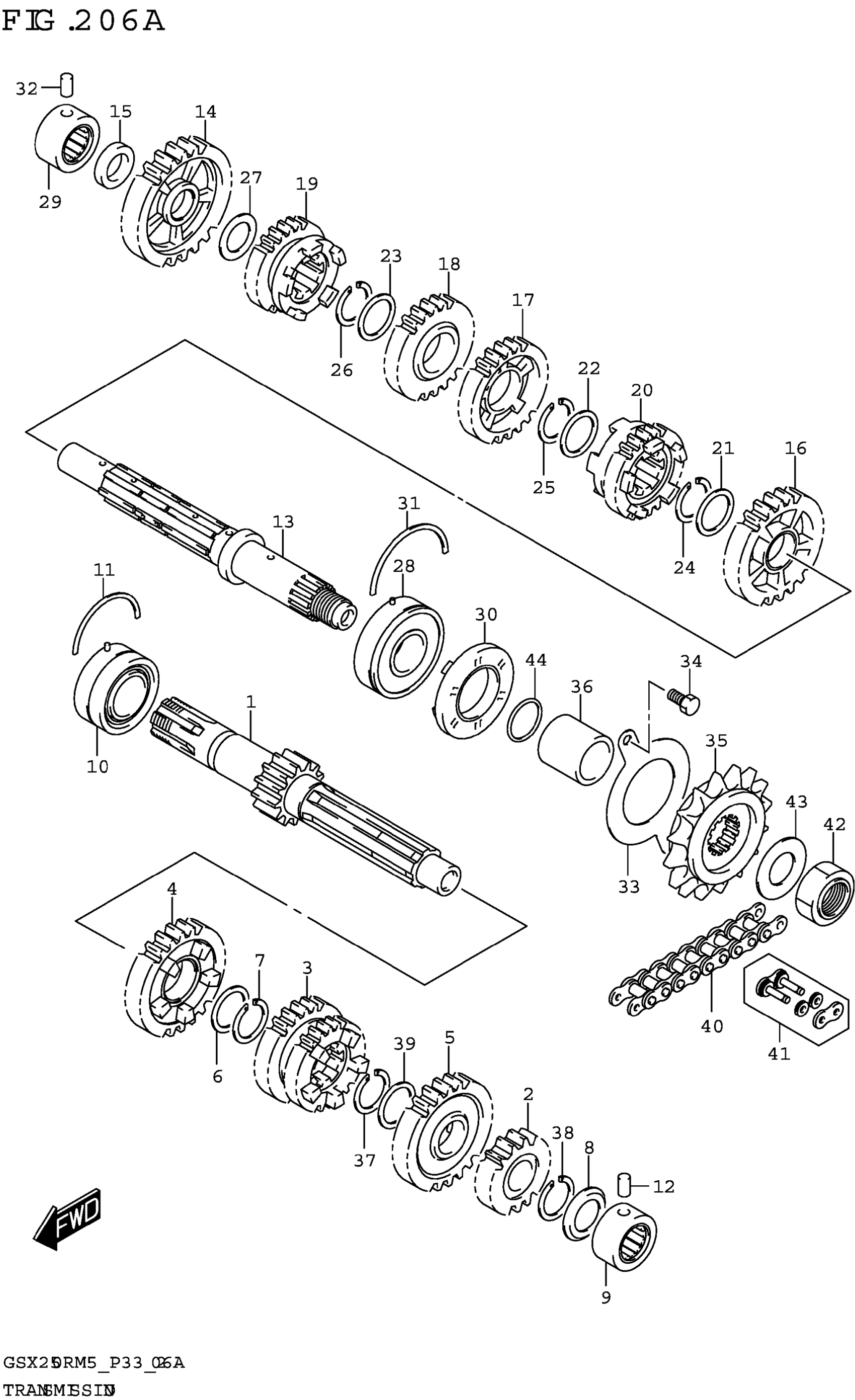

Suzuki GSX250RRLJM5 (2025) TRANSMISSION Diagram

#

Description
Price

1

SHAFT,COUNTER (NT:12)

24120-20K00

$72.52

2

GEAR,2ND DRIVE (NT:17)

24221-20K00

$15.03

3

GEAR,3RD & 4TH DRIVE (NT:10/1 | )

24231-48H00

$29.97

4

GEAR,5TH DRIVE (NT:22)

24251-48H00

$22.12

5

GEAR,6TH DRIVE (NT:26)

24261-20K00

$17.80

6

SHIM (22X28X1)

09181-22017

$2.38

7

CIRCLIP

09380-22016

Unavailable

8

SEAL,COUNTER SHAFT,L BEARING

24271-48H00

$11.10

9

BEARING (17X30X16)

09263-17050

Unavailable

10

BEARING (22X47X20.6)

09267-22001

Unavailable

11

C-RING

09390-47008

$2.15

12

PIN

04221-06129

$1.72

13

SHAFT,DRIVE

24130-48H00

$34.97

14

GEAR,1ST DRIVEN (NT:29)

24310-48H00

$26.30

15

SPACER,1ST DRIVEN GEAR

24313-48H00

$2.70

16

GEAR,2ND DRIVEN (NT:26)

24320-48H00

$25.25

17

GEAR,3RD DRIVEN (NT:26)

24331-48H00

Unavailable

18

GEAR,4TH DRIVEN (NT:24)

24341-48H00

Unavailable

19

GEAR,5TH DRIVEN (NT:20)

24351-48H00

$30.22

20

GEAR,6TH DRIVEN (NT:21)

24361-48H00

$21.93

21

SHIM (22X28X1)

09181-22017

$2.38

22

SHIM (22X28X1)

09181-22017

$2.38

23

SHIM (22X28X1)

09181-22017

$2.38

24

CIRCLIP

09380-22016

Unavailable

25

CIRCLIP

09380-22016

Unavailable

26

CIRCLIP

09380-22016

Unavailable

27

WASHER (17X26X1) This part replaces 08211-17262.

09181-17167

$2.96

28

BEARING (22X56X16)

09262-22039

Unavailable

29

BEARING (17X30X16)

09263-17050

Unavailable

30

SEAL,OIL (30X56X9.5)

09283-30L01

$8.48

31

C-RING

09390-56002

$2.30

32

PIN

04221-06129

$1.72

33

RETAINER,DRIVE SHAFT OIL SEAL

24741-48H00

$3.97

34

BOLT

01500-0612A

$1.78

35

SPROCKET,ENGINE (NT:14)

27510-48H20

$20.62

36

SPACER,ENGINE SPROCKET

27531-48H01

$8.30

37

CIRCLIP

09380-22016

Unavailable

38

CIRCLIP

09380-22016

Unavailable

39

SHIM (22X28X1)

09181-22017

$2.38

40-1

CHAIN,DRIVE (DID 520VF)

27600-48H11-116

Unavailable

40-2

CHAIN,DRIVE (RK 520KL02)

27600-48H40-116

$212.58

41-1

JOINT SET,CHAIN (DID)

27620-48H11

$32.63

41-2

JOINT SET,CHAIN (RK)

27620-48H40

$32.63

42

NUT,ENGINE SPROCKET

27521-48H00

$6.35

43

WASHER,ENGINE SPROCKET (22X36 | 1)

27513-48H00

$2.22

44

O RING (D:2.5,ID:21)

09280-21008

$1.91
