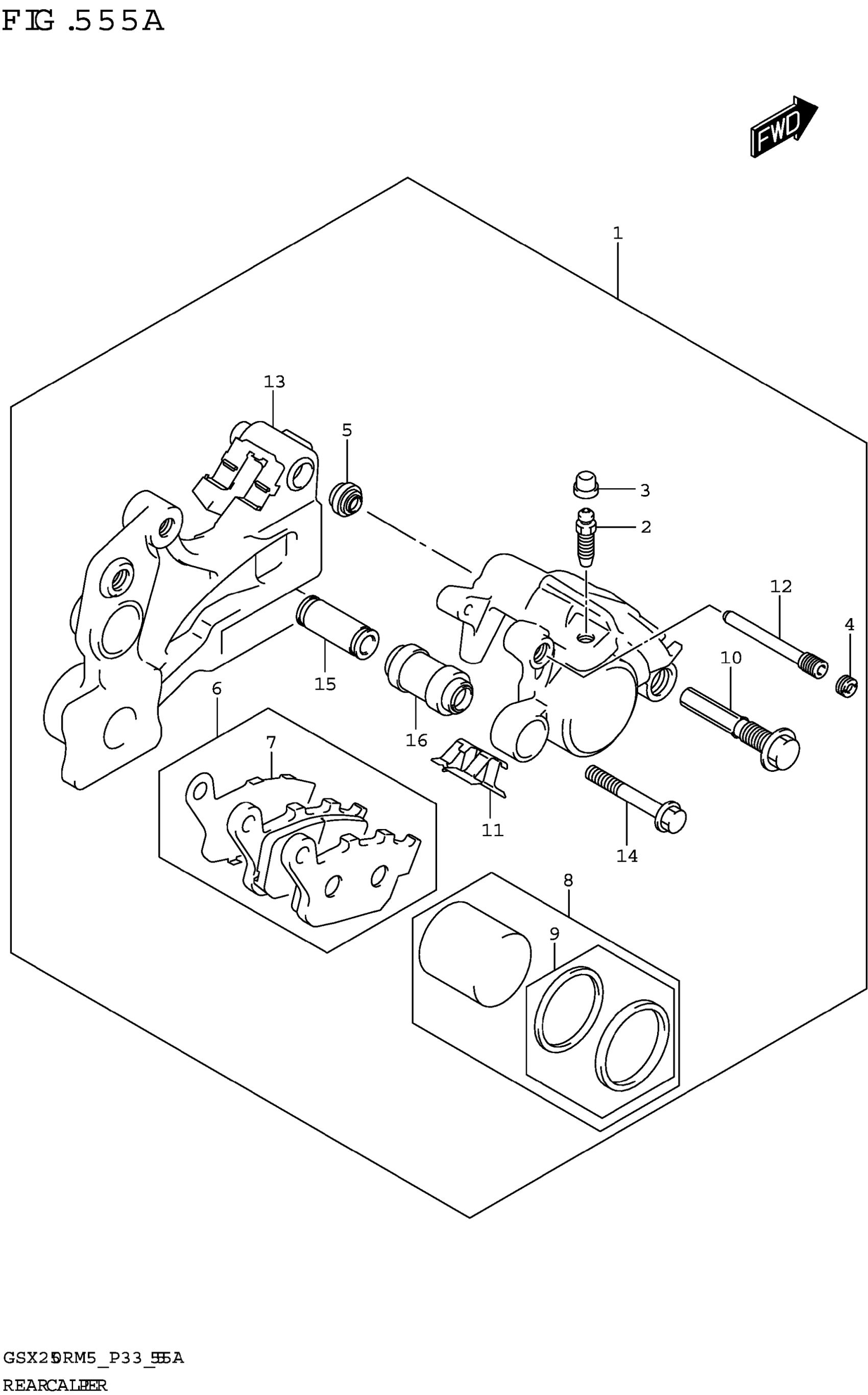

Suzuki GSX250RRLJM5 (2025) REAR CALIPER Diagram

#

Description
Price

1

CALIPER ASSY,REAR

69100-48H30

$532.78

2

.BLEEDER

59121-01A00

$8.35

3

.CAP,BLEEDER

59122-46H00

$4.36

4

.PLUG,PIN

59146-21E10

$5.88

5

.BOOT

59303-14500

$5.29

6

.PAD & SHIM SET

69100-48830

$116.62

7

..SHIM

69134-20K00

$48.08

8

.PISTON SET

69101-44860

$68.15

9

..SEAL SET,PISTON

69100-04820

$8.64

10

.BOLT

69105-04F00

$13.86

11

.SPRING,PAD

69115-06G00

$13.29

12

.PIN,PAD

69141-40F00

$29.01

13

.BRACKET

69150-48H10

$138.20

14

.BOLT

69182-04F00

$8.93

15

.SLEEVE

69185-04F00

$20.88

16

.BOOT,SLEEVE

69186-04F00

$13.01
