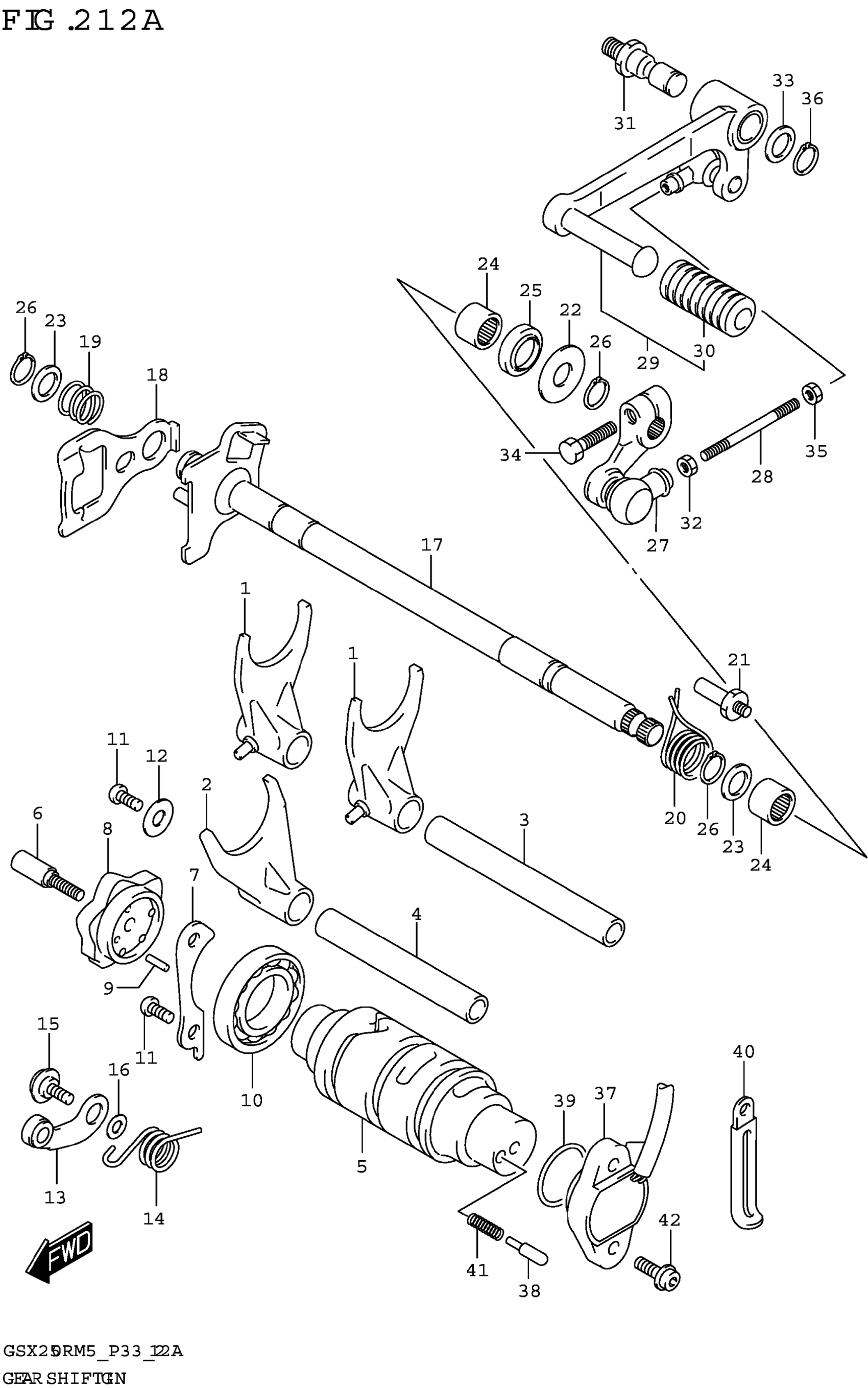

Suzuki GSX250RRLJM5 (2025) GEAR SHIFTING Diagram

#

Description
Price

1

FORK,GEAR SHIFT NO.1

25211-48H00

Unavailable

2

FORK,GEAR SHIFT NO.2

25221-48H00

$12.15

3

SHAFT,GEAR SHIFT FORK NO.1

25411-48H00

$5.36

4

SHAFT,GEAR SHIFT FORK NO.2

25421-48H00

$4.24

5

CAM,GEAR SHIFT

25311-48H00

$41.88

6

STOPPER,SHIFT CAM DRIVE PLATE

25312-48H00

Unavailable

7

RETAINER,SHIFT CAM BRG NO.1

25341-48H00

$1.78

8

PLATE,GEAR SHIFT CAM

25380-48H10

$11.73

9

PIN (3X9.8)

09261-03002

Unavailable

10

BEARING (25X47X8)

09262-25194

$7.40

11

SCREW

02112-0612A

$1.43

12

WASHER

08211-06183

Unavailable

13

STOPPER,GEAR SHIFT CAM

25350-48H00

$5.66

14

SPRING,GEAR SHIFT CAM STOPPER

25355-48H00

$1.68

15

BOLT (6X14.5)

09106-06131

$2.58

16

WASHER

08211-06121

$1.56

17

SHAFT,GEAR SHIFT

25510-48H00

Unavailable

18

PLATE,GEAR SHIFT CAM DRIVE

25512-48H10

$8.57

19

SPRING,GEAR SHIFT PLATE RETUR

25515-48H01

$1.96

20

SPRING,SHIFT SHAFT RETURN

25518-48H00

Unavailable

21

STOPPER,GEAR SHIFT ARM

25671-16H10

Unavailable

22

WASHER (14X29X0.8)

09160-14069

Unavailable

23

WASHER (14X22X1)

09160-14070

Unavailable

24

BEARING (14X20X12)

09263-14035

$8.12

25

SEAL,OIL (14X22X7.3)

09283-14L01

$5.02

26

CIRCLIP, SHIFT SHAFT This part replaces 08331-31149.

08331-3114A

$1.89

27

ARM,GEAR SHIFT LINK

25520-48H20

$12.57

28

ROD,GEAR SHIFT LINK

25525-20K00

$3.55

29

LEVER ASSY,GEAR SHIFT

25600-48H20

$97.32

30

.RUBBER,GEAR SHIFT PEDAL

25652-48H00

$9.48

31-1

SHAFT,GEAR SHIFT LEVER This part replaces 25617-03F20.

25617-03F80

$10.97

31-2

SHAFT,GEAR SHIFT LEVER

25617-03F80

$10.97

32

NUT

08310-0006A

$1.83

33

WASHER (12.5X20X1.0)

09160-12011

$1.48

34

BOLT

01500-0620A

$1.77

35

NUT

09140-06031

$2.35

36

CIRCLIP

08331-3112A

$1.77

37

BASE ASSY,GEAR SHIFT TERM

37730-20K01

$17.86

38

PIN

09209-05024

Unavailable

39

O-RING (D:2.4,ID:26.2)

09280-26005

$2.31

40

CLAMP (L:45)

09404-06031

$1.09

41

SPRING

09440-04010

$1.52

42

BOLT

07120-0516B

$2.62
