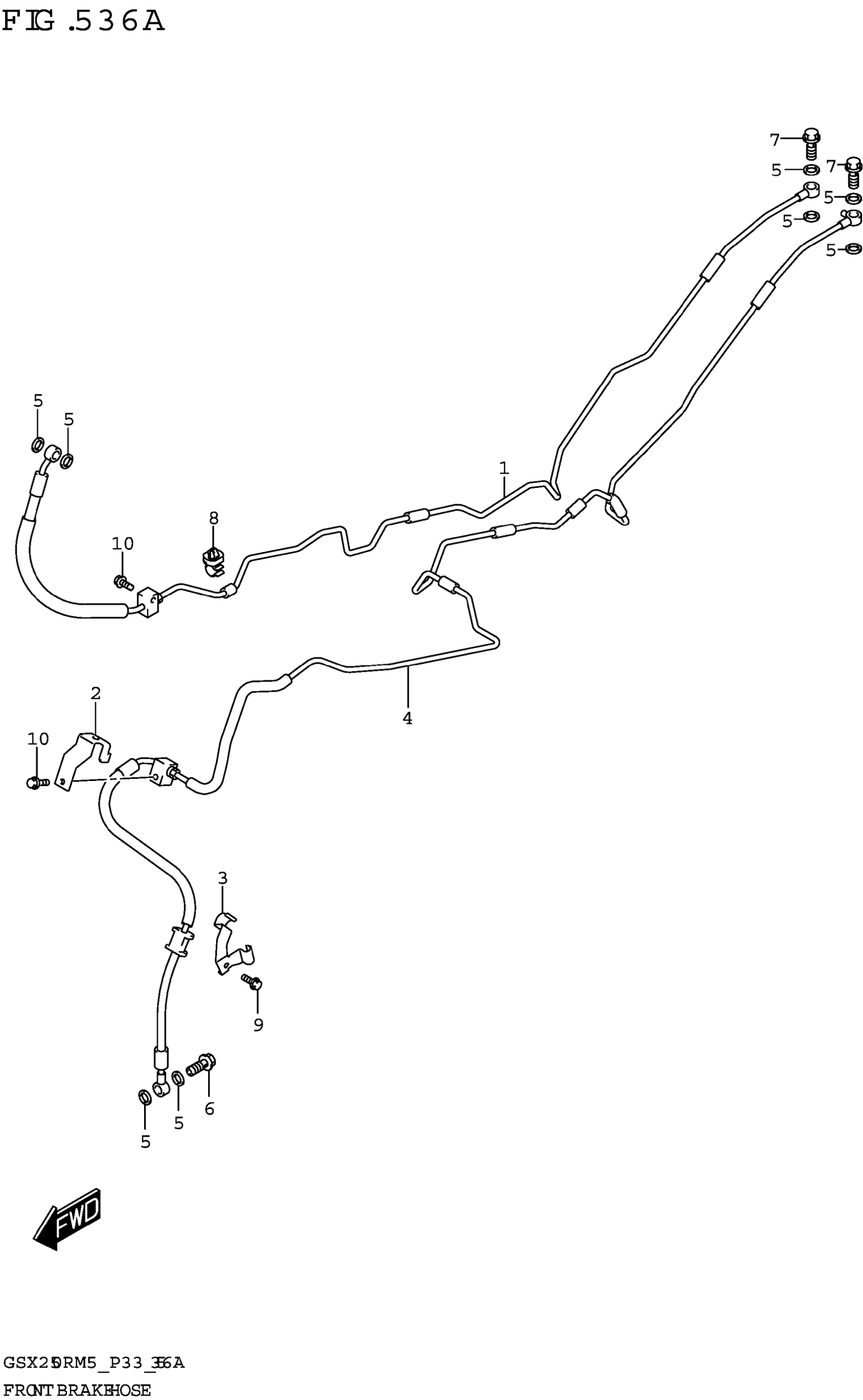

Suzuki GSX250RRLJM5 (2025) FRONT BRAKE HOSE Diagram

#

Description
Price

1

HOSE ASSY,FR BK MASTER TO UNI

59200-20K01

$202.98

2

CLAMP,FR BRAKE HOSE NO.1

59261-20K00

Unavailable

3

CLAMP,FR BRAKE HOSE NO.2

59269-20K00

Unavailable

4

HOSE ASSY,UNIT TO FR BK CLPR

59400-20K01

$198.83

5

WASHER,BRAKE FLUID (10X15X1.5

59464-48H00

$2.60

6

BOLT,BRAKE FLUID

59492-48H00

Unavailable

7

BOLT,BRAKE FLUID (M10X1.25)

59492-48H20

Unavailable

8

CLAMP

09403-07331

$3.50

9

BOLT

01547-0612A

$2.03

10

BOLT

01547-0616A

$2.03
