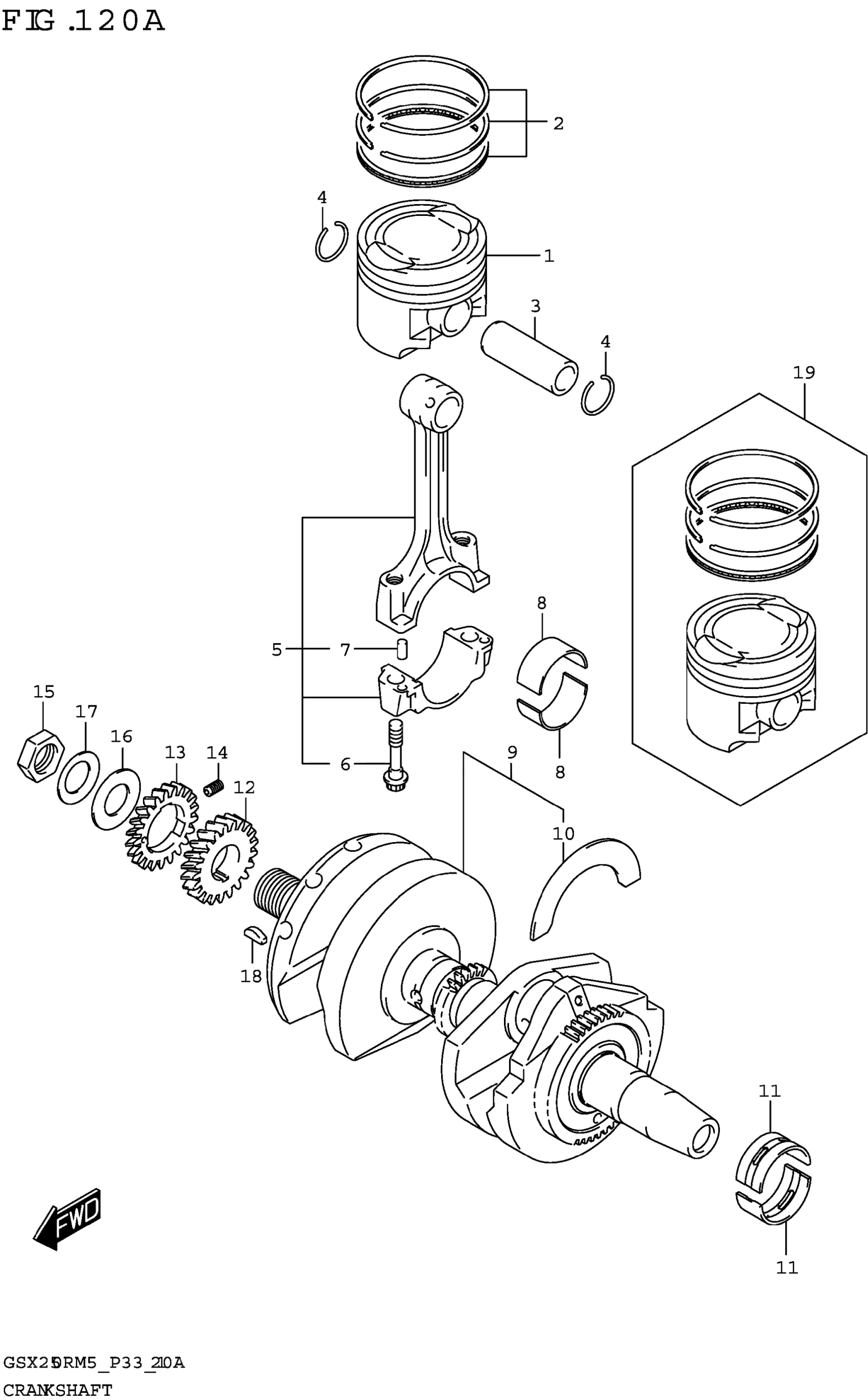

Suzuki GSX250RRLJM5 (2025) CRANKSHAFT Diagram

#

Description
Price

1

PISTON

12111-20K10-0F0

$26.57

2

RING SET,PISTON

12140-20K10

$14.35

3

PIN,PISTON

12151-48H00

$7.05

4

CIRCLIP

09381-15001

$1.49

5

CONNROD ASSY

12160-48H20

$147.00

6

.BOLT,CONNROD

12163-35F00

$10.23

7

PIN (4X13.8)

04221-04089

$1.49

8-1

BEARING,CRANK PIN

12164-39F00-0A0

$12.08

8-2

BEARING,CRANK PIN

12164-39F00-0B0

$11.63

8-3

BEARING,CRANK PIN

12164-39F00-0C0

$11.63

8-4

BEARING,CRANK PIN

12164-39F00-0D0

$14.20

9

CRANKSHAFT SET

12200-48850

$1,031.95

10-1

.BEARING,CRANK THRUST (YELLOW

12228-17E00-0E0

$11.38

10-2

.BEARING,CRANK THRUST (WHITE)

12228-17E00-0F0

$11.60

10-3

.BEARING,CRANK THRUST

12228-17E00-0G0

Unavailable

10-4

.BEARING,CRANK THRUST

12228-17E00-0H0

Unavailable

10-5

.BEARING,CRANK THRUST

12228-17E00-0J0

Unavailable

10-6

.BEARING,CRANK THRUST

12228-17E00-0K0

Unavailable

10-7

.BEARING,CRANK THRUST (NO COL | )

12228-17E00-0L0

Unavailable

11-1

BEARING,CRANKSHAFT

12229-48H10-0A0

$29.67

11-2

BEARING,CRANKSHAFT

12229-48H10-0B0

$32.70

11-3

BEARING,CRANKSHAFT

12229-48H10-0C0

$27.80

11-4

BEARING,CRANKSHAFT

12229-48H10-0D0

$32.70

12

GEAR,PRIMARY DRIVE (NT:21)

21111-48H01

$46.68

13

GEAR,PRIMARY DRIVE NO.2 (NT:2 | )

21112-48H01

$26.75

14

SPRING,PRIMARY DRIVE GEAR

21114-35C00

$4.03

15

NUT

09140-18023

Unavailable

16

WASHER (18X33X2.5)

21119-20K00

$3.08

17

WASHER

09164-18012

Unavailable

18

KEY This part replaces 08341-31049.

09420-04008

$3.42

19

PISTON SET (OS:0.5) | OPT

12100-20K20-050

Unavailable
