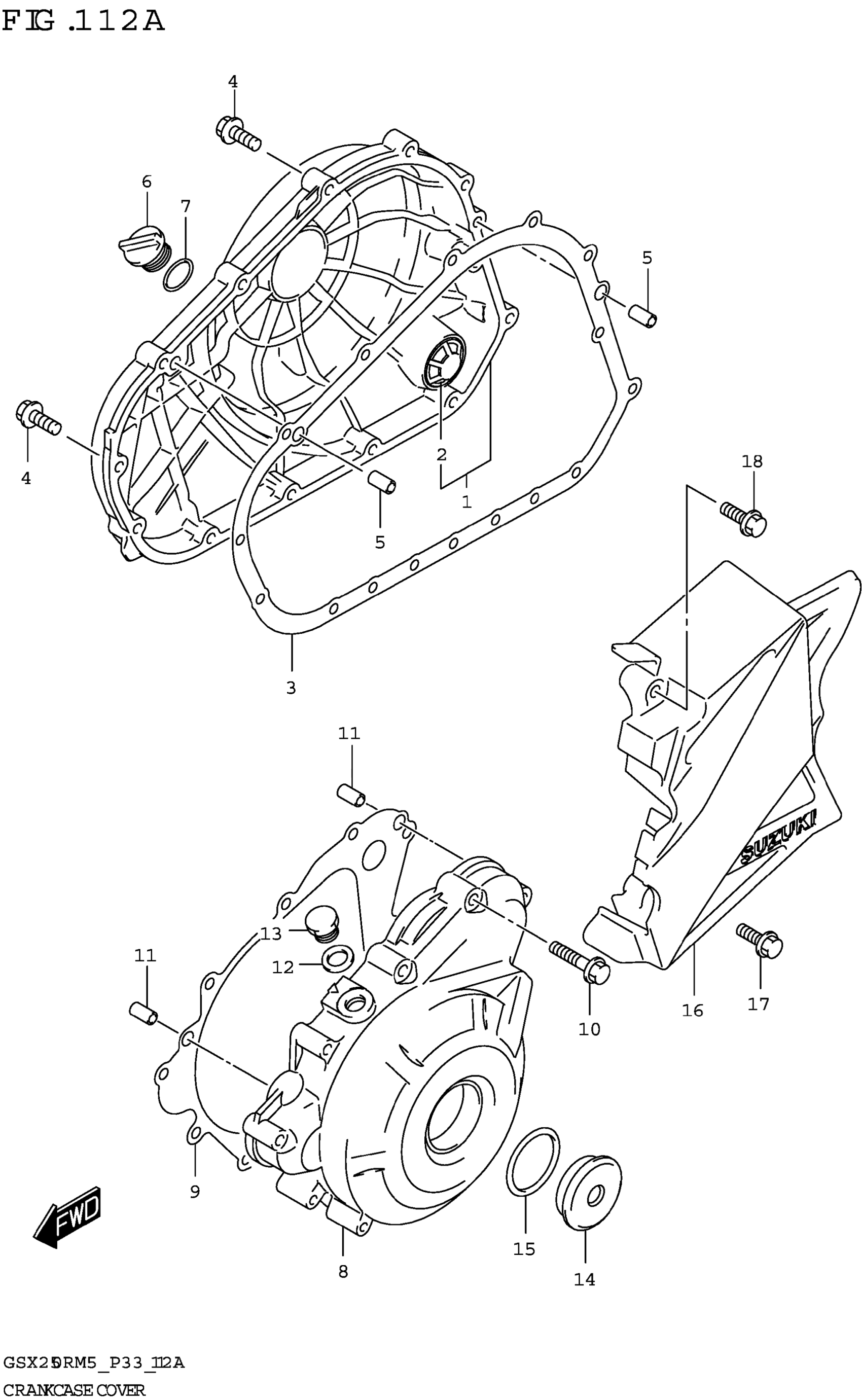

Suzuki GSX250RRLJM5 (2025) CRANKCASE COVER Diagram

#

Description
Price

1

COVER,CLUTCH

11340-20K00

$175.83

2

.LENS,OIL LEVEL CHECK

11971-48H00

$6.29

3

.GASKET,CLUTCH COVER

11482-48H00

$42.72

4

BOLT

01547-0630A

$2.32

5

PIN (8.5X18X2.3)

04211-09149

$1.65

6

PLUG,OIL FILLER

11972-48H00

$4.45

7

O-RING (D:3.1,ID:16.8)

09280-17003

$1.65

8

COVER,MAGNETO

11351-20K00

$114.48

9

.GASKET,MAGNETO COVER

11483-48H00

$23.98

10

BOLT

01547-0635A

$2.30

11

PIN (8.5X18X2.3)

04211-09149

$1.65

12

GASKET,TDC PLUG

11352-48H00

$2.60

13

PLUG (12X9)

09247-12104

$2.73

14

PLUG

09259-36030

$12.98

15

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.23

16

COVER,ENG SPROCKET

11360-20K00

Unavailable

17

BOLT

01547-0640A

$2.32

18

BOLT

01547-0630A

$2.32
