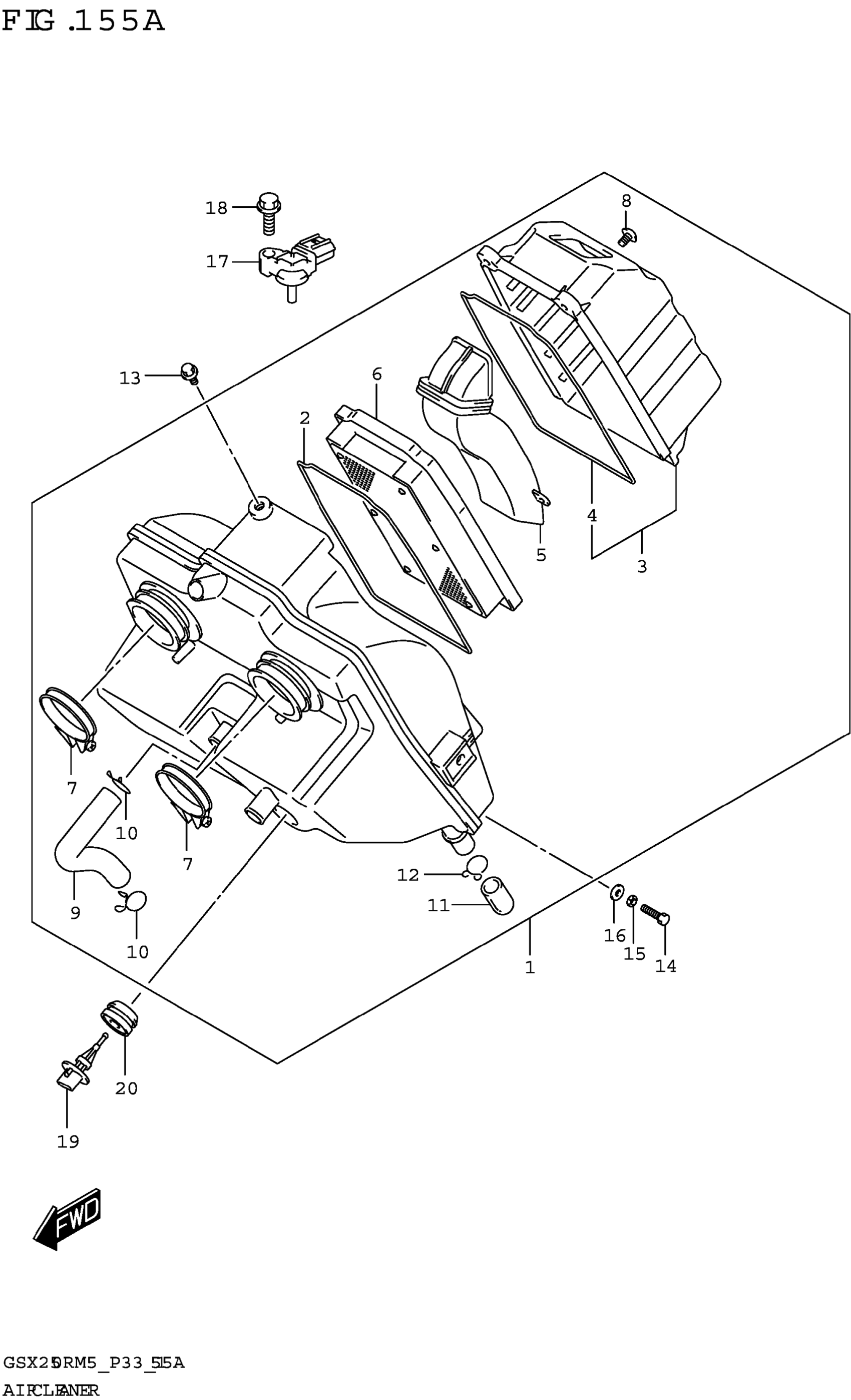

Suzuki GSX250RRLJM5 (2025) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY,AIR

13700-48H05

$106.97

2

.GASKET,AIR CLEANER

13746-48H01

$4.65

3

.CAP,AIR CLEANER

13740-48H01

Unavailable

4

.GASKET,AIR CLEANER

13746-48H01

$4.65

5

.TUBE,INLET

13891-48H01

Unavailable

6

.FILTER ASSY

13780-48H01

$16.52

7

.CLAMP

13826-48H00

$6.03

8

.SCREW

02142-0512A

$1.49

9

.TUBE,BREATHER

13853-48H01

Unavailable

10

.CLIP

13859-48H00

$6.58

11

.PLUG,DRAIN

13878-48H01

$2.53

12

.CLIP (ID:14.5)

09401-14101

$2.34

13

BOLT

01550-0610A

$1.97

14

BOLT

01500-0620A

$1.78

15

WASHER,LOCK

08321-0106A

$1.84

16

.WASHER (6.5X20X1.6)

09160-06088

$1.65

17

SENSOR,BOOST

18590-18K00

$315.08

18

BOLT

01550-0520A

$2.26

19

SENSOR,INLET AIR TEMP

13650-52G00

$107.20

20

.GROMMET,AIR TEMP SENSOR

13655-77E10

$3.85
