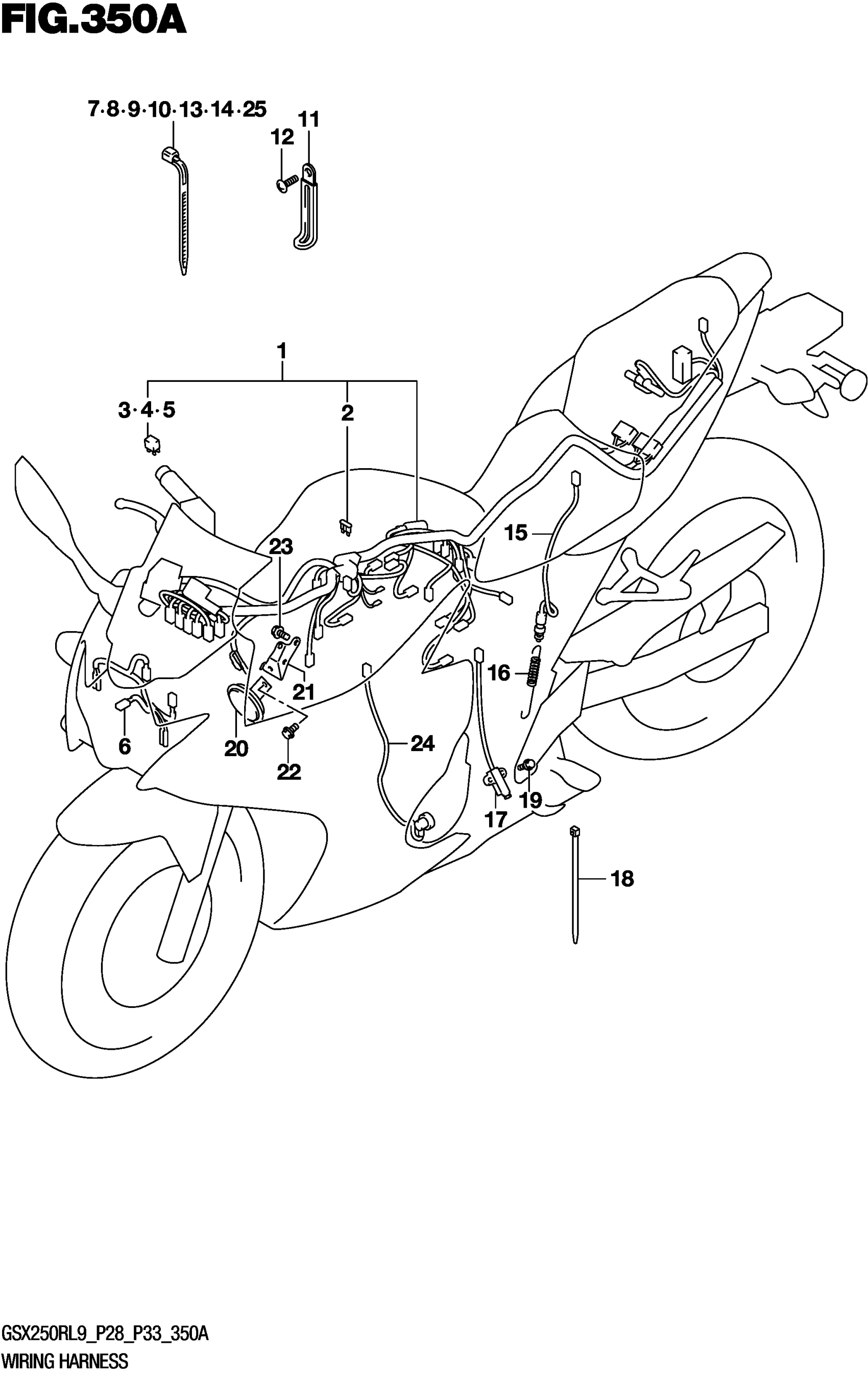

Suzuki GSX250RL9 (2019) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS, WIRING

36610-20KA0

$1,064.07

2

.FUSE (10A)

09481-10504

$2.06

3

.RELAY ASSY | FOR FUEL PUMP

38860-42J00

$43.20

4

.RELAY ASSY | FOR FAN MOTOR

38860-42J00

$43.20

5

.RELAY ASSY | FOR SIDE STAND

38860-42J00

$43.20

6

HARNESS, WIRING NO.2

36620-20K00

$53.77

7

CLAMP (L:190)

09407-19401

$3.05

8

CLAMP,WIRING HARNESS

36990-32G10

$2.45

9

CLAMP,WIRING HARNESS (L:125)

36990-32G20

$2.45

10

CLAMP,WIRING HARNESS (L:95)

36990-32G30

Unavailable

11

CLAMP This part replaces 09404-06206.

09404-06039

$1.74

12

SCREW

03541-0516A

$1.49

13

CLAMP,WIRING HARNESS (L:200)

36990-48H00

$2.93

14

CLAMP,WIRING HARNESS

36990-45H30

Unavailable

15

SWITCH ASSY, STOP LAMP This part replaces 37740-20K00.

37740-45D00

$18.27

16

SPRING,BRAKE LAMP SWITCH

43232-20K00

$3.75

17

SWITCH ASSY,SIDE STAND This part replaces 37840-18J00.

37840-18J02

$52.92

18

CLAMP (L:250)

09407-25402

$4.64

19

BOLT

01550-0620B

$2.39

20

HORN ASSY This part replaces 38500-48H30.

38500-48H31

$17.98

21

PLATE,HORN

38590-48H10

Unavailable

22

BOLT

01550-0812B

$2.73

23

BOLT

01550-0612B

$2.39

24

WIRE, OIL PRESSURE SWITCH LEA

36851-20K00

$17.85

25

CLAMP This part replaces 09407-20405.

09407-25402

$4.64
