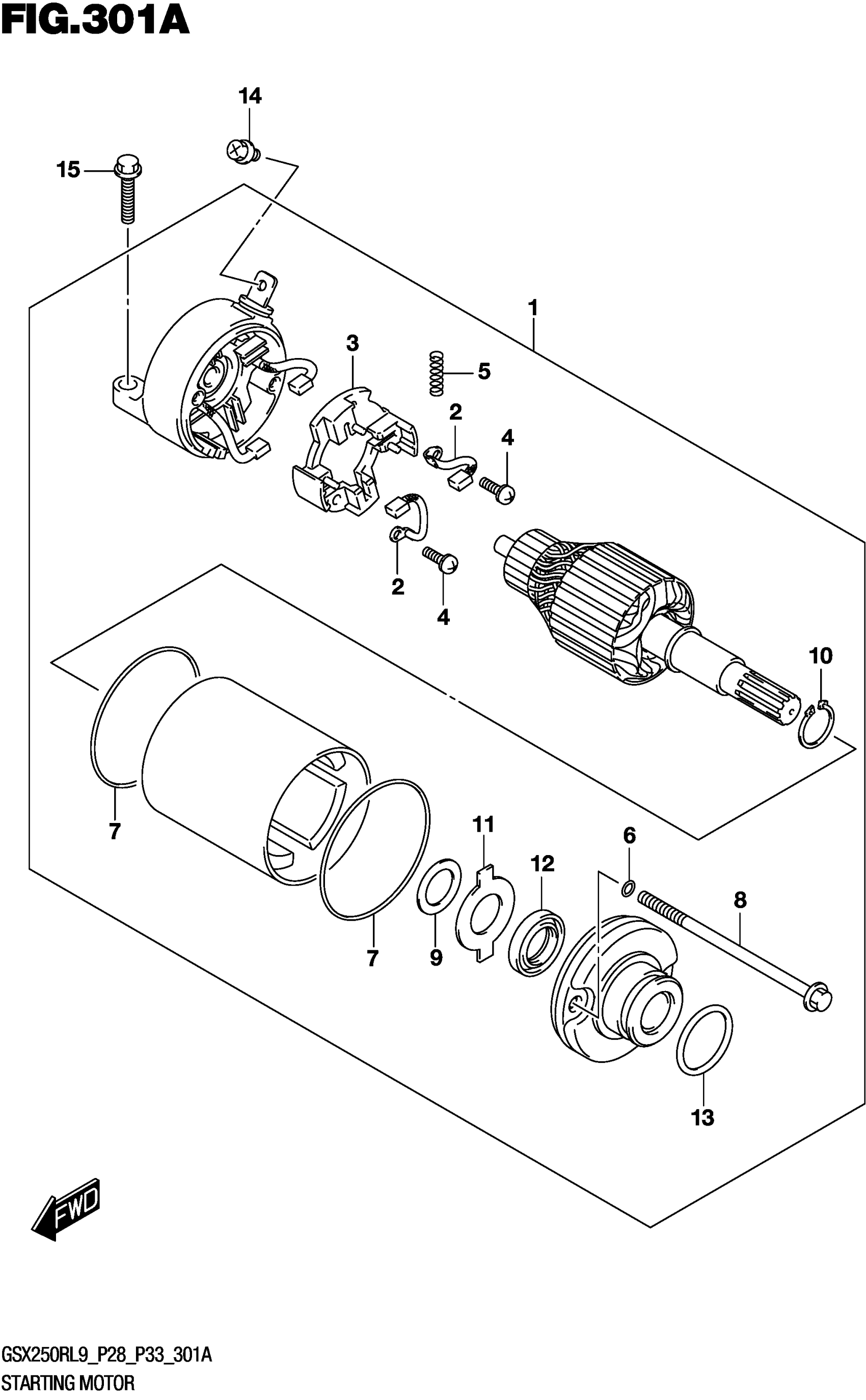

Suzuki GSX250RL9 (2019) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY,STARTING This part replaces 31100-48H00.

31100-48H01

$142.43

2

.BRUSH

31132-25H00

$9.12

3

.HOLDER,BRUSH

31133-25H00

Unavailable

4

.SCREW

31134-25H00

$1.98

5

.SPRING

31135-25H00

Unavailable

6

.O-RING

31156-25H00

$2.85

7

.O RING

31264-05530

Unavailable

8

.BOLT

31281-25H00

$6.03

9

.SHIM

31361-055A0

Unavailable

10

.RING,SNAP

31361-05530

Unavailable

11

.PLATE LOCK

31361-25H00

Unavailable

12

.SEAL,OIL

31153-05530

$15.52

13

.O-RING (D:3,ID:24.5)

09280-24003

$1.55

14

SCREW (5X8)

09137-05004

$2.17

15

BOLT

01547-0625A

$2.01
