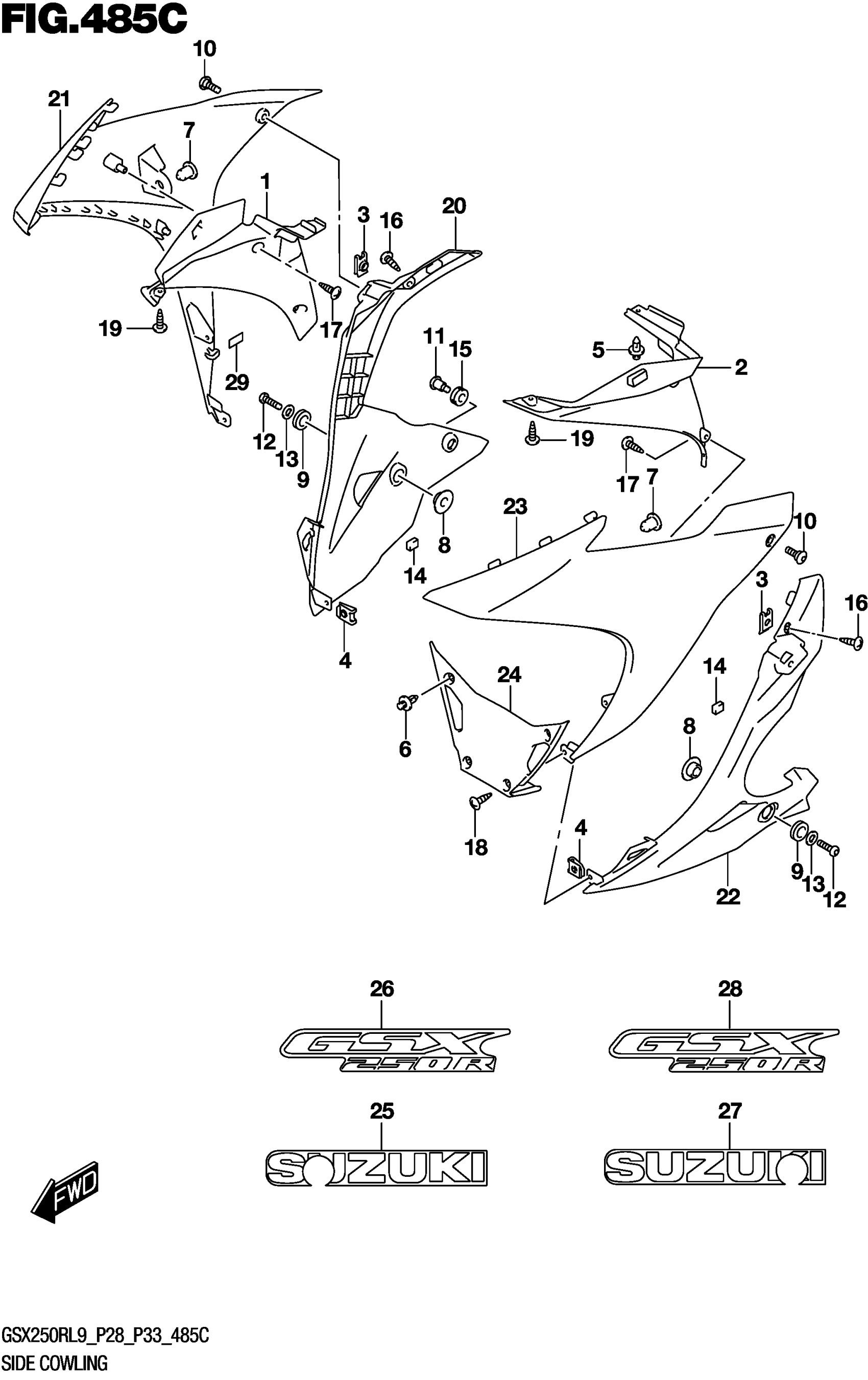

Suzuki GSX250RL9 (2019) SIDE COWLING (GSX250RL9 P33) (FOR YAY,QHW) Diagram

#

Description
Price

1

COWLING,INNER,R

94461-20K00

$21.73

2

COWLING,INNER,L

94462-20K00

$21.73

3

NUT,HEADLAMP

35155-48H00

$3.30

4

NUT

47399-48H00

$2.68

5

CLIP

48292-32GH0

$2.93

6

CLIP

48292-32GH0

$2.93

7

CUSHION,BRACE This part replaces 51827-48H00.

51827-48H01

$2.40

8

SPACER,UNDER COWL

94472-48HA1

$1.52

9

CUSHION,UNDER COWL This part replaces 94473-48HA0.

94473-48HA1

$2.08

10

SCREW (5X13)

94492-20K00

$2.67

11

SCREW,UNDER COWL,R

94476-20K00

$2.73

12

BOLT,UNDER COWL

94477-20K00

$1.47

13

WASHER,UNDER COWL

94478-20K00

$1.16

14

.CUSHION,UNDER COWL

94531-20K00

$2.08

15

CUSHION (9X18X9.5)

09320-09016

$2.01

16

SCREW

03541-0516A

$1.41

17

SCREW

03541-0516A

$1.41

18

SCREW

03541-0516B

$1.82

19

SCREW

03541-0516B

$1.82

20

COWLING,UNDER,R

94471-20K00

$40.33

21-1

COWLING, SIDE RH (BLACK)

94475-20K00-YAY

$147.93

21-2

COWLING, SIDE RH (WHITE)

94475-20K00-QHW

$147.93

22

COWLING,UNDER,L

94481-20K00

$37.82

23-1

COWLING, SIDE LH (BLACK)

94485-20K00-YAY

$144.43

23-2

COWLING, SIDE LH (WHITE)

94485-20K00-QHW

$141.77

24

COWLING,UNDER CTR

94498-20K00

$32.62

25-1

EMBLEM, "SUZUKI" RH | FOR YAY

68181-20K00-GTT

$3.48

25-1

EMBLEM, "SUZUKI" RH

68181-20K00-GTT

$3.48

25-2

EMBLEM,SUZUKI,R (WHITE,BLACK) | FOR QHW

68181-20K00-BFH

$3.48

25-2

EMBLEM,SUZUKI,R (WHITE,BLACK)

68181-20K00-BFH

$3.48

26

EMBLEM, "GSX" RH

68182-20K00-BFG

$4.57

27-1

EMBLEM, "SUZUKI" LH | FOR YAY

68191-20K00-GTT

$3.05

27-1

EMBLEM, "SUZUKI" LH

68191-20K00-GTT

$3.05

27-2

EMBLEM,SUZUKI,L (WHITE,BLACK) | FOR QHW

68191-20K00-BFH

$3.05

27-2

EMBLEM,SUZUKI,L (WHITE,BLACK)

68191-20K00-BFH

$3.05

28

EMBLEM, "GSX" LH

68192-20K00-BFG

$3.17

29

CUSHION,SIDE COWLING

94479-20K00

$5.75
