Description

Price

1-1

SWINGINGARM, REAR (BLACK)

61100-48H41-QGE

$316.13

1-2

SWINGINGARM ASSY,REAR (BLACK) This part replaces 61000-48H50-QGE.

61000-48H51-QGE

$242.85

2

.BEARING (22X29X30) This part replaces 09263-22L01.

09263-22078

$11.57

3

SHAFT,RR SWGARM PIVOT This part replaces 61211-48H10.

61211-48H11

$26.15

4

SPACER,RR SWGARM PIVOT BEARIN

61251-48H00

$21.08

5-1

COVER,RR SWGARM PIVOT DUST | HT This part replaces 61262-48H00.

61262-48H10

$3.65

5-2

COVER,RR SWGARM PIVOT DUST | NHK

61262-48H10

$3.65

6

BUFFER, CHAIN TOUCH DEFENSE

61273-48H00

$34.75

7

SPACER,RR SWGARM PIVOT CTR

61282-48H00

$11.58

8

BOLT (6X17.8)

09111-06072

$2.03

9

NUT

09159-14019

$11.61

10

WASHER (14.5X29X2.3)

09160-14067

Unavailable

11

WASHER (14X34X1)

09160-14068

Unavailable

12

CASE,CHAIN

61310-20K00

$27.58

13

BOLT (6X16)

09111-06065

$3.05

14

SCREW, UPPER This part replaces 09139-06165.

09139-06168

$2.62

15

ADJUSTER,CHAIN

61410-48H00

$5.22

16

PLATE,CHAIN ADJUSTER GUIDE

61421-48H10

$4.52

17

NUT

08319-3108A

$2.32

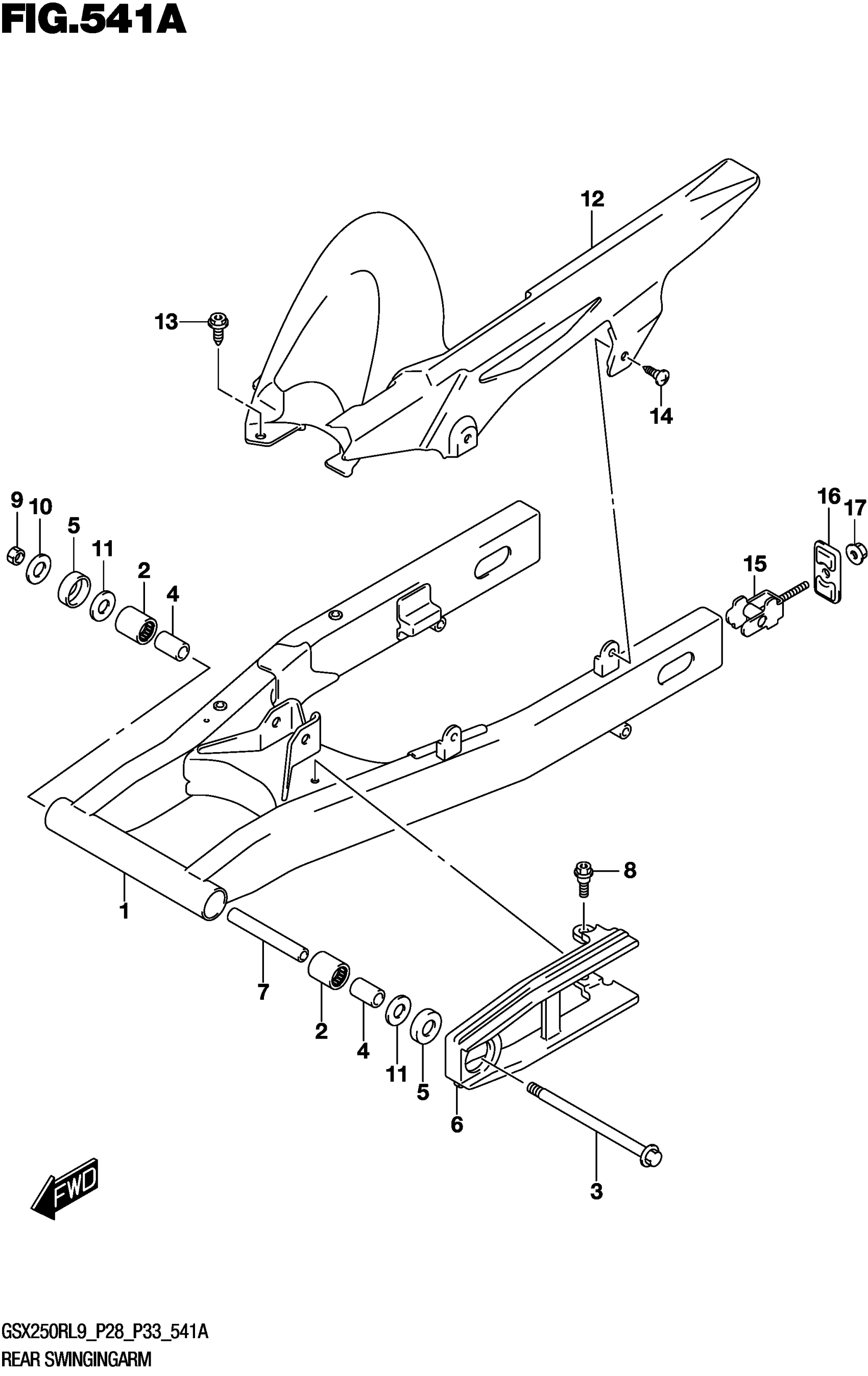

Suzuki GSX250RL9 (2019) REAR SWINGINGARM Diagram
