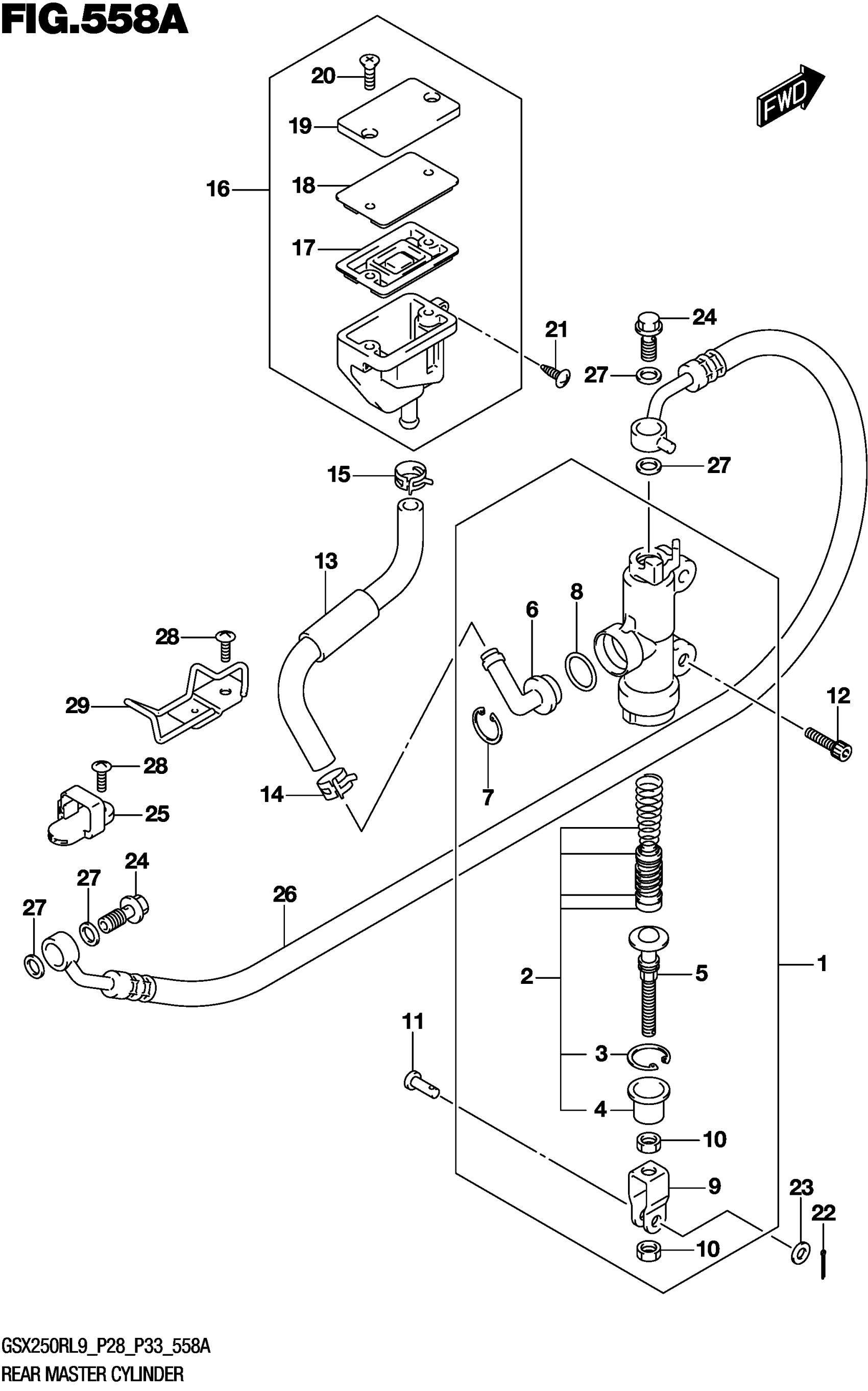

Suzuki GSX250RL9 (2019) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY,REAR MASTER

69600-20K00

$162.18

2

.PISTON/CUP SET

69600-40820

$97.85

3

.CIRCLIP

69665-47H00

$5.02

4

.BOOT

69691-04A00

$5.17

5

.ROD,PUSH

69670-48H10

$71.98

6

.CONNECTOR

69672-00B20

$7.01

7

.CIRCLIP

69674-00B20

$3.97

8

.O-RING

69686-34200

$2.93

9

.YOKE

69692-44H00

$16.87

10

.NUT

69693-05A00

$1.96

11

PIN

69697-48H00

$3.08

12

BOLT

69698-48H00

Unavailable

13

HOSE,RR RESERVOIR TANK

69730-20K00

$48.77

14

CLIP,RR RSVR TANK HOSE LWR

69735-48H00

Unavailable

15

CLIP,RR RSVR TANK HOSE UPR

69735-48H10

Unavailable

16

TANK ASSY,REAR RESERVOIR

69740-48H50

$63.30

17

.DIAPHRAGM

59667-48H00

$11.48

18

.PLATE, DIAPHRAGM

59668-48H00

$11.78

19

.CAP

59669-48H50

$41.12

20

.SCREW

69689-48H10

$2.42

21

BOLT

01547-0616A

$2.03

22

PIN

04111-2015A

$1.49

23

WASHER

08322-0106A

$1.84

24

BOLT,BRAKE FLUID

59492-48H00

Unavailable

25

GUIDE,RR BRAKE HOSE

61196-48H00

$3.65

26

HOSE, REAR BRAKE

69480-20K00

Unavailable

27

WASHER,BRAKE FLUID (10X15X1.5

59464-48H00

$2.60

28

SCREW

02142-0616A

$1.49

29

GUIDE,REAR BRAKE HOSE

69260-20K00

$7.75
