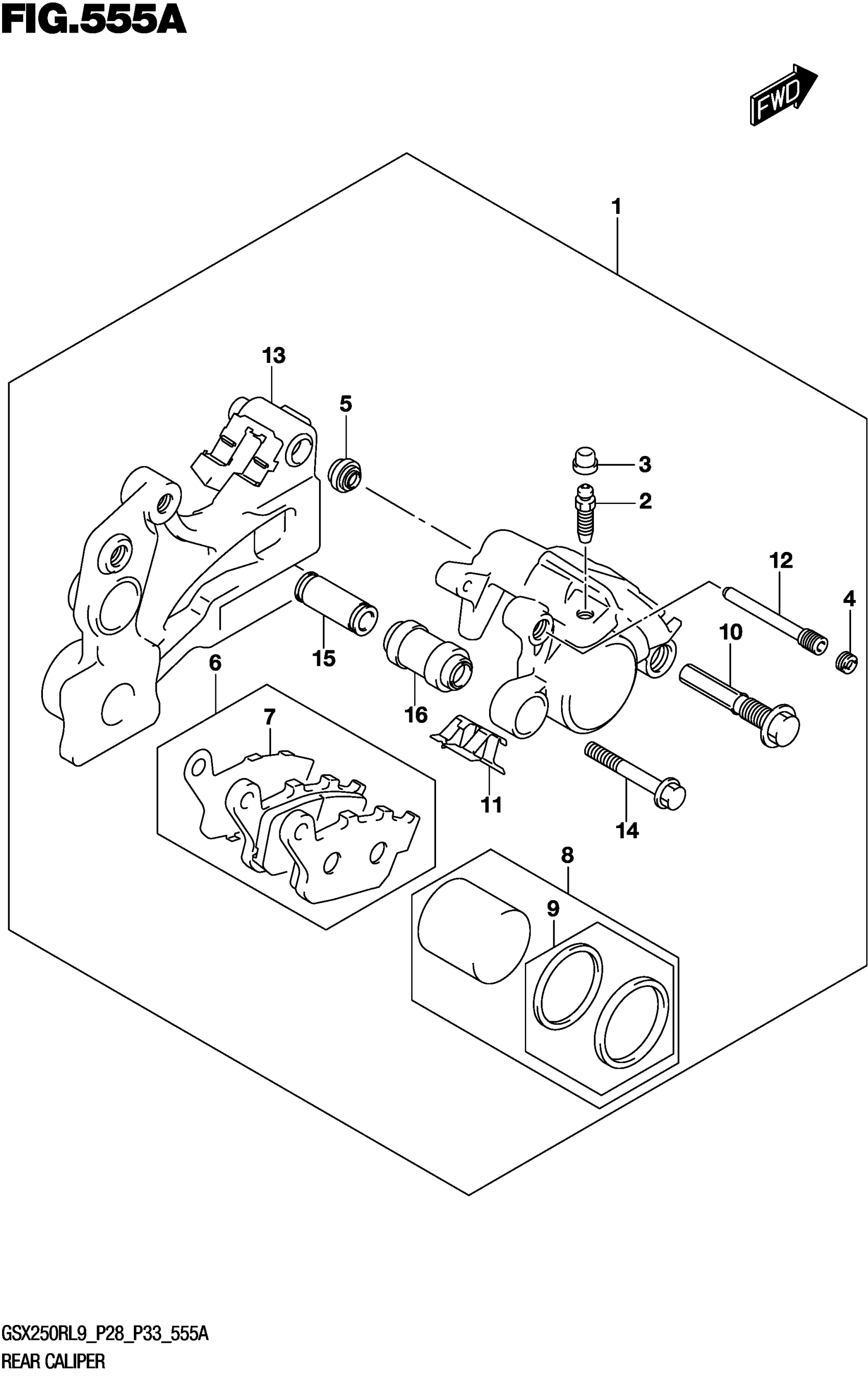

Suzuki GSX250RL9 (2019) REAR CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, REAR

69100-48H20

$483.42

2

.BLEEDER

59121-01A00

$8.73

3

.CAP,BLEEDER

59122-46H00

$4.43

4

.PLUG,PIN

59146-21E10

$6.15

5

.BOOT

59303-14500

$5.52

6

.PAD & SHIM SET

69100-48830

$107.82

7

..SHIM

69134-20K00

$42.60

8

.PISTON SET

69100-48840

Unavailable

9

..SEAL SET,PISTON

69100-13820

$8.52

10

.BOLT

69105-04F00

$14.08

11

.SPRING,PAD

69115-06G00

$13.50

12

.PIN,PAD

69141-40F00

$29.48

13

.BRACKET

69150-48H10

$123.03

14

.BOLT

69182-04F00

$9.07

15

.SLEEVE

69185-04F00

$18.50

16

.BOOT,SLEEVE

69186-04F00

$13.22
