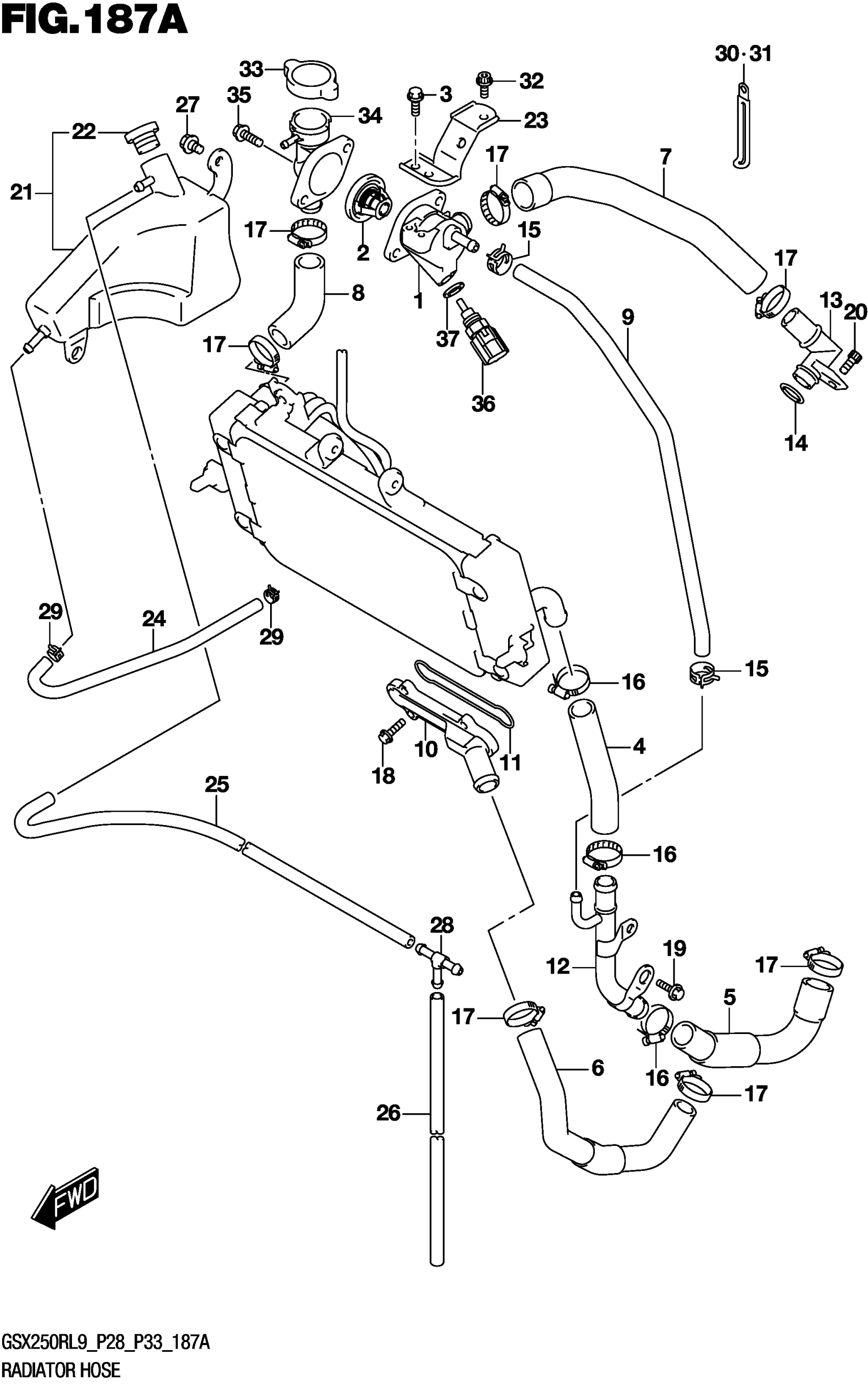

Suzuki GSX250RL9 (2019) RADIATOR HOSE Diagram

#

Description
Price

1

CONNECTOR,THERMOSTAT INLET

17662-48H10

$27.40

2

THERMOSTAT, WATER

17670-48H10

$37.57

3

BOLT

01550-0616A

$1.97

4

HOSE,RADIATOR OUTLET

17851-48H00

$7.93

5

HOSE,WATER PUMP INLET

17852-48H00

$11.10

6

HOSE, WATER PUMP OUTLET

17853-48H10

$22.75

7

HOSE,THERMOSTAT CONNECTOR

17855-48H00

$14.67

8

HOSE,RADIATOR INLET

17856-48H20

$7.08

9

HOSE,WATER BYPASS

17857-48H10

$15.47

10

CONNECTOR,CYLINDER WATER INLE

17861-48H00

Unavailable

11

O-RING

17863-48H00

Unavailable

12

PIPE,WATER PUMP

17870-48H10

$27.85

13-1

PIPE,CYL HEAD OUTLET

17880-48H00

Unavailable

13-2

PIPE,CYL HEAD OUTLET

17880-48H10

$17.45

14

O-RING (D:3.2,ID:17.8)

09280-18011

$1.70

15

CLIP

09401-12L02

$2.70

16

CLAMP

09402-27L01

$8.80

17

CLAMP

09402-32L01

$9.03

18

BOLT

01547-0620A

$2.03

19

BOLT

01550-0616A

$1.97

20

BOLT

07130-0612A

$2.50

21

TANK ASSY,RESERVOIR

17910-20K00

$41.73

22

.CAP,RESERVOIR TANK

17932-12C00

$4.48

23

BRACKET,RESERVOIR TANK

17920-48H00

Unavailable

24

HOSE,RESERVOIR TANK INLET | CUT AS REQUIRED

17981-19F00

$14.70

25

HOSE,RSVR TANK OVFL

17981-48H00

$8.68

26

HOSE,FUEL TANK WATER DRAIN

17985-48H10

Unavailable

27

BOLT (6X12)

09111-06085

$4.54

28

3 WAY,FUEL TANK WATER DRAIN

44438-48H10

Unavailable

29

CLIP

09401-08L01

$2.07

30

CLAMP This part replaces 09404-06206.

09404-06039

$1.74

31

CLAMP (L:80)

09404-06208

Unavailable

32

BOLT

07120-0612A

$2.50

33

CAP,RADIATOR (1.1)

17730-48H00

$16.88

34

CONDUCTION,RADIATOR

17791-48H10

$15.47

35

BOLT (6X20)

01550-0620A

$1.97

36

SENSOR,TEMP

13650-49X00

$90.19

37

GASKET,TEMP SENSOR (12X17X1)

13651-48H00

$3.73
