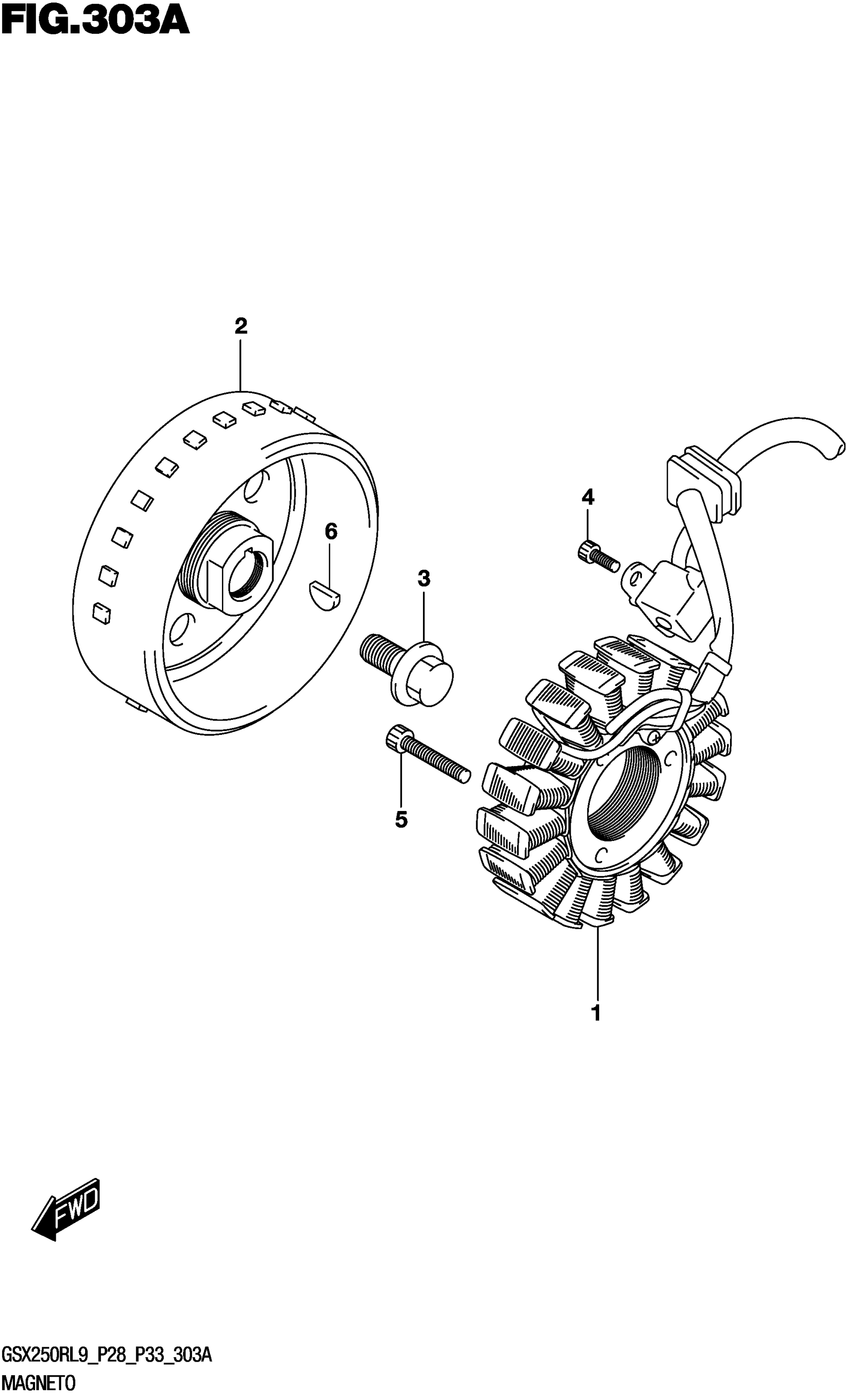

Suzuki GSX250RL9 (2019) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY,MAG This part replaces 32101-20K00.

32101-20K01

$230.12

2

ROTOR ASSY

32102-48H00

$215.12

3

BOLT,MAGNETO ROTOR

32491-48H00

$5.80

4

BOLT

07130-0512A

$2.19

5

BOLT

07130-0630A

$3.72

6

KEY

08341-31039

$1.89
