2019 Suzuki GSX250RL9 Handle Lever Diagram

← All diagrams

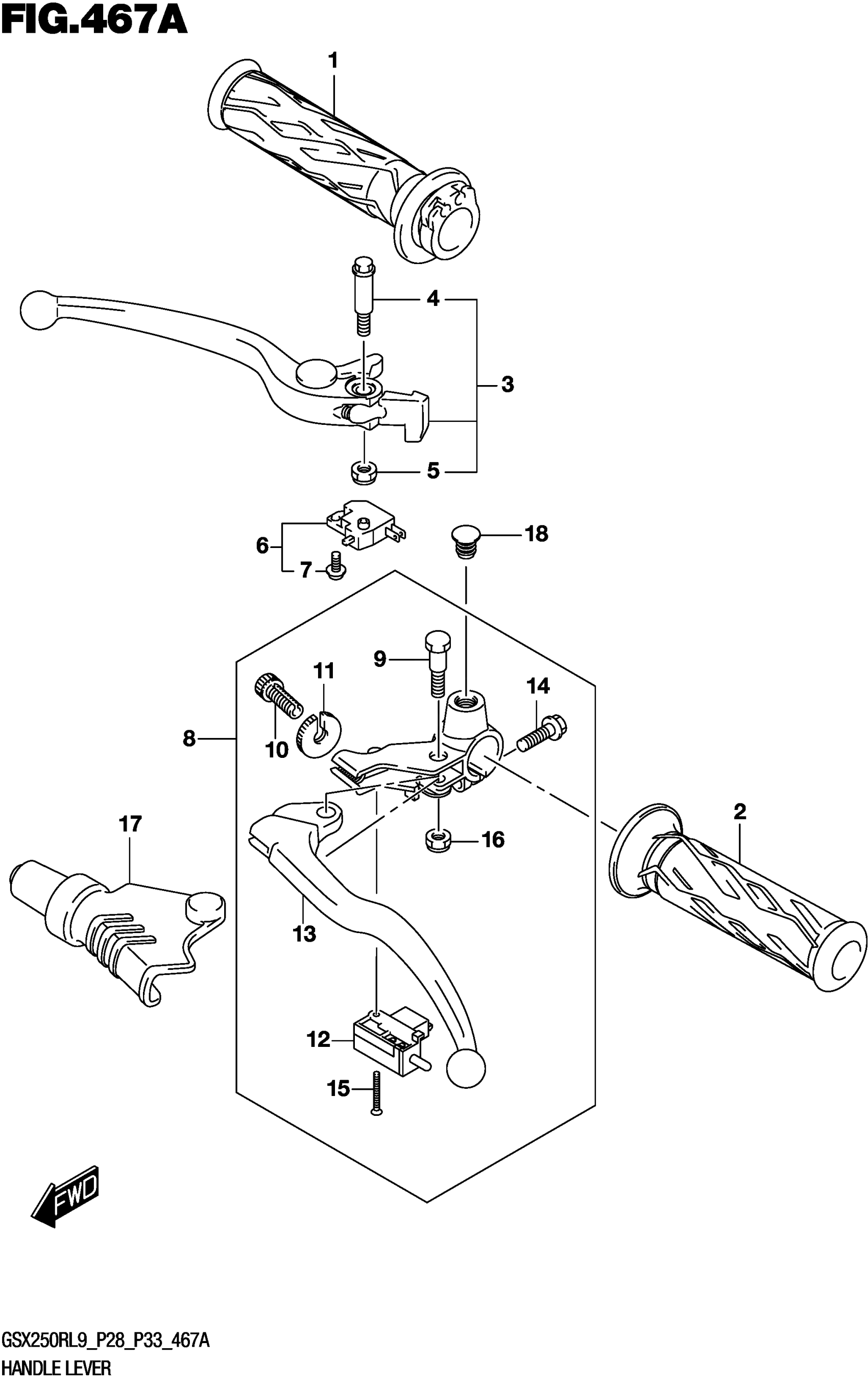

Find the part on the Handle Lever diagram for your 2019 Suzuki GSX250RL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki GSX250RL9 Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$7.23

In stock

2

1

$6.03

In stock

3

LEVER ASSY,BRAKE

57300-48H01

1

$79.60

In stock

4

.BOLT,LEVER PIVOT

57431-17H02

1
Out of stock

5

.NUT

08319-2106A

1
Out of stock

6

SWITCH ASSY,FR BRAKE This part replaces 57460-14J01.

57460-14J02

1
Out of stock

7

.SCREW,WITH WASHER (4X12)

57465-17C00

1
Out of stock

8

LEVER ASSY,CLUTCH

57500-48H01

1

$55.23

In stock

9

.BOLT,LEVER SET

57431-48H20

1

$5.42

In stock

10

.ADJUSTER,WIRE

57441-48H00

1

$16.81

In stock

11

.NUT,LOCK

57422-48H00

1

$4.47

In stock

12

.SWITCH ASSY,CLUTCH

57560-48H00

1

$24.80

In stock

13

.LEVER,CLUTCH

57621-48H01

1

$38.18

In stock

14

..BOLT

01547-0620B

1
Out of stock

15

.SCREW

02122-0320A

1

$2.33

In stock

16

.NUT

08319-2106A

1
Out of stock

17

1

$3.67

In stock

18

1

$6.60

In stock
