2019 Suzuki GSX250RL9 Front Fork Damper Diagram

← All diagrams

Find the part on the Front Fork Damper diagram for your 2019 Suzuki GSX250RL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

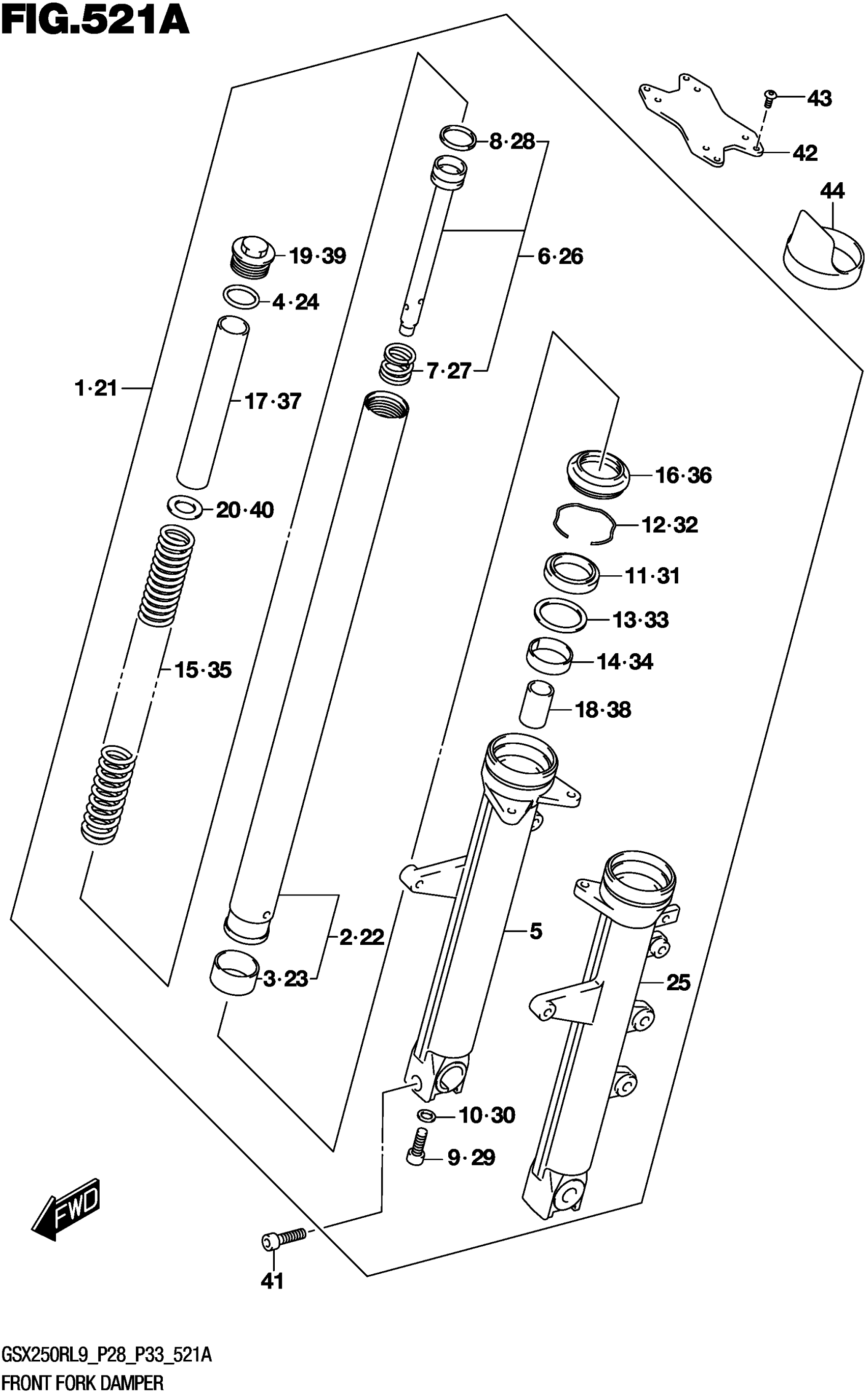

2019 Suzuki GSX250RL9 Front Fork Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY,FRONT FORK RH

51103-20K00

1
Out of stock

2

.TUBE,INNER

51110-20K00

1
Out of stock

3

..PISTON

51121-01D00

1
Out of stock

4

.O-RING

51117-38260

1
Out of stock

5

.TUBE,OUTER RH

51130-20K00

1
Out of stock

6

.CYLINDER

51146-20K00

1
Out of stock

7

..SPRING,REBOUND

51177-48H00

1
Out of stock

8

..RING

51196-16730

1
Out of stock

9

.BOLT

51147-05H00

1
Out of stock

10

.GASKET

51148-41310

1
Out of stock

11

.SEAL,OIL

51153-26F00

1
Out of stock

12

.RING,SNAP

51156-20K00

1
Out of stock

13

.WASHER

51158-48H00

1
Out of stock

14

.METAL,SLIDE

51167-01D00

1
Out of stock

15

.SPRING,MAIN

51171-20K00

1
Out of stock

16

.SEAL,DUST

51173-48H00

1
Out of stock

17

.SPACER

51176-48H10

—
Out of stock

18

.PIECE,OIL LOCK

51195-20K00

1
Out of stock

19

.CAP

51351-48H00

1
Out of stock

20

.WASHER

51356-48H00

1
Out of stock

21

DAMPER ASSY, FRONT FORK LH

51104-20K10

1
Out of stock

22

.TUBE,INNER

51110-20K00

1
Out of stock

23

..PISTON

51121-01D00

1
Out of stock

24

.O-RING

51117-38260

1
Out of stock

25

.TUBE, OUTER

51140-48H70

1
Out of stock

26

.CYLINDER

51146-20K00

1
Out of stock

27

..SPRING,REBOUND

51177-48H00

1
Out of stock

28

..RING

51196-16730

1
Out of stock

29

.BOLT

51147-05H00

1
Out of stock

30

.GASKET

51148-41310

1
Out of stock

31

.SEAL,OIL

51153-26F00

1
Out of stock

32

.RING,SNAP

51156-20K00

1
Out of stock

33

.WASHER

51158-48H00

1
Out of stock

34

.METAL,SLIDE

51167-01D00

1
Out of stock

35

.SPRING,MAIN

51171-20K00

1
Out of stock

36

.SEAL,DUST

51173-48H00

1
Out of stock

37

.SPACER

51176-48H10

—
Out of stock

38

.PIECE,OIL LOCK

51195-20K00

1
Out of stock

39

.CAP

51351-48H00

1
Out of stock

40

.WASHER

51356-48H00

1
Out of stock

41

BOLT

51328-48H00

1
Out of stock

42

STABILIZER,FR

51471-48H00

1
Out of stock

43

SCREW (6X16)

09139-06030

4
Out of stock

44

PROTECTOR

51201-48H00

2
Out of stock
