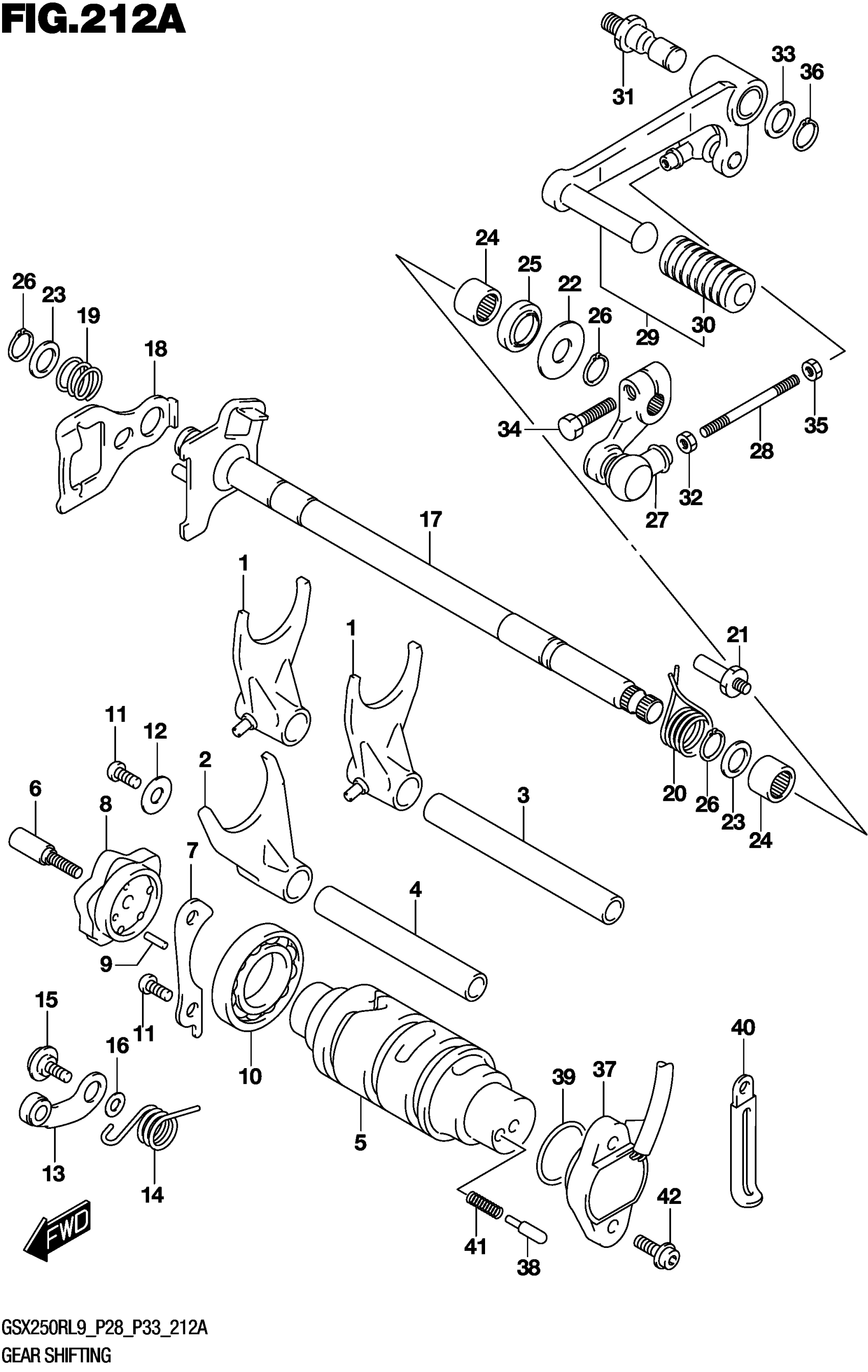

Suzuki GSX250RL9 (2019) GEAR SHIFTING Diagram

#

Description
Price

1

FORK,GEAR SHIFT NO.1

25211-48H00

Unavailable

2

FORK,GEAR SHIFT NO.2

25221-48H00

$10.77

3

SHAFT,GEAR SHIFT FORK NO.1

25411-48H00

$7.34

4

SHAFT,GEAR SHIFT FORK NO.2

25421-48H00

$5.80

5

CAM,GEAR SHIFT

25311-48H00

$37.12

6

STOPPER,SHIFT CAM DRIVE PLATE

25312-48H00

Unavailable

7

RETAINER,SHIFT CAM BRG NO.1

25341-48H00

$2.55

8

PLATE,GEAR SHIFT CAM This part replaces 25380-48H02.

25380-48H10

$10.40

9

PIN (3X9.8)

09261-03002

Unavailable

10

BEARING (25X47X8)

09262-25L01

$9.87

11

SCREW

02112-0612A

$1.49

12

WASHER

08211-06183

Unavailable

13

STOPPER,GEAR SHIFT CAM

25350-48H00

$7.75

14

SPRING,GEAR SHIFT CAM STOPPER

25355-48H00

$2.44

15

BOLT (6X14.5)

09106-06131

$2.38

16

WASHER

08211-06121

$1.54

17

SHAFT,GEAR SHIFT

25510-48H00

Unavailable

18

PLATE,GEAR SHIFT CAM DRIVE

25512-48H10

$7.58

19

SPRING,GEAR SHIFT PLATE RETUR

25515-48H01

$2.81

20

SPRING,SHIFT SHAFT RETURN

25518-48H00

Unavailable

21

STOPPER,GEAR SHIFT ARM

25671-16H10

Unavailable

22

WASHER (14X29X0.8)

09160-14069

Unavailable

23

WASHER (14X22X1)

09160-14070

Unavailable

24

BEARING (14X20X12)

09263-14035

$7.47

25

SEAL,OIL (14X22X7.3)

09283-14L01

$4.62

26

CIRCLIP, SHIFT SHAFT This part replaces 08331-31149.

08331-3114A

$1.91

27

ARM,GEAR SHIFT LINK

25520-48H20

$15.70

28

ROD,GEAR SHIFT LINK

25525-20K00

$3.13

29

LEVER ASSY,GEAR SHIFT

25600-48H20

$86.80

30

.RUBBER,GEAR SHIFT PEDAL

25652-48H00

$8.40

31

SHAFT,GEAR SHIFT LEVER This part replaces 25617-03F20.

25617-03F80

$9.72

32

NUT

08310-0006A

$1.84

33

WASHER (12.5X20X1.0)

09160-12011

$1.54

34

BOLT

01500-0620A

$1.78

35

NUT | LH

09140-06031

$2.15

36

CIRCLIP

08331-3112A

$1.78

37

BASE ASSY,GEAR SHIFT TERM This part replaces 37730-20K00.

37730-20K01

$30.72

38

PIN

09209-05024

$1.97

39

O-RING (D:2.4,ID:26.2)

09280-26005

$2.30

40

CLAMP This part replaces 09404-06206.

09404-06039

$1.74

41

SPRING

09440-04010

$1.54

42

BOLT

07120-0516B

$2.53
