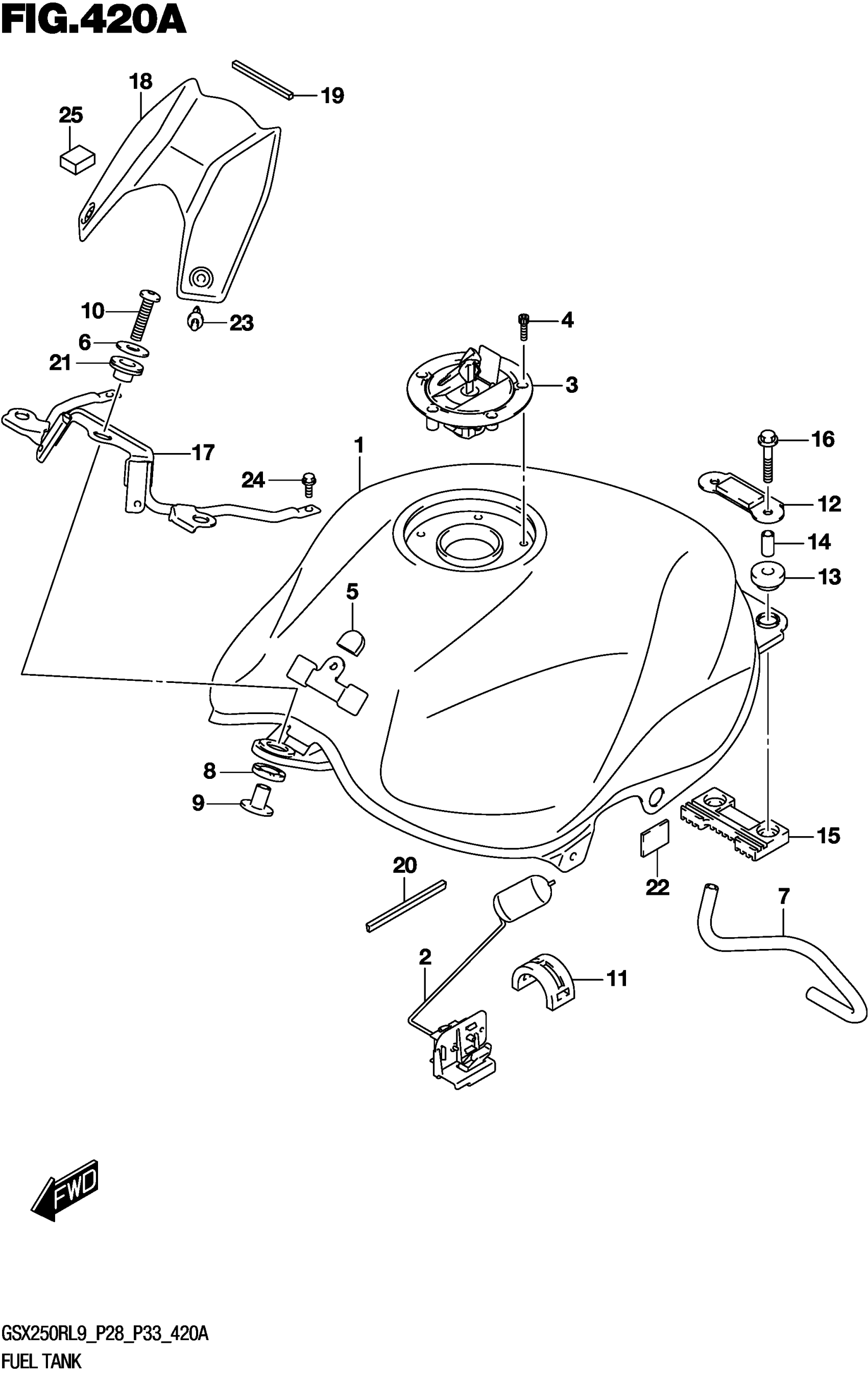

Suzuki GSX250RL9 (2019) FUEL TANK Diagram

#

Description
Price

1-1

TANK ASSY, FUEL (RED) | FOR AY4

44100-20K00-PDD

$780.73

1-2

TANK ASSY, FUEL (WHITE) | FOR QHW

44100-20K00-QHW

$796.67

1-3

TANK ASSY, FUEL (BLUE) | FOR BEE

44100-20K00-W6B

$780.73

1-4

TANK ASSY, FUEL (BLACK) | FOR YAY,4CX

44100-20K00-YAY

$796.67

2

GAUGE ASSY,FUEL LEVEL SENDER

34810-48H01

$81.13

3

CAP SET,FUEL TA This part replaces 44200-16870.

44200-16872

$155.42

4

BOLT (5X20)

44211-48H00

$2.28

5

CUSHION,FUEL TANK COVER

44276-48H00

$2.37

6

WASHER,FUEL TANK FRONT

44262-20K00

$3.08

7

HOSE,FUEL TANK WATER DRAIN

44423-48H10

Unavailable

8

CUSHION, FUEL TANK FRONT LWR

44511-20K00

$4.77

9

SPACER,FUEL TANK FRONT

44512-20K00

$5.33

10

SCREW,FUEL TANK FRONT

44513-48H10

$5.73

11

CUSHION,FUEL TANK SIDE

44541-48H00

$5.63

12

PLATE,FUEL TANK REAR

44540-20K00

$14.80

13

CUSHION,FUEL TANK RR UPR

44543-20K00

$4.77

14

SPACER,FUEL TANK RR

44544-48H00

Unavailable

15

CUSHION, FUEL TANK REAR LOWER

44545-20K00

$8.93

16

BOLT

01550-0635A

$2.32

17

BRACE,FUEL TANK COVER

44520-20K00

$55.83

18

COVER,FUEL TANK CENTER

44191-20K00

$23.53

19

CUSHION,FUEL TANK COVER CTR

44277-20K00

$5.98

20

MOLDING,FUEL TANK This part replaces 68241-20K00.

68241-20K01

$2.28

21

CUSHION, FUEL TANK FRONT UPR

44515-20K00

$4.22

22

FASTENER,FRAME COVER This part replaces 47351-20K00.

47351-20K01

$10.80

23

CLIP

48292-32GH0

$2.58

24

BOLT

01550-0612A

$1.97

25

CUSHION (20X25X11)

56327-48H00

$2.73

26

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | COLOR :

SPECIAL NOTE

Unavailable

26

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | AY4=YAY(BLACK),PDD(RED)

SPECIAL NOTE

Unavailable

26

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | BEE=QHW(WHITE),W6B(BLUE)

SPECIAL NOTE

Unavailable
