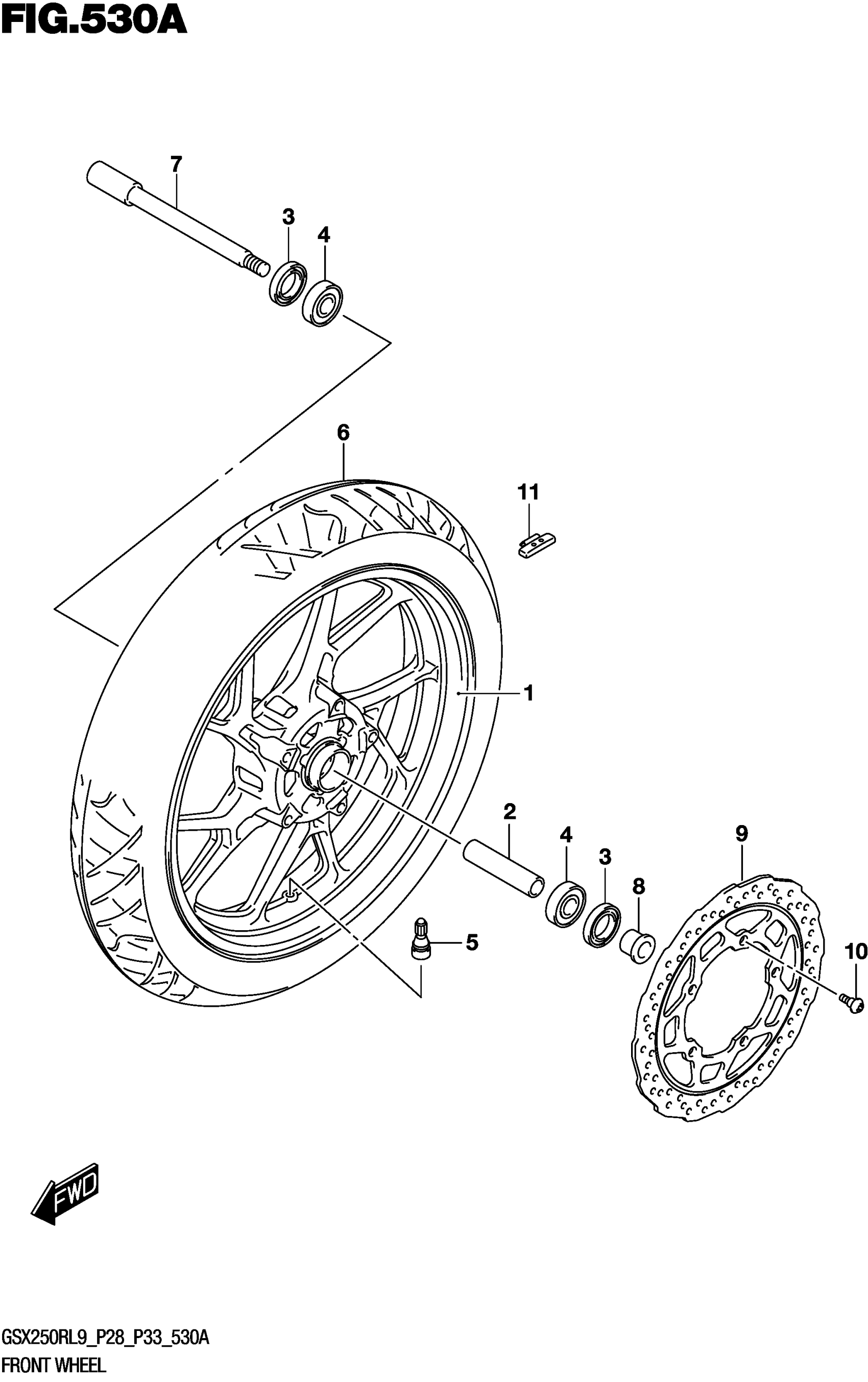

Suzuki GSX250RL9 (2019) FRONT WHEEL Diagram

#

Description
Price

1

WHEEL, FRONT (17M/CXMT3.00)

54111-20K00-YGA

$625.35

1

WHEEL, FRONT (17M/CXMT3.00)

54111-20K00-YGA

$625.35

2

SPACER,FR HUB BEARING

54731-48H00

$8.25

3

SEAL,FR HUB

54841-48H00

$5.78

4

BEARING This part replaces 08123-63027.

08123-6302B

$22.74

5

VALVE ASSY,WHEEL RIM (TR412)

43130-32GH0

Unavailable

6

TIRE,FRONT (110/80-17M/C 57H) | RX-01F This part replaces 55110-48H30.

55110-48H31

$234.58

6

TIRE,FRONT (110/80-17M/C 57H) | IRC This part replaces 55110-48H30.

55110-48H31

$234.58

7

AXLE,FR

54711-48H20

$27.30

8

SPACER,FR AXLE,L

54751-48H00

Unavailable

9

DISC,FRONT BRAKE

59221-20K00

$355.78

10

BOLT,RR BRAKE DISC

69222-48H00

$3.50

11-1

BALANCER,WHEEL (10G)

55411-48H00

$28.83

11-2

BALANCER,WHEEL (20G)

55412-48H00

$26.38

11-3

BALANCER,WHEEL (30G)

55413-48H00

$28.83
