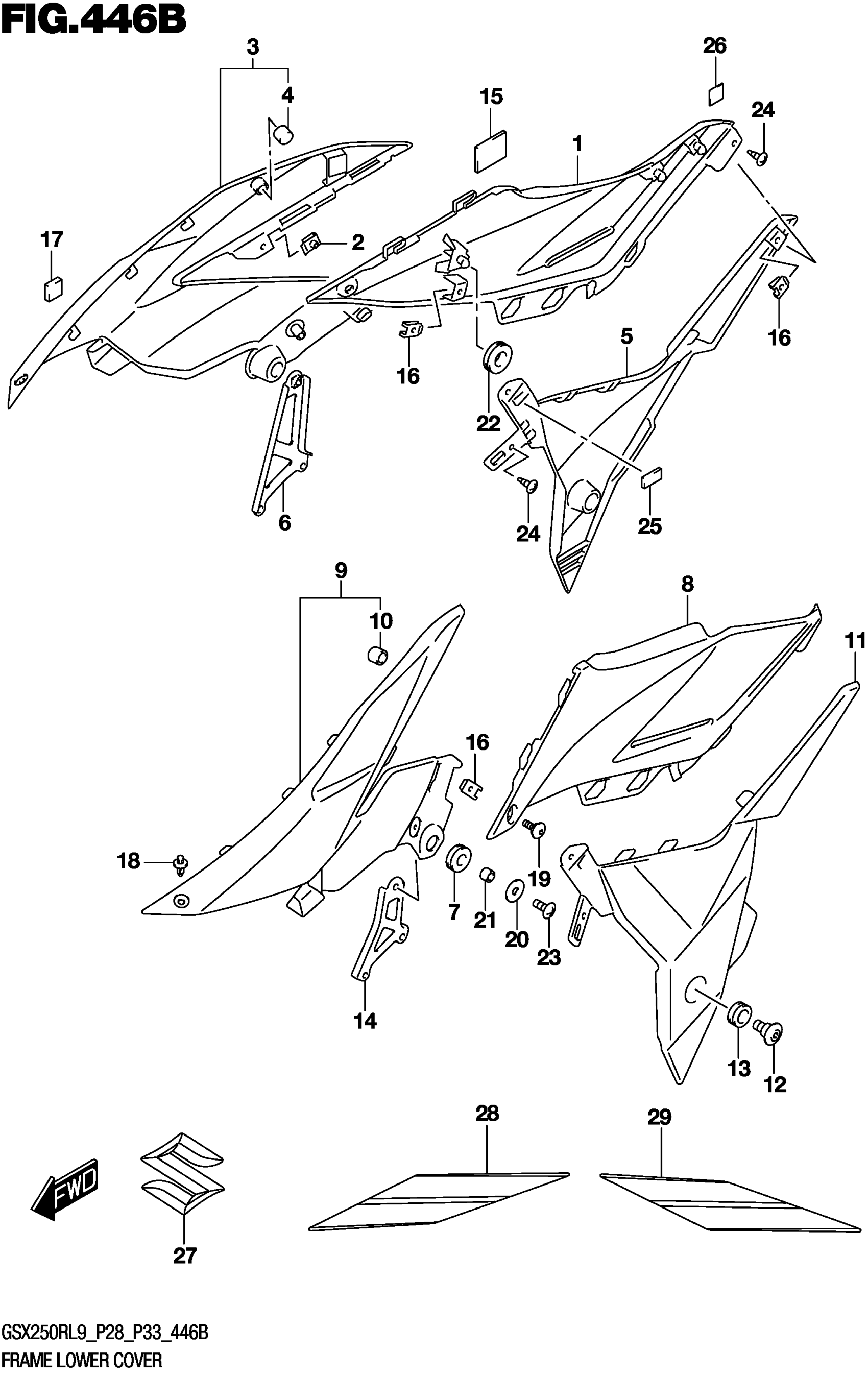

Suzuki GSX250RL9 (2019) FRAME LOWER COVER (GSX250RL9 P33) Diagram

#

Description
Price

1-1

COVER, FRAME SIDE RH (WHITE)

47121-20K00-QHW

$85.07

1-2

COVER, FRAME SIDE RH (BLACK)

47121-20K00-YAY

$85.07

2

NUT,HEADLAMP

35155-48H00

$2.93

3

COVER SET,FRM SIDE FR,R This part replaces 47100-20K00.

47100-20K01

$46.35

4

.CUSHION

47112-21K00

$1.75

5

COVER,FRAME SIDE LOWER,R

47123-20K00

$58.07

6

BRACKET,FRAME COVER,R

47130-20K00

$18.00

7

CUSHION,FRAME COVER This part replaces 47161-48H00.

47161-48H10

$1.78

8-1

COVER, FRAME SIDE LH (WHITE)

47221-20K00-QHW

$85.07

8-2

COVER, FRAME SIDE LH (BLACK)

47221-20K00-YAY

$72.31

9

COVER SET,FRM SIDE FR,L This part replaces 47200-20K00.

47200-20K01

$46.35

10

.CUSHION

47112-21K00

$1.75

11

COVER,FRAME SIDE LOWER,L

47223-20K00

$58.07

12

BOLT This part replaces 47225-20K00.

47225-20K01

$3.93

13

CUSHION,FRAME COVER LOWER

47226-20K00

$3.08

14

BRACKET,FRAME COVER,L

47230-20K00

$12.97

15

FASTENER,FRAME COVER This part replaces 47351-20K00.

47351-20K01

$10.80

16

NUT

47399-48H00

$2.38

17

CUSHION,FRAME SIDE FRONT

47814-20K00

$3.08

18

CLIP

48292-32GH0

$2.58

19

SCREW (5X13)

94492-20K00

$2.37

20

WASHER (6.5X20X1.2)

09160-06077

$1.91

21

SPACER (6.5X10X7)

09180-06283

$1.91

22

CUSHION (8x26x7)

09320-08018

$3.04

23

SCREW

02142-0616A

$1.49

24

SCREW

03541-0512A

$1.49

25

CUSHION,COVER UPR

47846-48H00

$1.95

26

.CUSHION (15X15X1) This part replaces 94429-13E00.

94429-20K00

$2.48

27

EMBLEM,S

68111-29J00

$12.17

28-1

TAPE, FRAME COVER SIDE, RH | FOR 4CX

68131-20K00-BFL

$8.13

28-2

TAPE, FRAME COVER SIDE, RH | FOR BEE

68131-20K00-BFM

$8.13

28-3

TAPE, FRAME COVER SIDE, RH | FOR AY4

68131-20K00-BFN

$8.13

29-1

TAPE, FRAME COVER SIDE, LH | FOR 4CX

68141-20K00-BFL

$8.13

29-2

TAPE, FRAME COVER SIDE, LH | FOR BEE

68141-20K00-BFM

$8.13

29-3

TAPE, FRAME COVER SIDE, LH | FOR AY4

68141-20K00-BFN

$8.13
