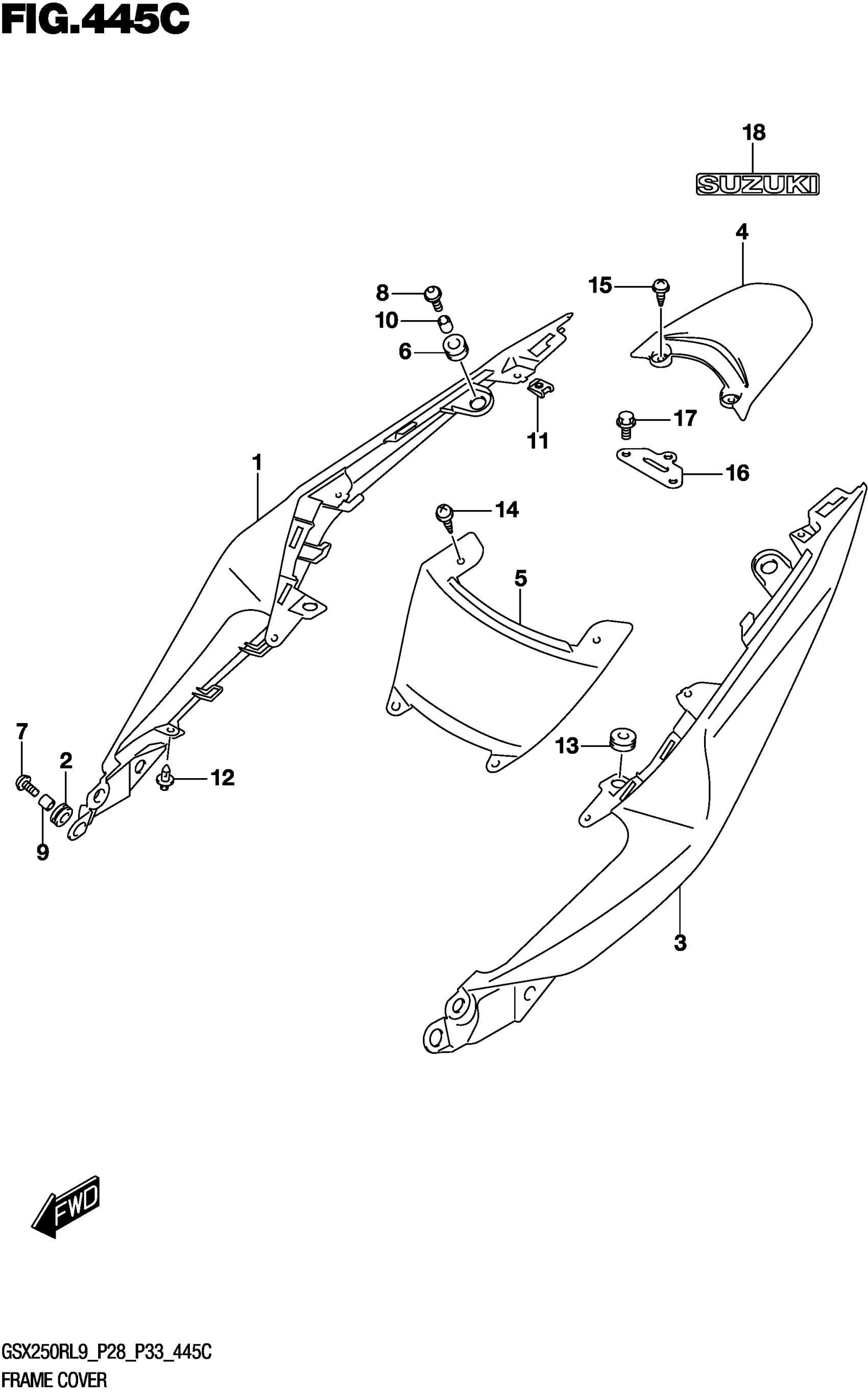

Suzuki GSX250RL9 (2019) FRAME COVER (GSX250RL9 P33) (FOR YAY,QHW) Diagram

Description

Price

1-1

COVER, FRAME RH (WHITE)

47111-20K01-QHW

$60.85

1-2

COVER, FRAME RH (BLACK)

47111-20K01-YAY

$114.85

CUSHION,FRAME COVER This part replaces 47161-48H00.

47161-48H10

$2.02

3-1

COVER, FRAME LH (WHITE)

47211-20K01-QHW

$110.63

3-2

COVER, FRAME LH (BLACK)

47211-20K01-YAY

$112.75

COVER,FRAME CENTER

47311-20K00

$17.02

COVER,FRAME CENTER FRONT

47312-20K01

Unavailable

.CUSHION,FRAME COVER,R This part replaces 47321-20K00.

47321-20K01

$2.92

SCREW,FRAME COVER FR

47331-20K00

$2.67

SCREW,FRAME COVER FR

47331-20K00

$2.67

SPACER,FRAME COVER FR

47332-20K00

$2.73

SPACER,FRAME COVER FR

47332-20K00

$2.73

NUT

47399-48H00

$2.68

CLIP

48292-32GH0

$2.93

CUSHION (8x26x7)

09320-08018

$2.82

SCREW

03541-0512A

$1.41

SCREW

03541-0512B

$1.82

BRACKET,FRAME COVER CTR

47810-20K00

$9.37

BOLT

01550-0612B

$2.44

.EMBLEM,SUZUKI (SILVER) This part replaces 68181-45H00-YD8.

68181-45H10-YD8

$2.45
